Suspension Controls Component Views

Fig 1: Front of the Frame Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper Solenoid - LF Connector
2	Wheel Speed Sensor (WSS) - LF Chassis Connector
3	Wheel Speed Sensor (WSS) - LF Pigtail Connector
4	Suspension Position Sensor - LF Chassis Connector
5	Suspension Position Sensor - LF Pigtail Connector
6	Chassis Harness
7	Suspension Damper Solenoid - RF Connector
8	Wheel Speed Sensor (WSS) - RF Chassis Connector
9	Suspension Position Sensor - RF Chassis Connector
10	Frame

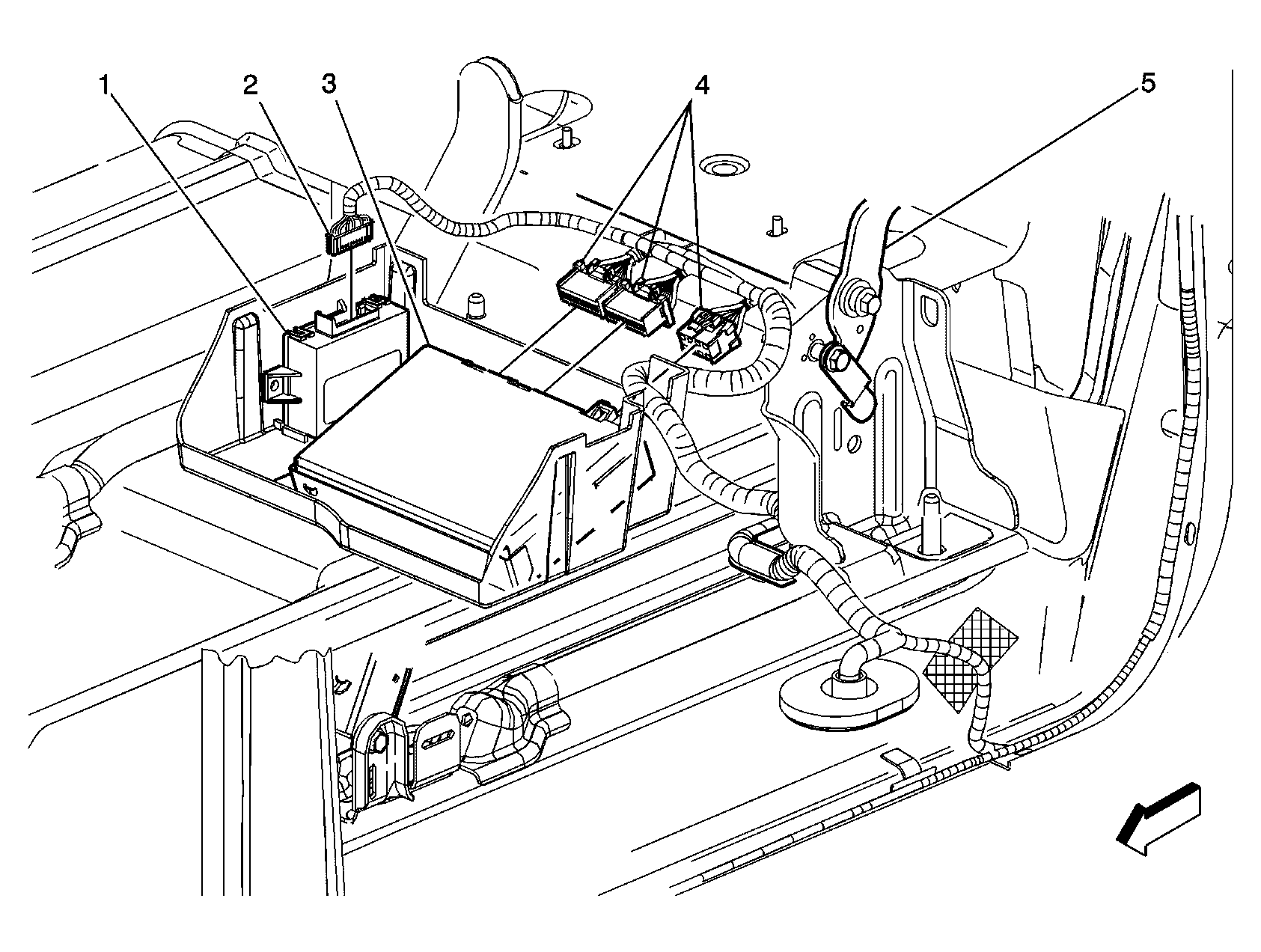

Fig 2: LR of the Passenger Compartment (Escalade EXT) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Object Sensor Control Module
2	Rear Object Sensor Control Module Connector
3	Electronic Suspension Control (ESC) Module
4	Electronic Suspension Control (ESC) Module Connectors
5	LR Passenger Seat Bracket

Fig 3: LR Suspension Component Views (2500 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shock Absorber - LR
2	Suspension Damper Solenoid - LR Connector
3	Frame

Fig 4: LR Suspension Component Views (1500 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - LR
2	Frame
3	Suspension Position Sensor - LR Connector

Fig 5: RR of the Passenger Compartment Component Views (Except Avalanche/Escalade EXT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Inner Panel
2	Body Wiring Harness
3	Electronic Suspension Control (ESC) Module Connector C1
4	Electronic Suspension Control (ESC) Module Connector C2
5	Electronic Suspension Control (ESC) Module Connector C3

Fig 6: RR Suspension Component Views (2500 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Axle
2	Suspension Position Sensor - RR
3	Sensor Arm
4	Suspension Position Sensor - RR Connector

Fig 7: Suspension Position Sensor Component Views - LF (Suburban/Yukon XL)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Frame
2	Suspension Position Sensor - LF Connector
3	Suspension Position Sensor - LF
