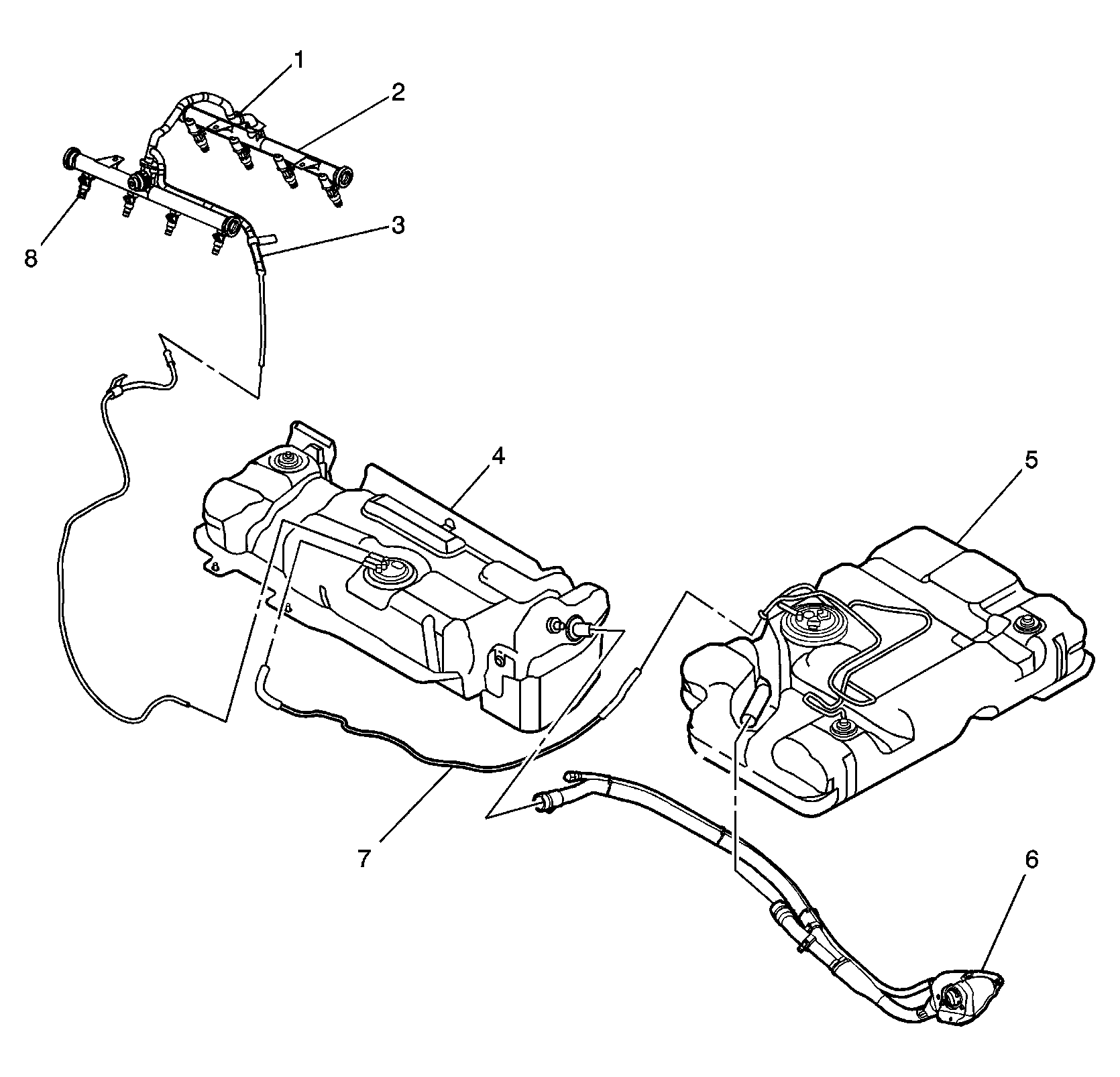

Fuel Hose/Pipes Routing Diagram (Dual Fuel Tank)
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Fuel Pressure Service Connection |
| 2 |
Fuel Injector Rail |
| 3 |
Fuel Rail Feed Pipe |
| 4 |
Front Fuel Tank |
| 5 |
Rear Fuel Tank |
| 6 |
Fuel Filler Hose |
| 7 |
Rear Tank Fuel Hose/Pipe |
| 8 |
Fuel Injector |
