Installation Procedure

WARNING: This page is about a different variant/trim than selected.

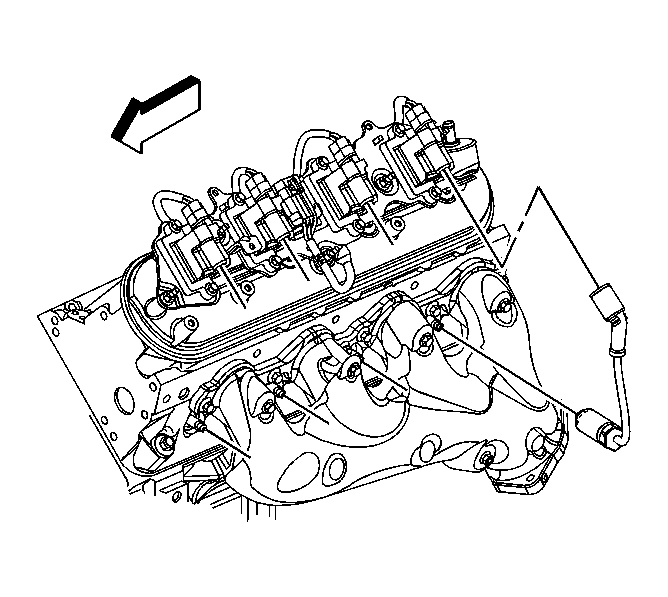

    Fig 1: View Of Spark Plug Wire
    GM1239290Courtesy of GENERAL MOTORS CORP.
  1. Install the spark plug wire to the ignition coil.
  2. Install the spark plug wire to the spark plug.
  3. Inspect the spark plug wire for proper installation:
    1. Push sideways on each boot in order to inspect the seating.
    2. Reinstall any loose boot.
