Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of EVAP Canister (1500 Series - 5.3L (L59) Engine)
    GM855760Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the EVAP canister.
  2. Install the EVAP canister bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  3. Remove the caps from the EVAP pipes.
    4. Fig 2: View Of EVAP Pipe At Canister (1500 Series - 5.3L (L59) Engine)
    GM855755Courtesy of GENERAL MOTORS CORP.
  4. Connect the EVAP pipe to the canister.

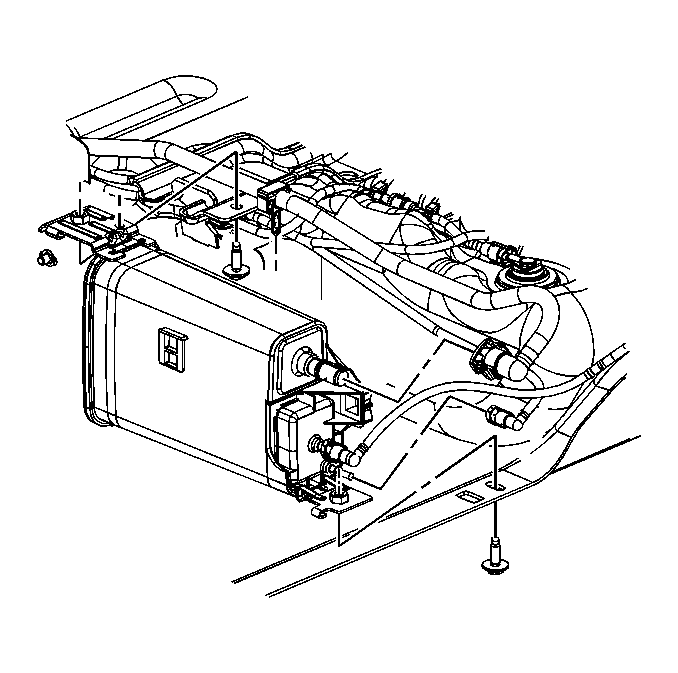

    5. Fig 3: View Of EVAP Canister Vent Pipe & Clip (1500 Series - 5.3L (L59) Engine)
    GM1224296Courtesy of GENERAL MOTORS CORP.
  5. Install the vent pipe clip to the canister bracket.
  6. Connect the EVAP canister vent pipe to the canister.
  7. Lower the vehicle.
