Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Yukon XL and 2004 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .
  2. Disconnect the speed sensor electrical connector (1).

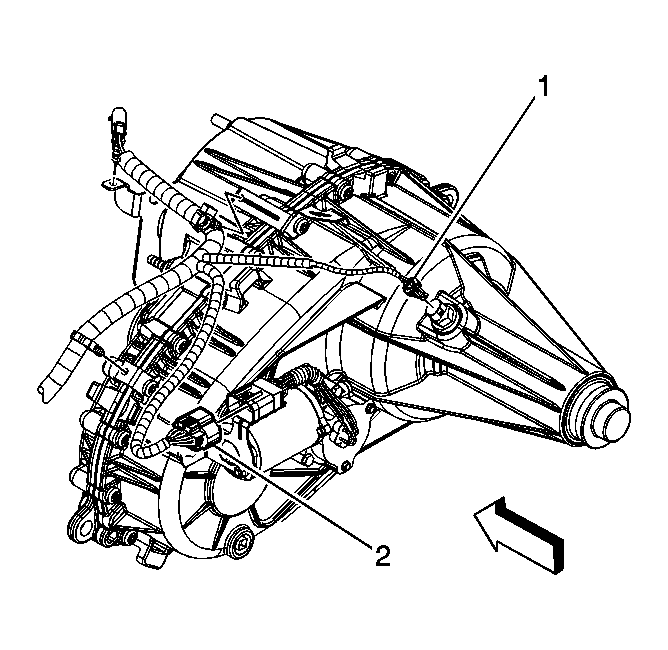

    3. Fig 1: View Of Speed Sensor & Encoder Motor Electrical Connectors
    GM856630Courtesy of GENERAL MOTORS CORP.
  3. Remove the speed sensor and O-ring seal.
    4. Fig 2: View Of Vehicle Speed Sensor (VSS) & O-Ring Seal
    GM819577Courtesy of GENERAL MOTORS CORP.
