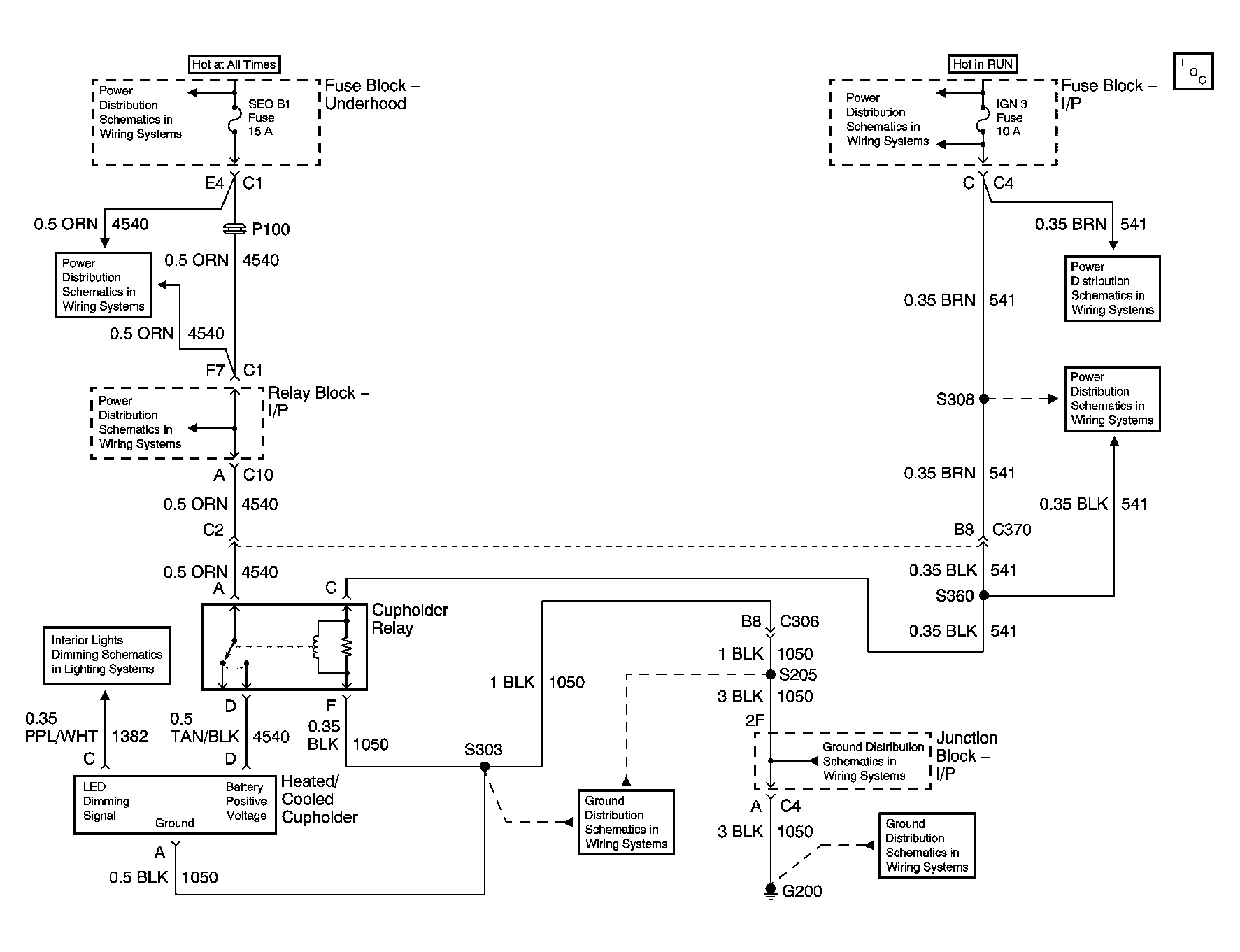

Home >> Chevrolet >> 2004 >> Avalanche 2500 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays, Gauges And Console >> Schematic and Routing Diagrams >> Thermo Cooler/Cupholder Schematics
