Transmission Control Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

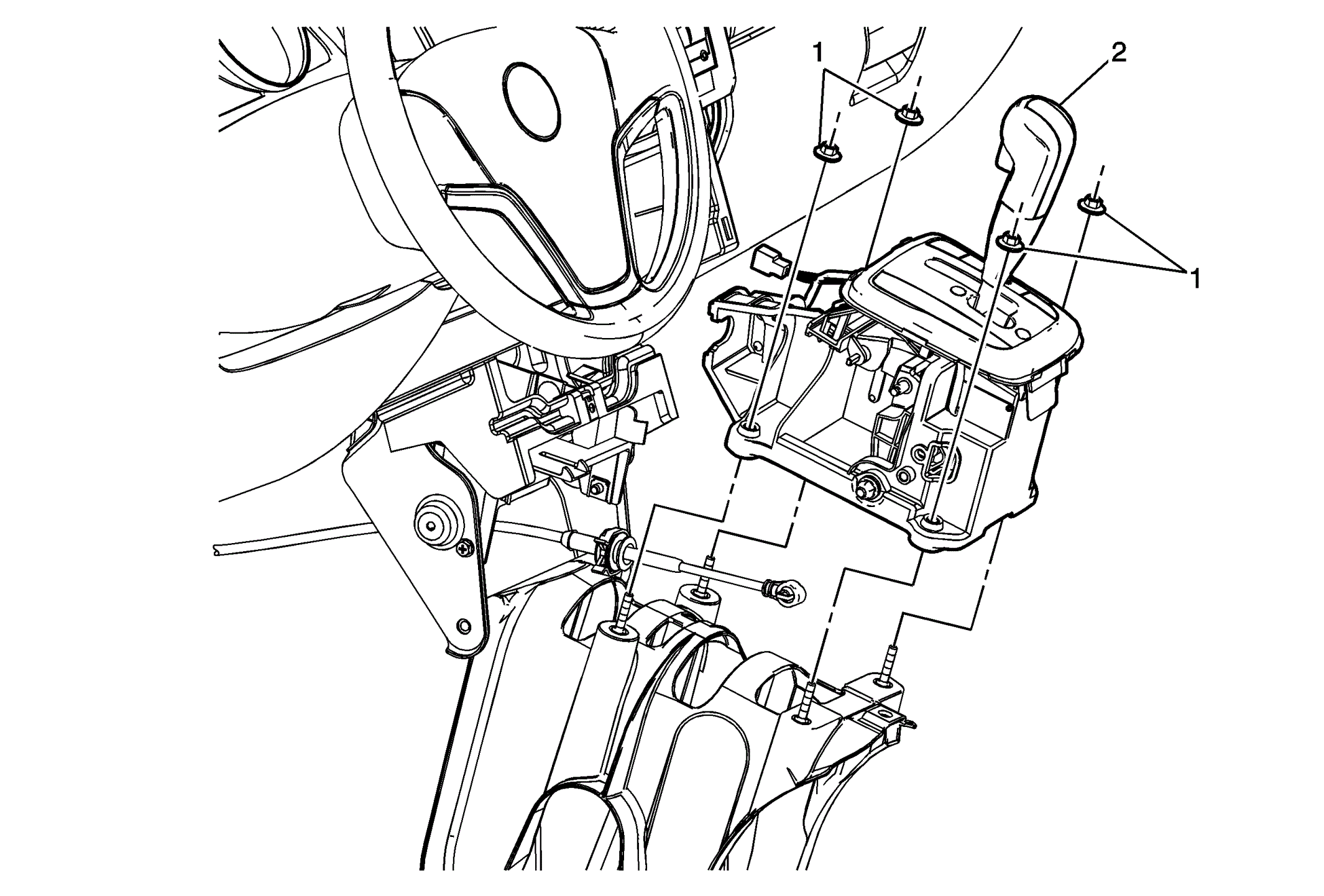

Fig 1: Transmission Control

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement . Disconnect the range select cable from range select lever. Disconnect the range select lever electrical connector.
1	Automatic Transmission Range Select Lever Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Automatic Transmission Range Select Lever

Callout

Component Name

Preliminary Procedures

Remove the front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement .
Disconnect the range select cable from range select lever.
Disconnect the range select lever electrical connector.

Automatic Transmission Range Select Lever Nut (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Automatic Transmission Range Select Lever
