Output Speed Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

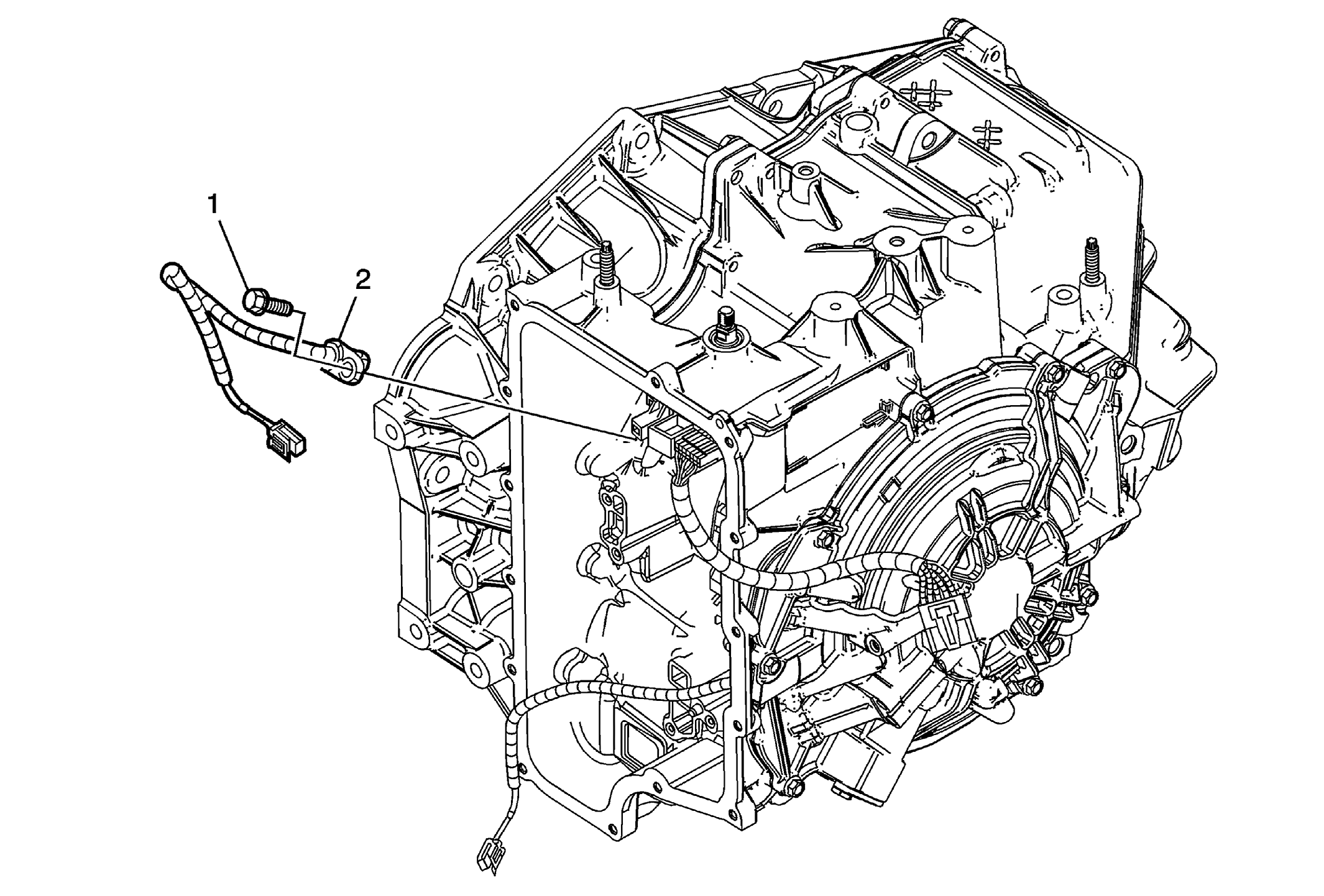

Fig 1: View Of Output Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the control valve lower body and upper body. Refer to Control Valve Lower Body and Upper Body Replacement .
1	Output Speed Sensor Bolt M6 x 25 CAUTION: Refer to Fastener Caution . Tighten: 12 N.m (106 lb in)
2	Output Speed Sensor Procedure: Perform the service fast learn adapt procedure. Refer to Service Fast Learn Adapts . Tip: After an internal transmission repair or internal part replacement the service fast learn adapt procedure should be performed.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the control valve lower body and upper body. Refer to Control Valve Lower Body and Upper Body Replacement .

Output Speed Sensor Bolt M6 x 25

CAUTION: Refer to Fastener Caution .

Tighten: 12 N.m (106 lb in)

Output Speed Sensor
Procedure:
Perform the service fast learn adapt procedure. Refer to Service Fast Learn Adapts .
Tip: After an internal transmission repair or internal part replacement the service fast learn adapt procedure should be performed.
