Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

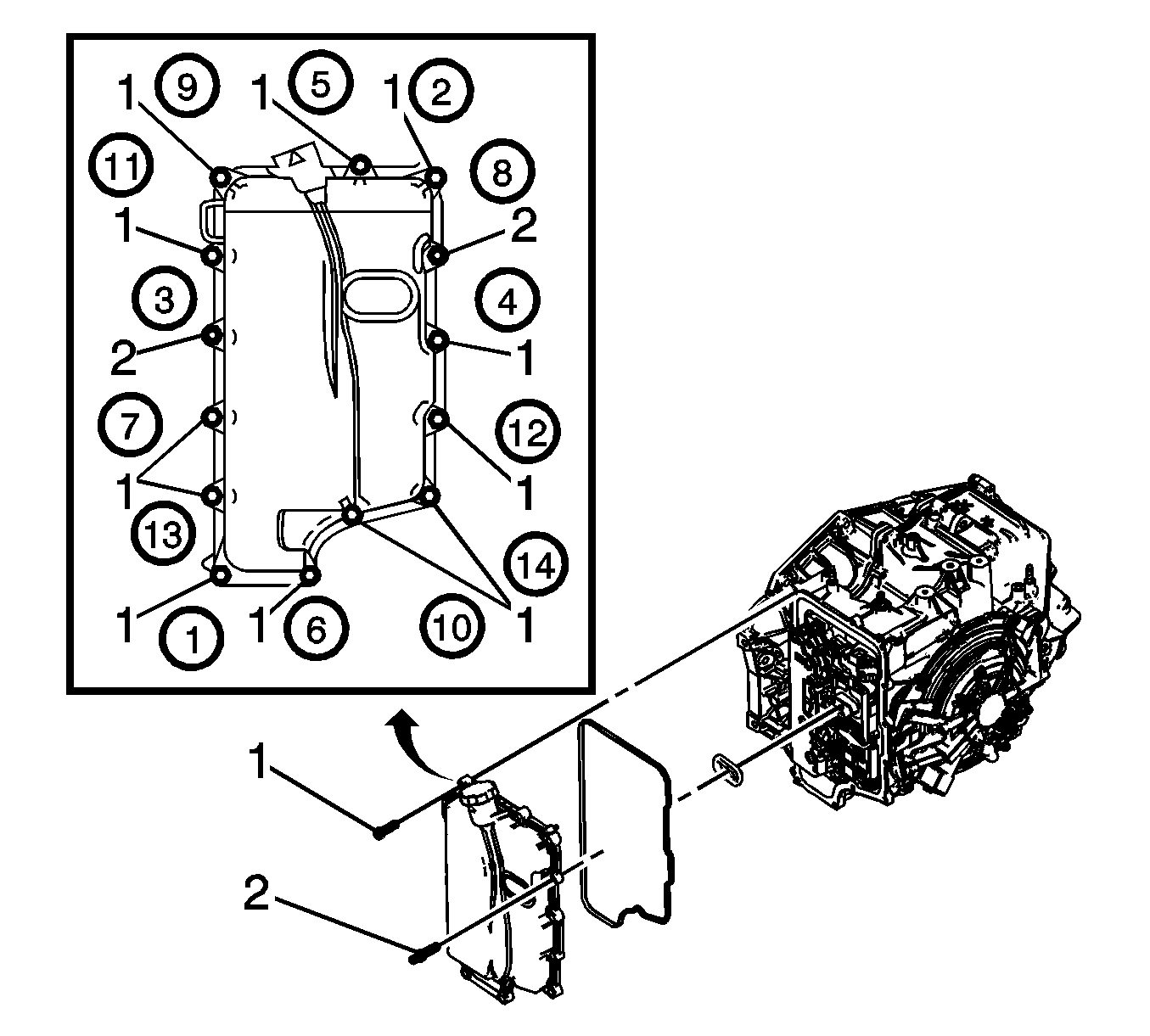

    Fig 1: Identifying Control Valve Body Cover Bolts Torque Sequence
    GM1803481Courtesy of GENERAL MOTORS CORP.
    NOTE: The holes in the control valve body cover wiring connector hole seal must face toward the control solenoid valve assembly. If the holes face toward the valve body cover, there is a potential for a leak around the seal.
  1. Install the control valve body cover wiring connector hole seal.
  2. Install the control valve body cover gasket to the control valve body cover.
  3. Install the control valve body cover.
  4. Lower the transmission and remove the transmission jack.
    5. CAUTION: Refer to Fastener Caution .
    NOTE: Install all control valve body cover bolts and studs by hand then torque all bolts and studs in sequence.
  5. Install the 12 control valve body cover bolts (1) M6 x 30 and tighten the bolts in sequence to 12 N.m (106 lb in).
  6. Install the 2 control valve body cover studs (2) M6 x 30 and tighten the studs in sequence to 12 N.m (106 lb in).

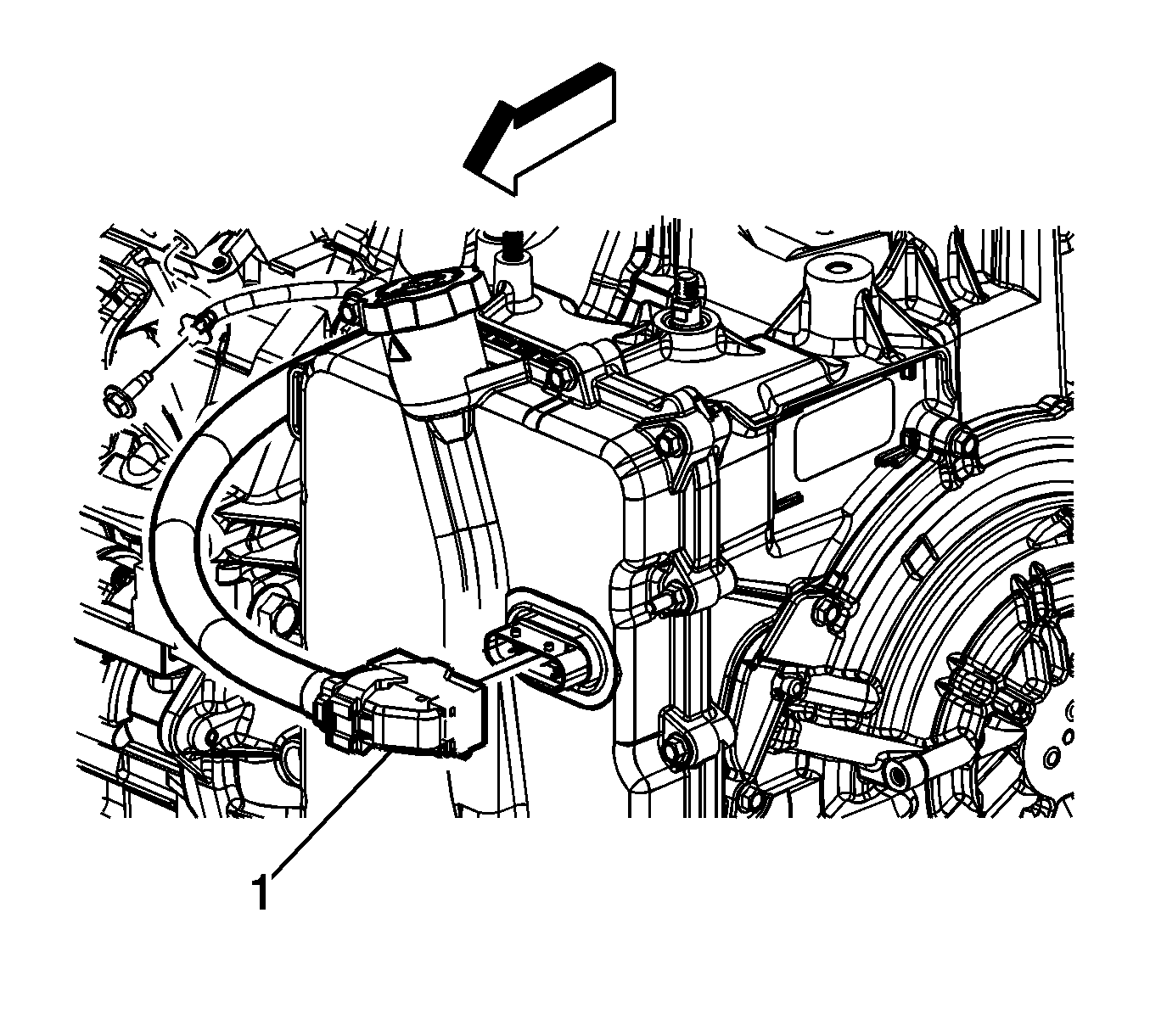

    7. Fig 2: Identifying Control Valve Body Transmission Control Module (TCM) Electrical Connector
    GM1884034Courtesy of GENERAL MOTORS CORP.
  7. Connect the control valve body TCM electrical connector (1).
  8. Install the lower nuts to the left transmission mount. Refer to Transmission Mount Replacement - Left Side .
  9. Install the front transmission mount. Refer to Transmission Front Mount Replacement .
  10. Install the left engine splash shield. Refer to Engine Splash Shield Replacement .
  11. Lower the vehicle.

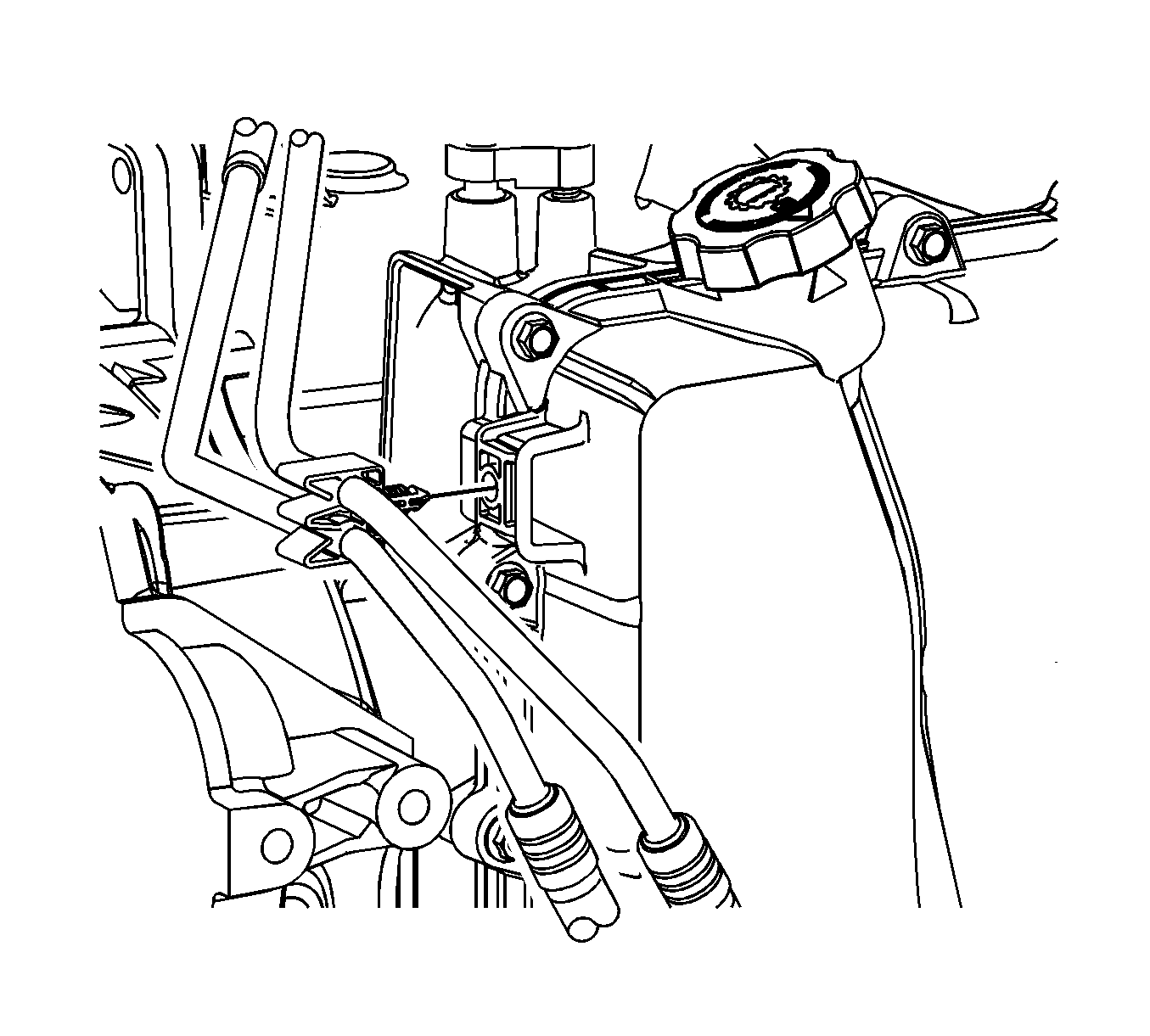

    12. Fig 3: Identifying Oil Cooler Inlet And Outlet Hoses
    GM1832466Courtesy of GENERAL MOTORS CORP.
  12. Install the oil cooler inlet and outlet hoses to the retainer on the control valve body cover.
  13. Install the battery tray. Refer to Battery Tray Replacement (HP7) .
  14. Fill the transmission. Refer to Transmission Fluid Replacement .
  15. Check for leaks.
