Automatic Transmission Control Indicator Replacement (With Traction Control)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

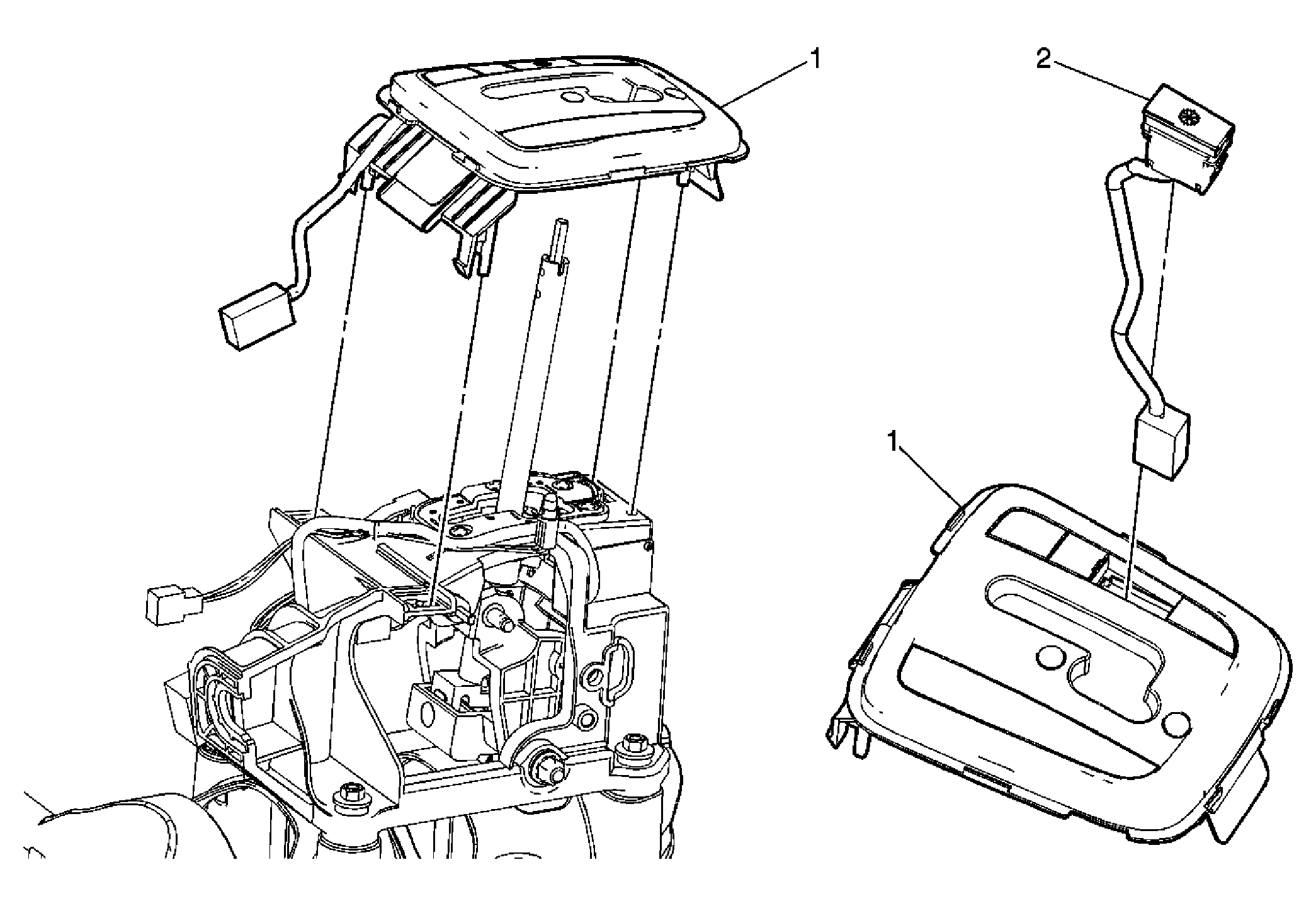

| Callout |
Component Name |
|
Preliminary Procedures
- Apply the parking brake.
- Remove the automatic transmission control lever knob. Refer to Transmission Control Lever Knob Replacement .
- Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement
.
- Remove the control position indicator bulb from the automatic transmisson control indicator.
- Disconnect the traction control switch electrical connector.
|
| 1 |
Automatic Transmisson Control Indicator |
| 2 |
Traction Control Switch |
