Torque Converter Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

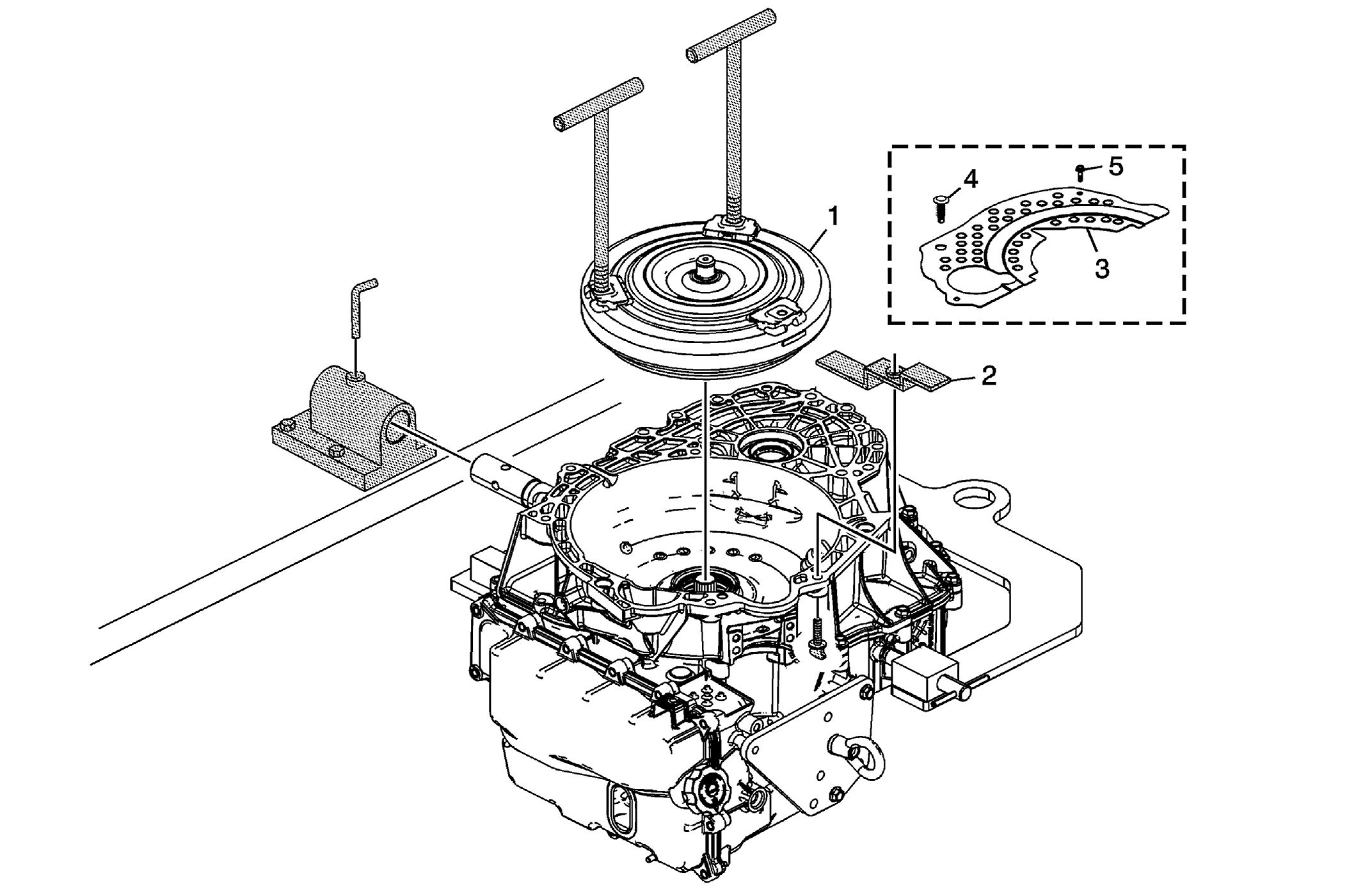

| Callout | Component Name |
|---|---|
| 1 | Torque Converter Assembly
CAUTION:
Lower the torque converter straight down. Failure to lower the torque converter straight down could damage the torque converter clutch lip seal inside the torque converter clutch assembly. Special Tools: J 46409: Torque Converter Lifting Handles For equivalent regional tools, refer to Special Tools . |
| 2 | J 21366:
Converter Holding Strap
WARNING:
The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.
|
| 3 | Dust Cover - Model Dependant |
| 4 | Dust Cover Push Pin - Model Dependant (Qty: 2) |
| 5 | Dust Cover Bolt - Model Dependant
CAUTION:
Refer to Fastener Caution
.
Tighten: 75 N.m (37 lb ft) |
