Output Speed Sensor and Valve Body Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

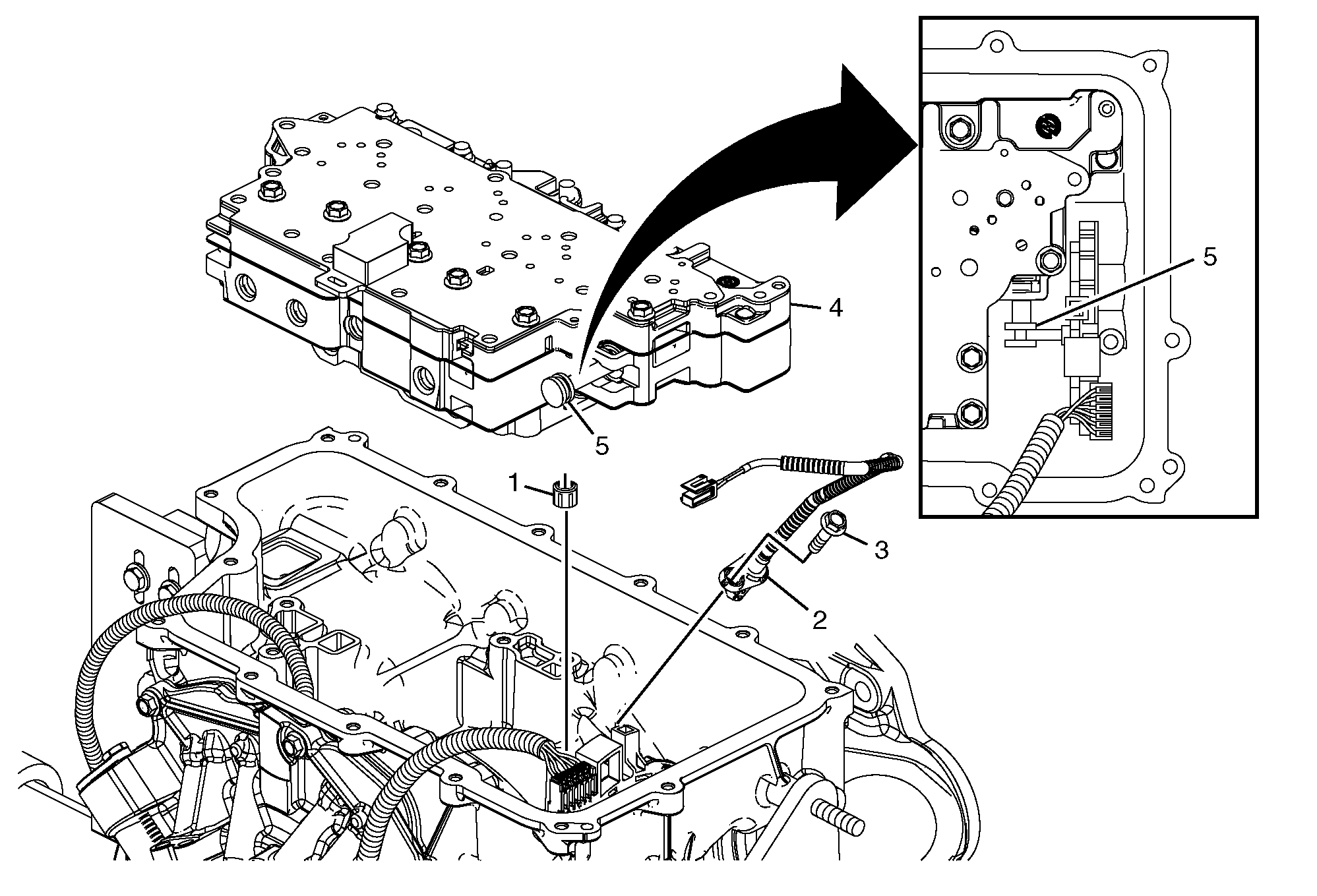

Fig 1: View Of Output Speed Sensor & Valve Body

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	1-2-3-4 Clutch Fluid Passage Seal
2	A/Trans Output Speed Sensor Assembly
3	A/Trans Output Speed Sensor Assembly Bolt M6 x 25 CAUTION: Refer to Fastener Caution . Tighten: 12 N.m (9 lb ft)
4	Control Valve Body Assembly
5	Manual Valve Tip: Align the manual valve to the detent lever assembly. Removing the manual shaft assembly pin will aid in aligning the manual valve to the detent lever. Install the manual shaft pin after the valve body assembly is installed using J 41229: pin installer, if it was not installed previously. Refer to Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal . Special Tools: J 41229: Manual Shaft Pin Installer For equivalent regional tools, refer to Special Tools .
