Headlights/Daytime Running Lights (DRL) Schematics

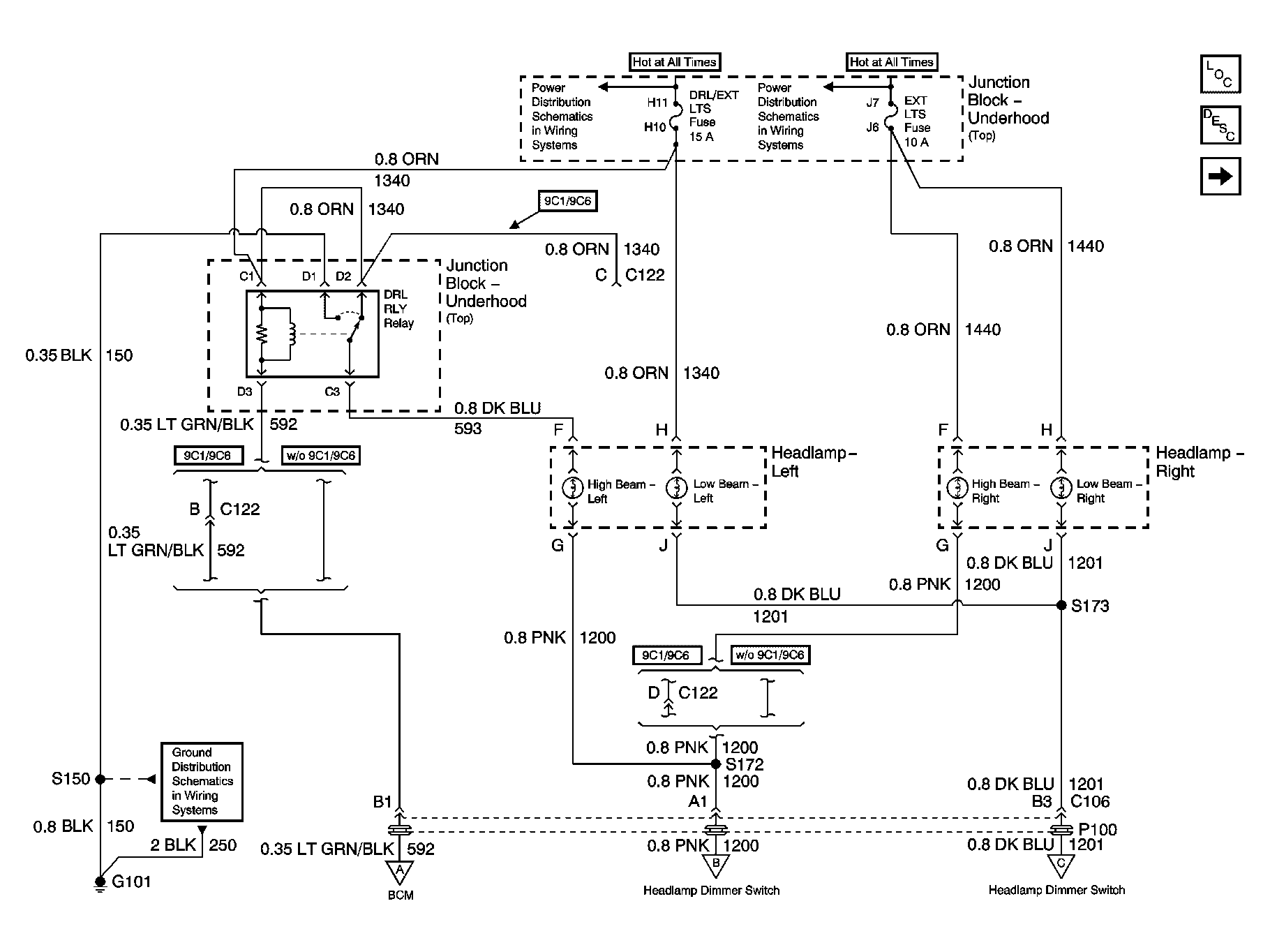

Fig 1: DRL Relay, Headlamps & Power Schematic (w/o 6J7)

Courtesy of GENERAL MOTORS CORP.

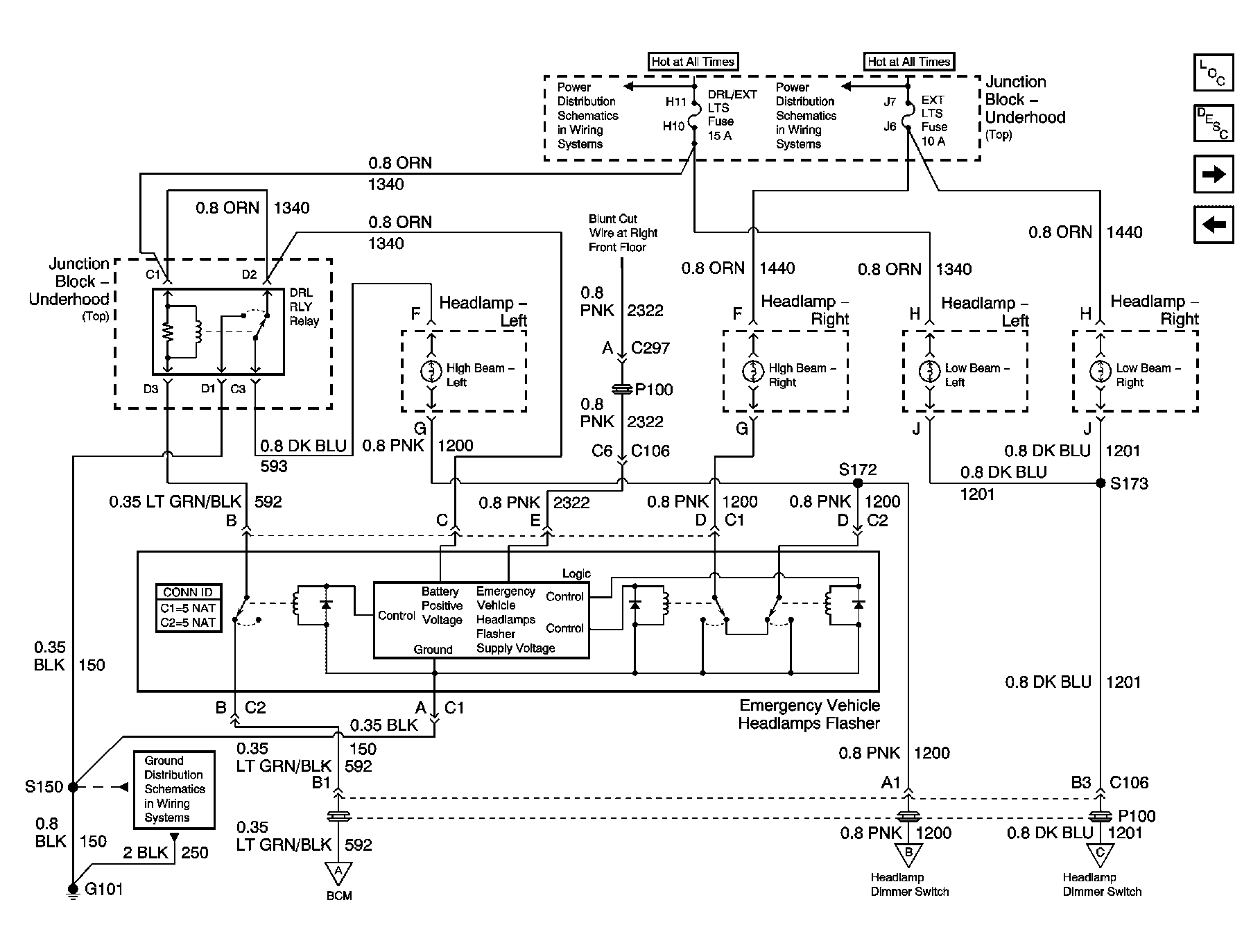

Fig 2: DRL Relay, Flasher, Headlamps & Power Schematic (6J7)

Courtesy of GENERAL MOTORS CORP.

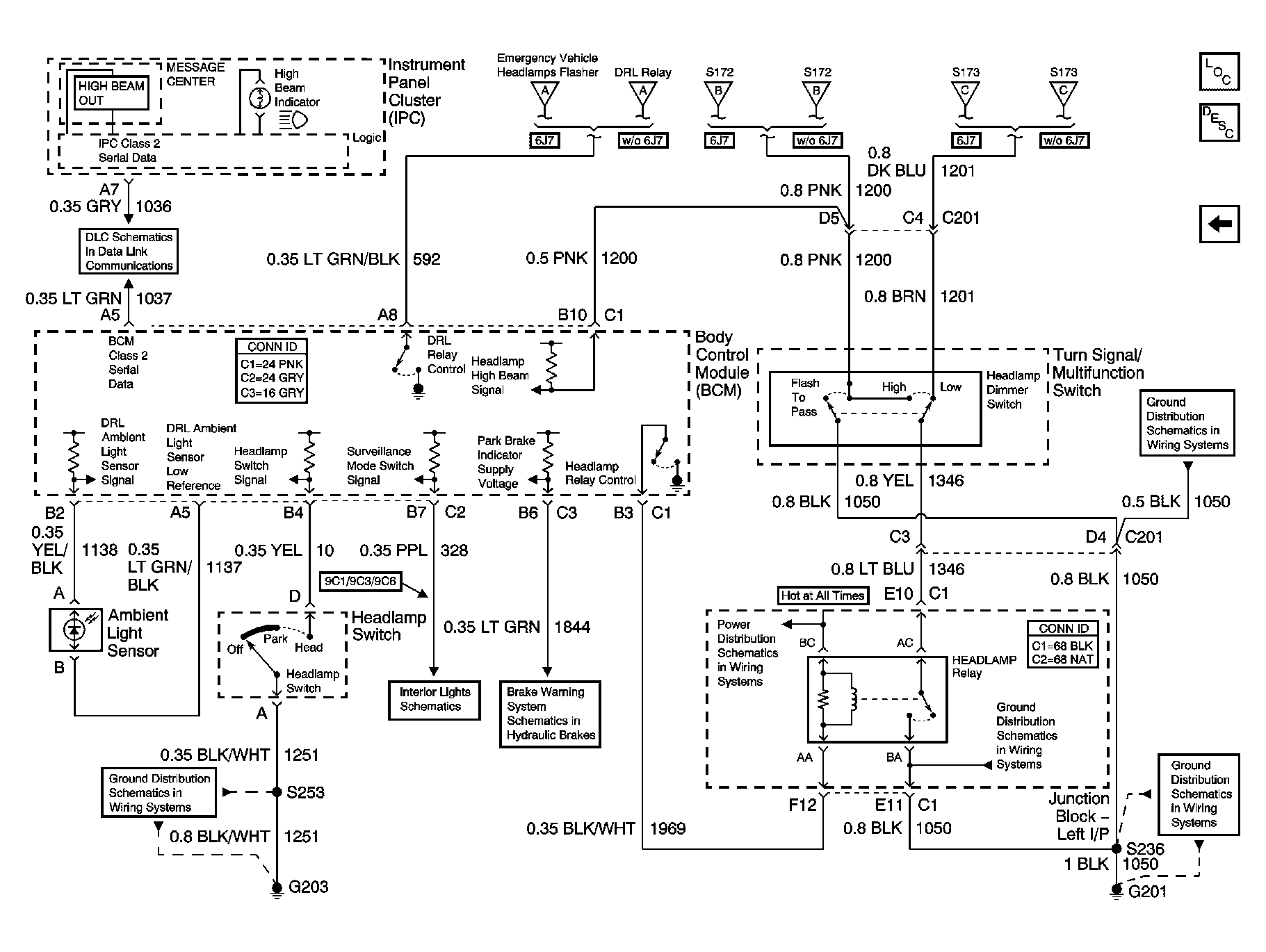

Fig 3: Indicators & Lamp Control Schematic

Courtesy of GENERAL MOTORS CORP.
