Indicator/Warning Message Description and Operation

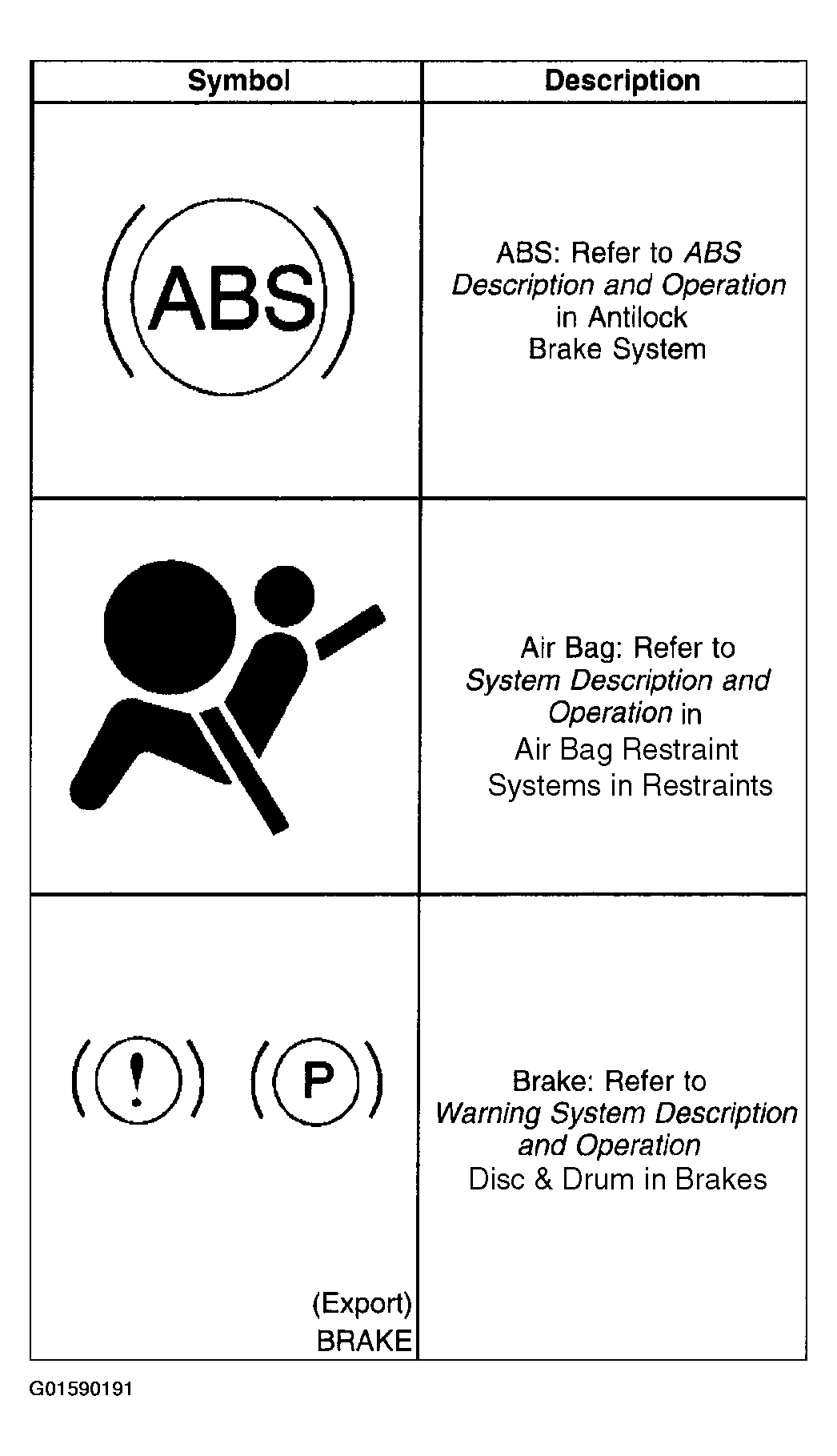

Fig 1: Indicators Description Symbol Chart (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

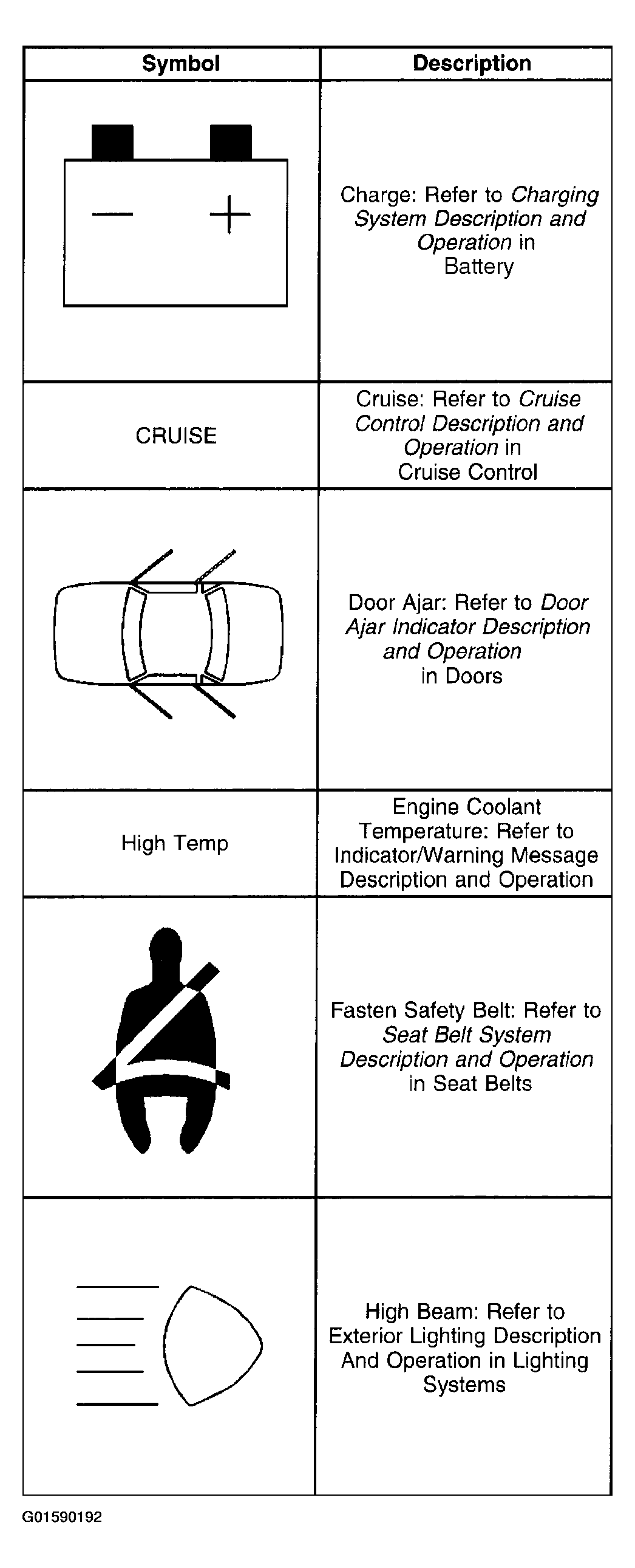

Fig 2: Indicators Description Symbol Chart (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

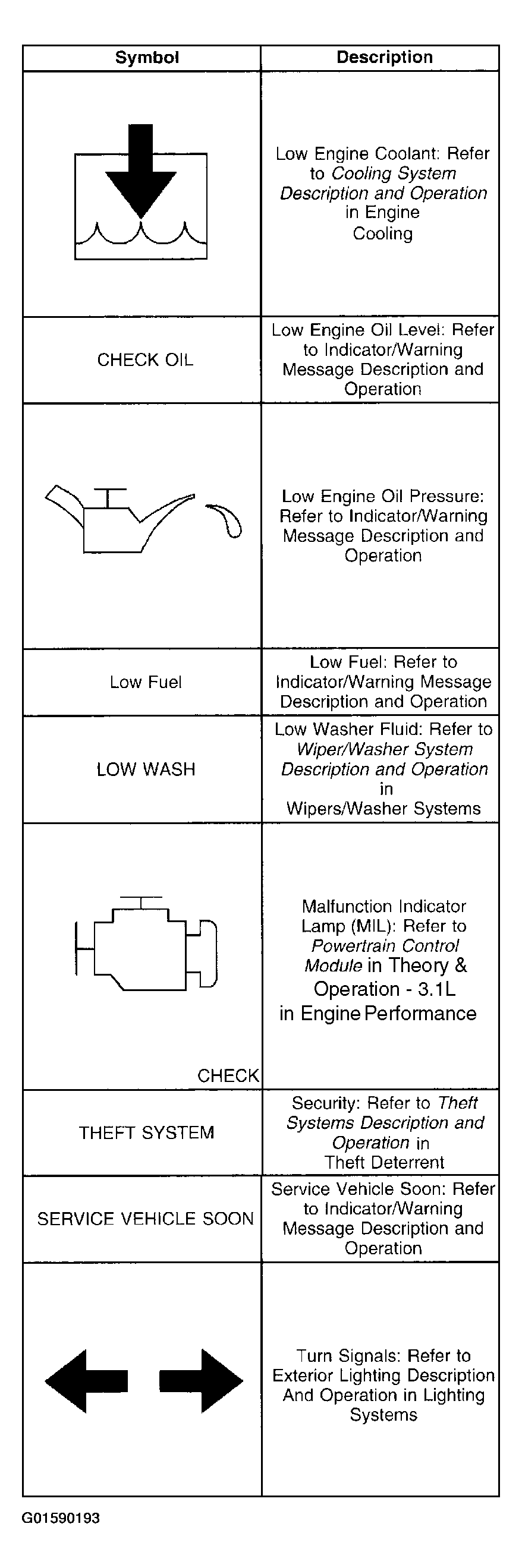

Fig 3: Indicators Description Symbol Chart (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
