Vacuum Brake Booster Check Valve: Installation

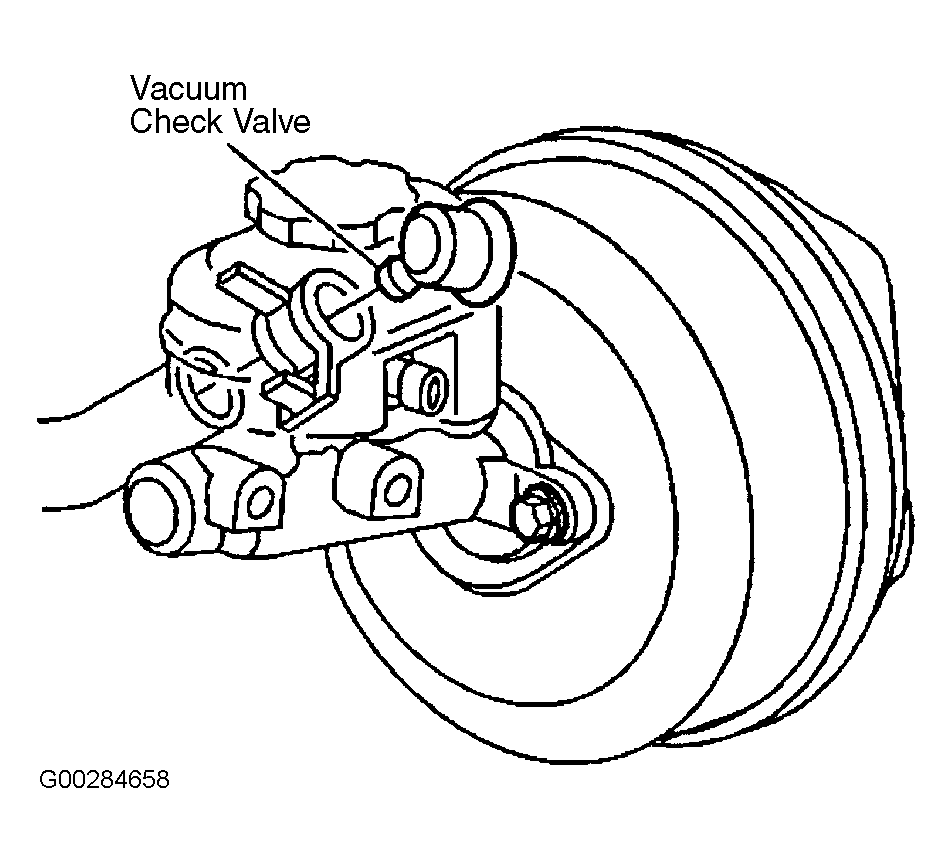

  1. Install the brake booster check valve onto the vacuum brake booster. See Figure.
  2. Connect the vacuum hose to the vacuum brake booster check valve.
  3. Connect the vacuum hose to the intake manifold.
