Park Brake Hardware: Installation

  1. Connect the park brake lever to the park brake cable. Connect the park brake lever to the brake shoe and install the retaining clip.

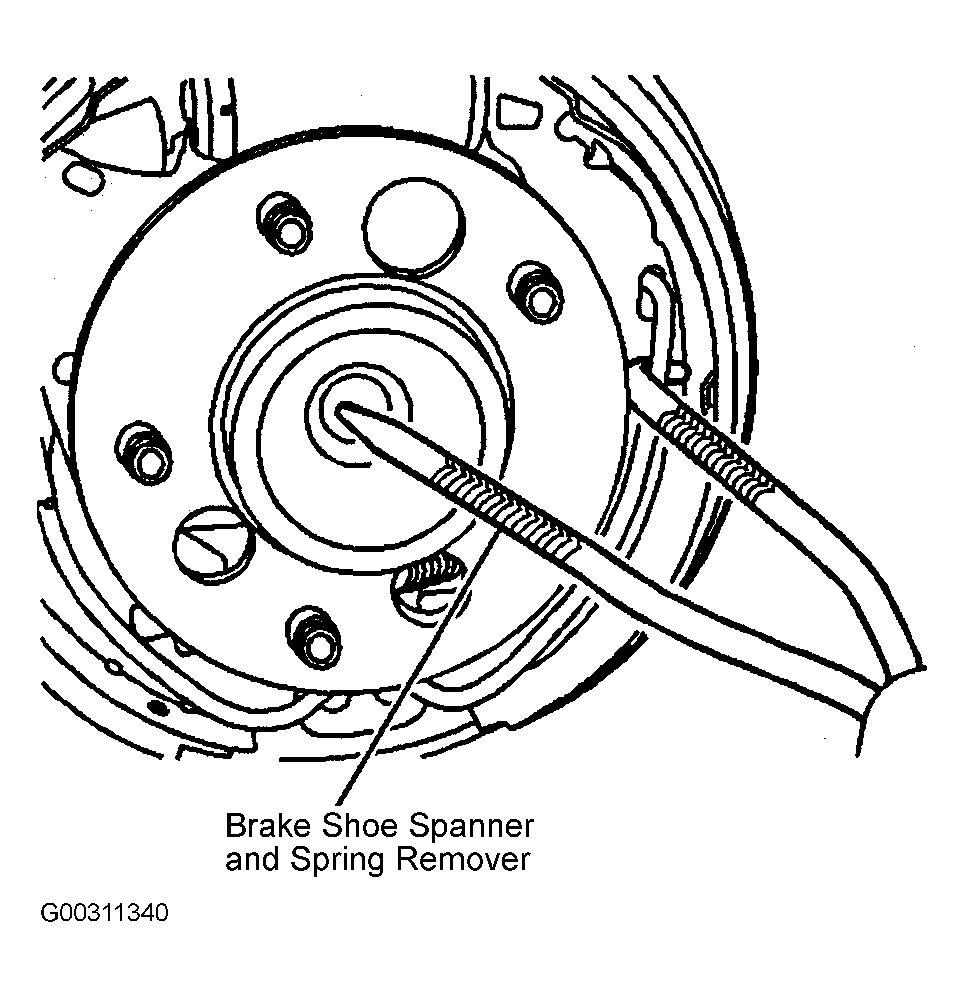

  2. Position the hook end of the Brake Shoe Spanner and Spring Remover (J-38400) under the universal spring and lightly pull the universal spring end out while installing the brake shoe. See Figure. Ensure that the universal spring properly engages the brake shoe web hole.
  3. Adjust the drum brake system. See DRUM BRAKE ADJUSTMENT  under ADJUSTMENTS & INSPECTIONS.
  4. Install the brake drum. See BRAKE DRUM .
  5. Install the tire and wheel assembly. Tighten to specification. See TORQUE SPECIFICATIONS . Lower the vehicle.
