Park Brake Cable Equalizer: Installation

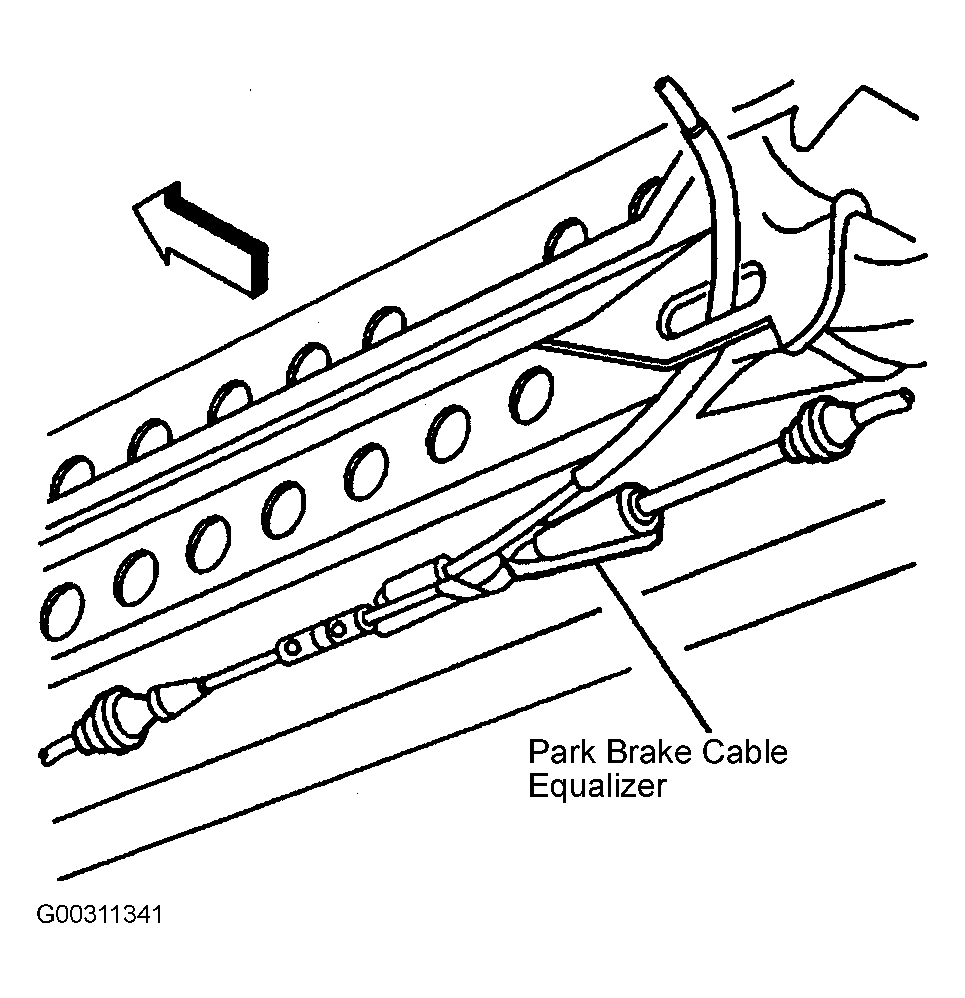

  1. Connect the left and right park brake cables to the equalizer. See Figure. Connect the intermediate park brake cable to the equalizer.
  2. Adjust the park brake cable at the adjuster. See PARK BRAKE ADJUSTMENT  under ADJUSTMENTS & INSPECTIONS.
  3. Lower the vehicle.
