Master Cylinder: Installation

  1. Bench bleed the master cylinder. See MASTER CYLINDER BENCH BLEEDING  under BLEEDING, FILLING & FLUSHING BRAKE SYSTEM.

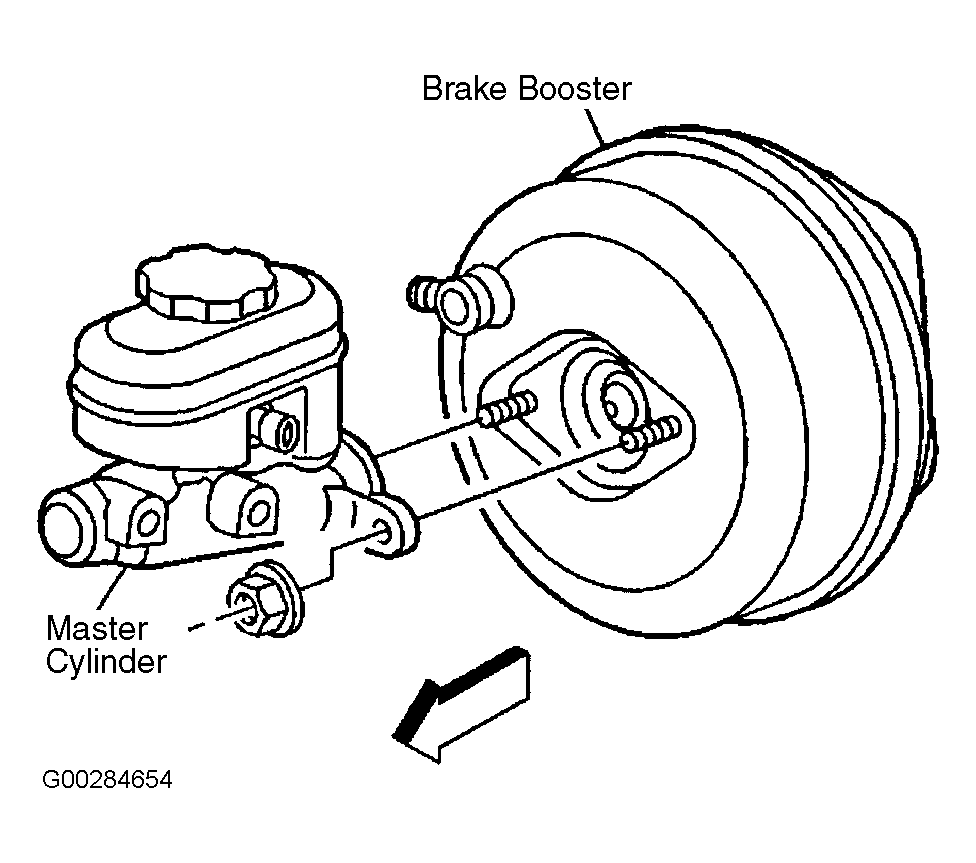

  2. Install the master cylinder to the vacuum brake booster. See Figure.
  3. Install the master cylinder mounting nuts. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
  4. Install the brake pipes to the master cylinder. See Figure. Tighten the brake pipe fittings at the master cylinder to specification. See TORQUE SPECIFICATIONS .
  5. Connect the electrical connector to the brake fluid level sensor. Bleed the brake system. See MANUAL BLEEDING  or PRESSURE BLEEDING  under BLEEDING, FILLING & FLUSHING BRAKE SYSTEM.
