Master Cylinder Fluid Level Sensor: Removal

1. Disconnect the electrical connector from the brake fluid level sensor. See Figure.
2. Remove the brake fluid level sensor. See Fig 1. Using needle nose pliers, carefully depress the retaining tabs on the end of the brake fluid level sensor and press the sensor through the reservoir to remove.

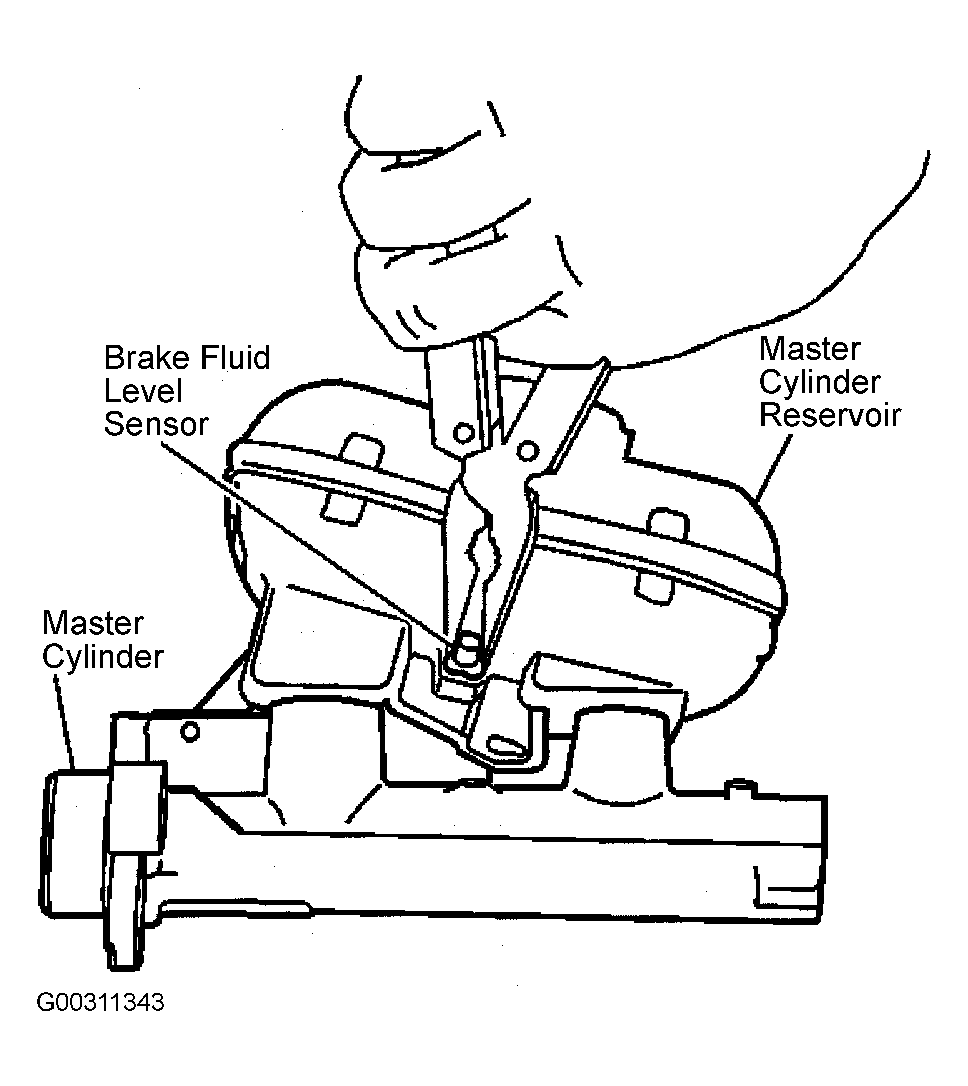

Fig 1: Removing Brake Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.
