Master Cylinder Fluid Level Sensor: Installation

  1. Place the brake fluid level sensor into the reservoir, press into place to secure the sensor retaining tabs.

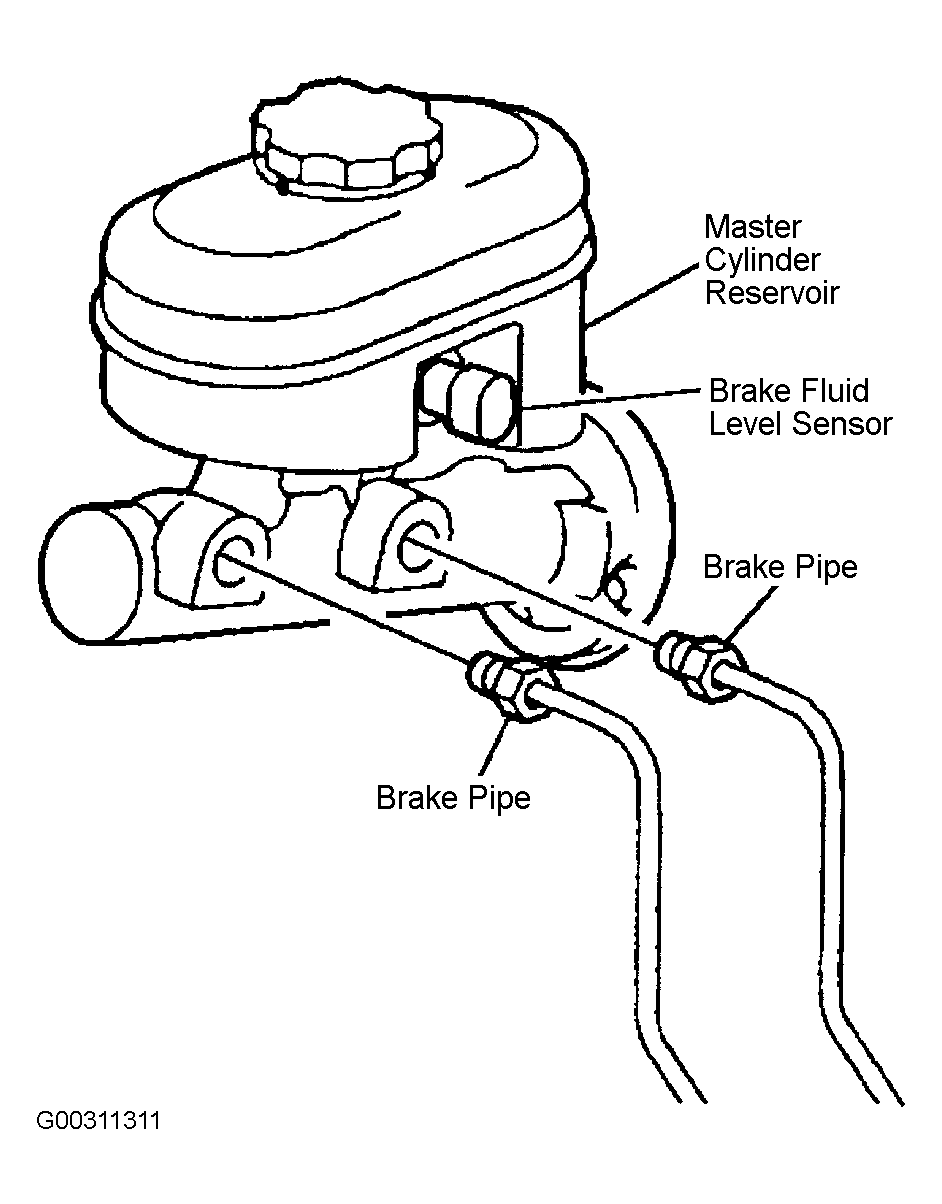

  2. Connect the electrical connector to the brake fluid level sensor. See Figure.
