Instrument Cluster Schematics

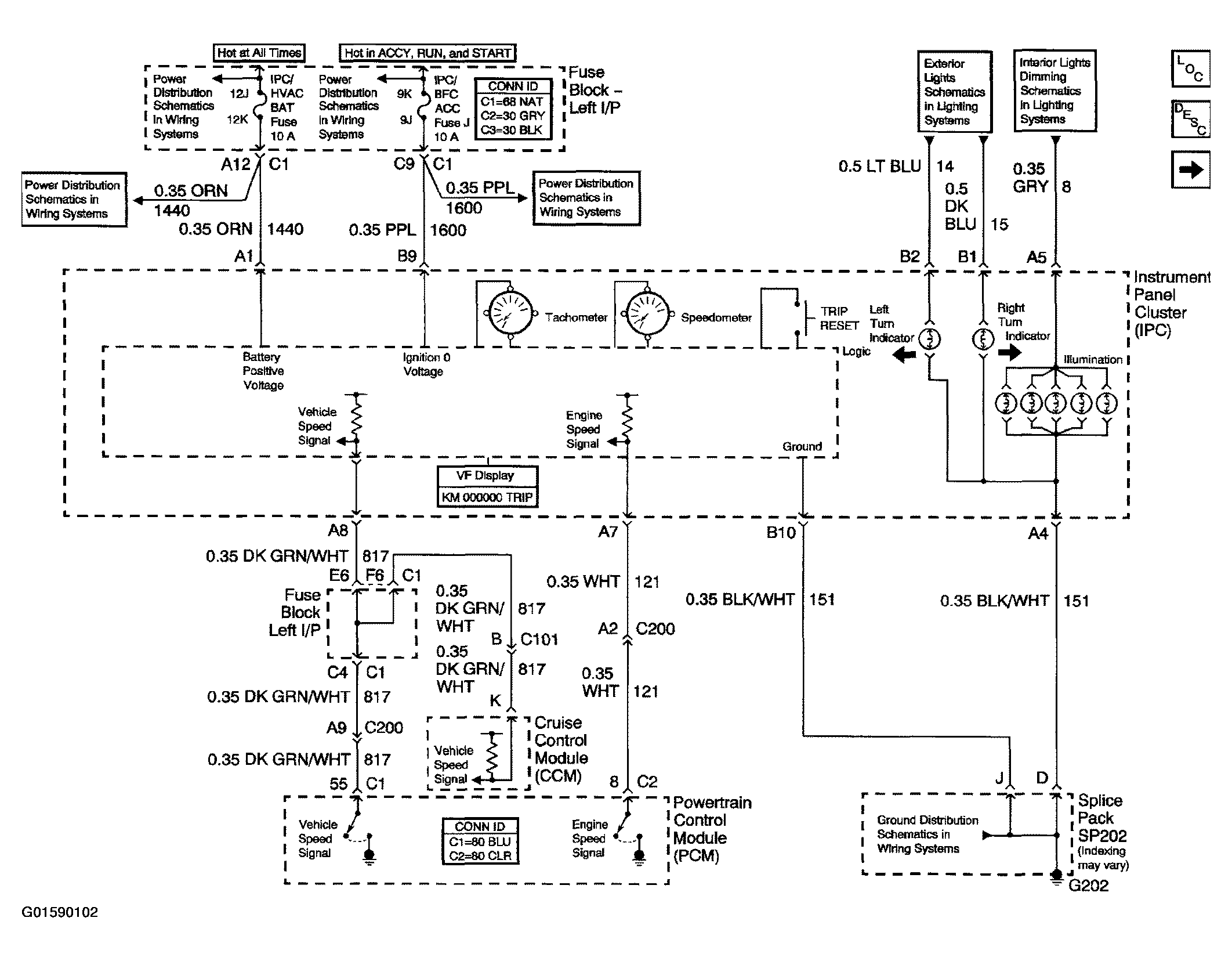

Fig 1: Instrument Cluster Schematics (Power and Grounds) Diagram
G01590102Courtesy of GENERAL MOTORS CORP.

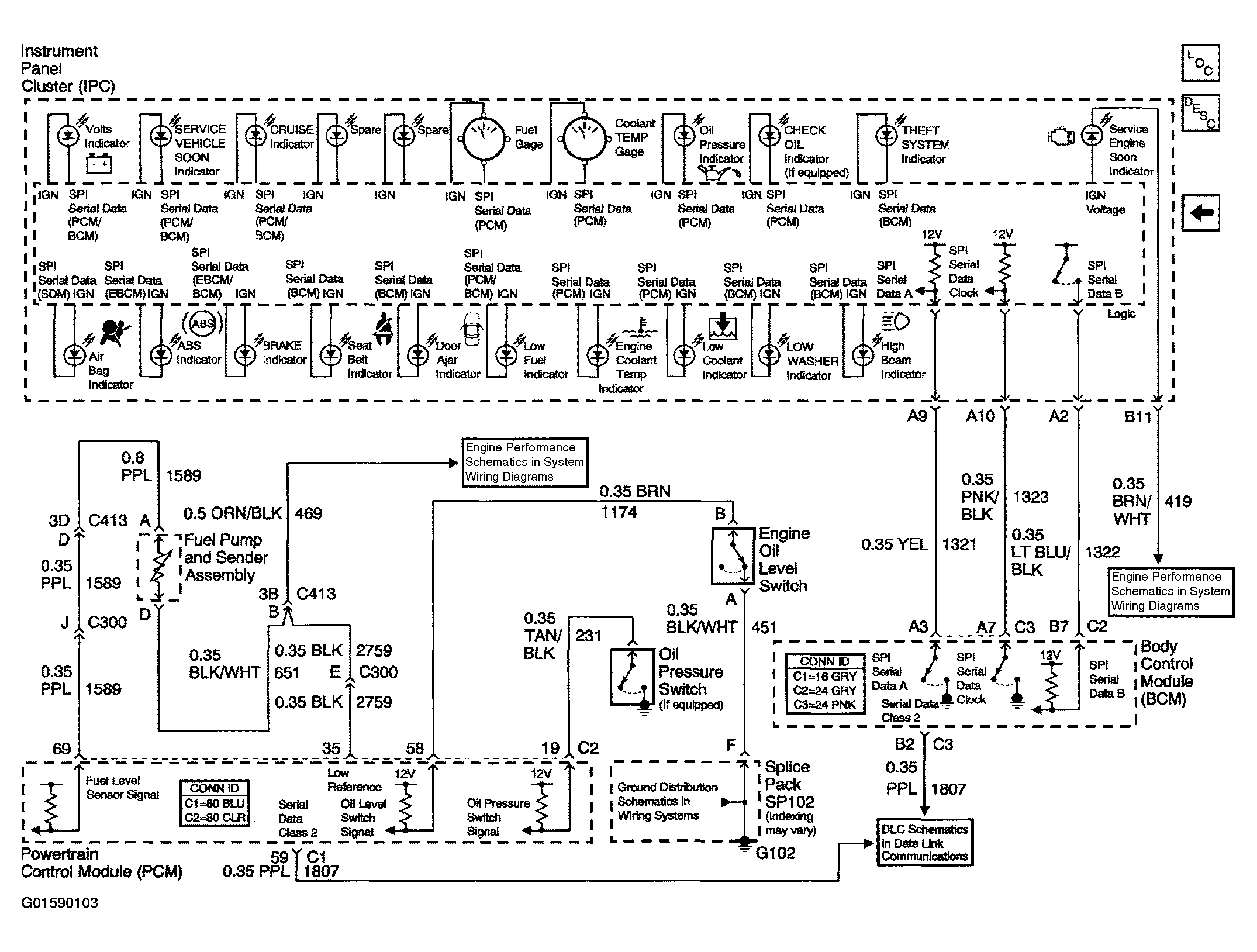

Fig 2: Instrument Cluster Schematics (Indicators and Communication) Diagram
G01590103Courtesy of GENERAL MOTORS CORP.
