Audible Warnings Schematics

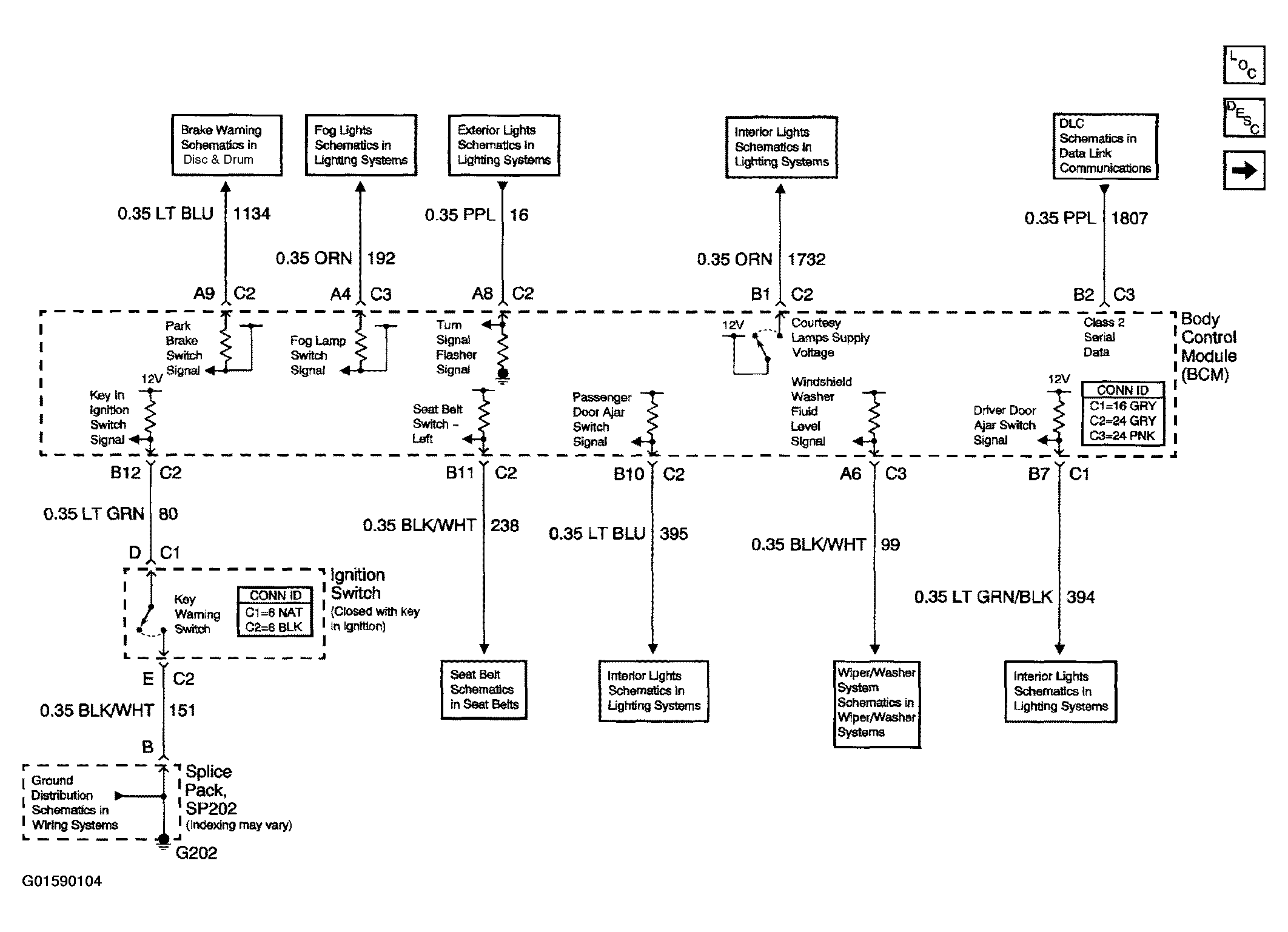

Fig 1: Audible Warnings Schematics (Ignition Switch, Seat Belt, and Door Ajar Inputs) Diagram
G01590104Courtesy of GENERAL MOTORS CORP.

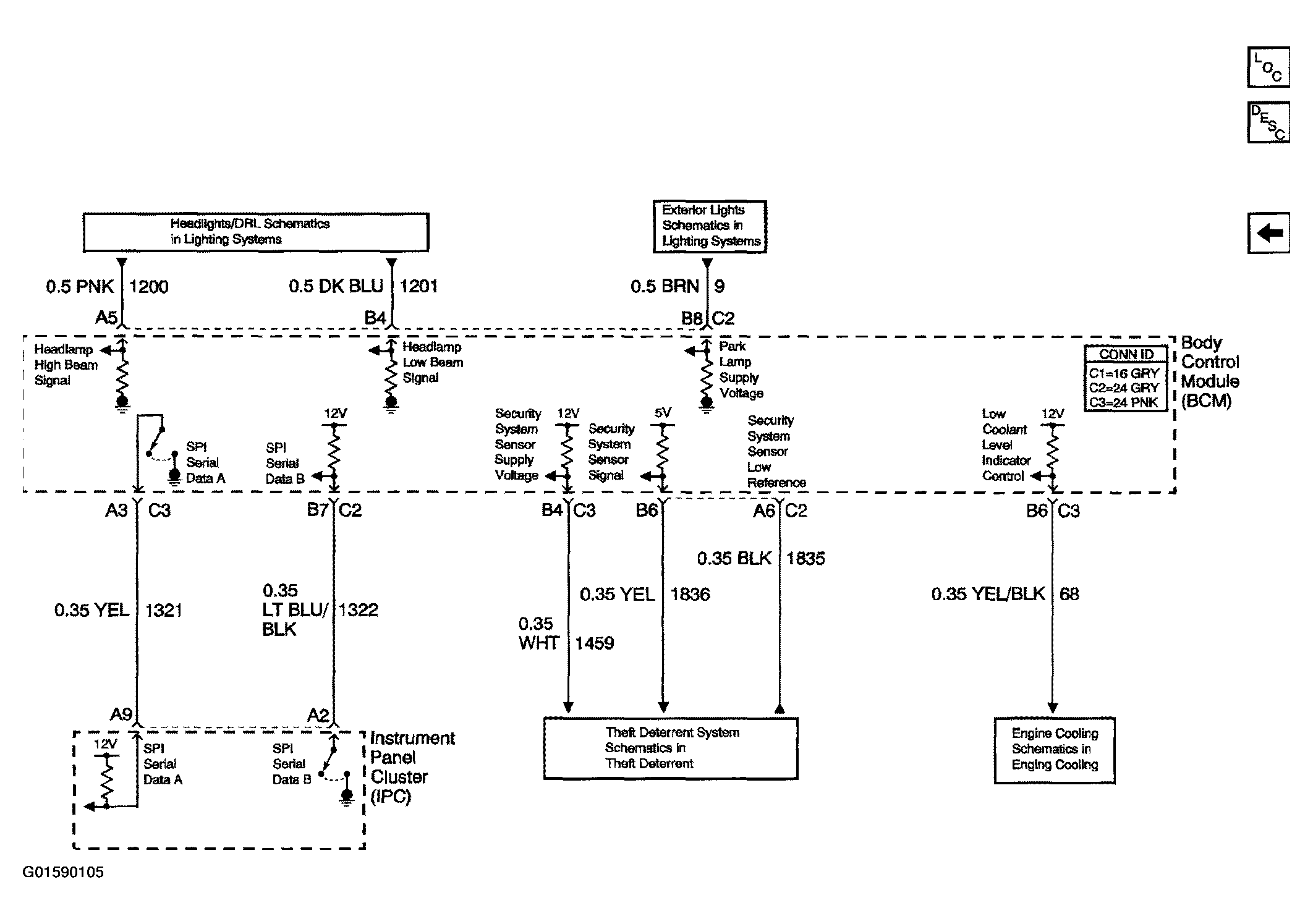

Fig 2: Audible Warnings Schematics (Communications, Theft Deterrent, and Engine Cooling) Diagram
G01590105Courtesy of GENERAL MOTORS CORP.
