Removal Procedure

  1. With a flat-bladed tool remove the ignition switch trim cover.

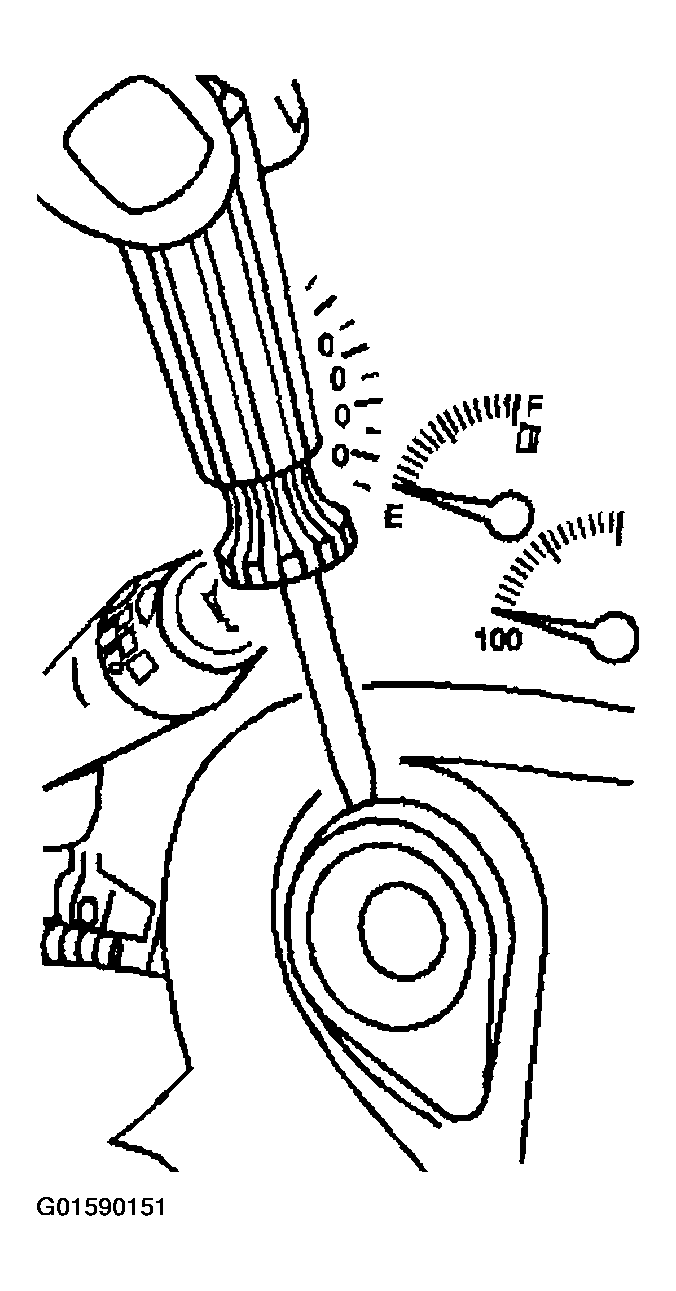

    Fig 1: Removing Ignition Switch Trim Cover
    G01590151Courtesy of GENERAL MOTORS CORP.
  2. With a flat-bladed tool remove the accessory trim plate from the from the I/P carrier.
  3. Disconnect the cigar lighter electrical connector from the cigar lighter.
  4. Remove the cigar lighter from the accessory trim plate if required. Refer to CIGAR LIGHTER REPLACEMENT  .

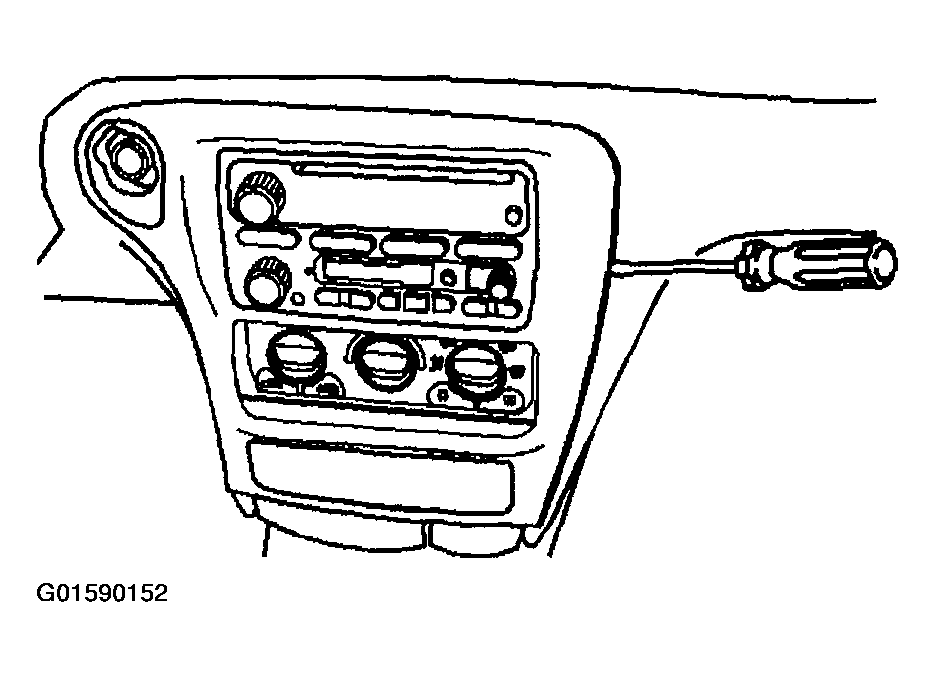

    Fig 2: Removing Cigar Lighter From Accessory Trim Plate
    G01590152Courtesy of GENERAL MOTORS CORP.
