Installation Procedure

  1. Install the cigar lighter to the accessory trim plate if required. Refer to CIGAR LIGHTER REPLACEMENT  .
  2. Connect the cigar lighter electrical connector to the cigar lighter.
  3. Align the accessory trim plate tabs to the I/P carrier.
  4. Press the accessory trim plate into the I/P carrier until retaining tabs are engaged.
    Fig 1: Installing Cigar Lighter To Accessory Trim Plate
    G01590153Courtesy of GENERAL MOTORS CORP.
  5. Align the ignition key trim cover to the ignition switch. Press the trim cover until retaining tabs are engaged.

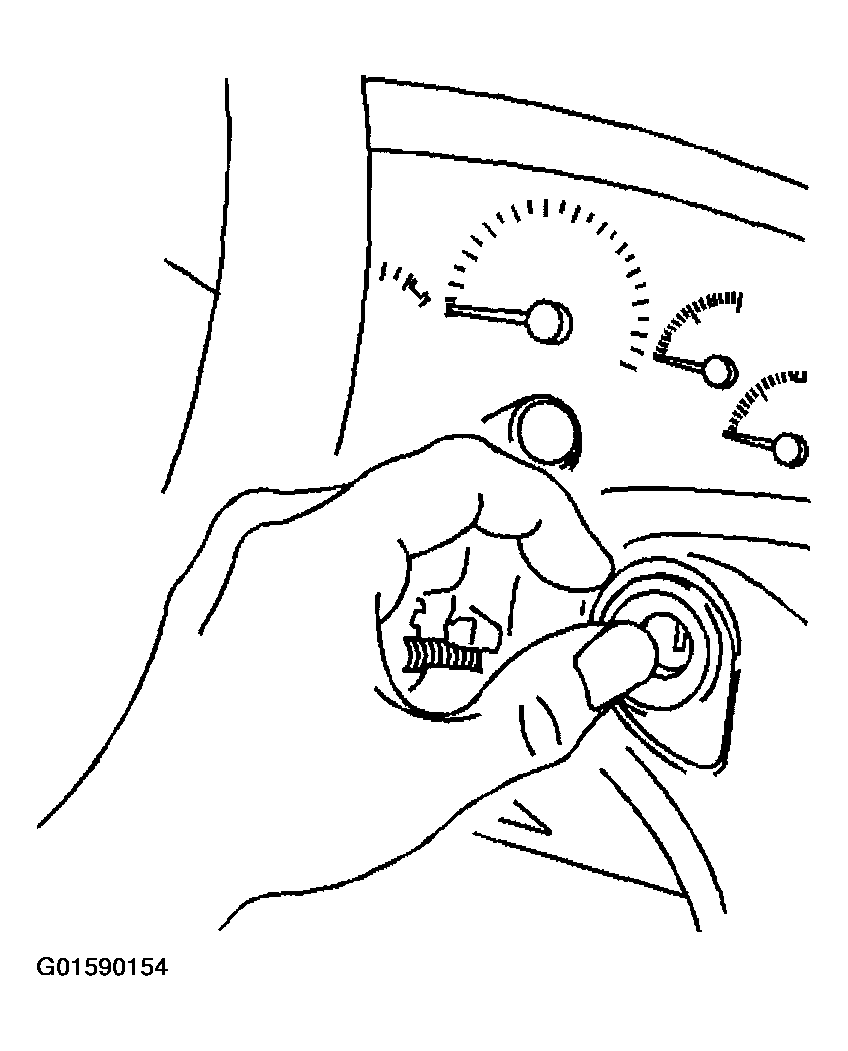

    Fig 2: Installing Ignition Key Trim Cover To Ignition Switch
    G01590154Courtesy of GENERAL MOTORS CORP.
