Removal Procedure

  1. Position the gear selector to the neutral position.
  2. Remove the gear selector knob retainer (1), using a small flat-bladed tool.
  3. Remove the gear selector knob, by pulling upward.

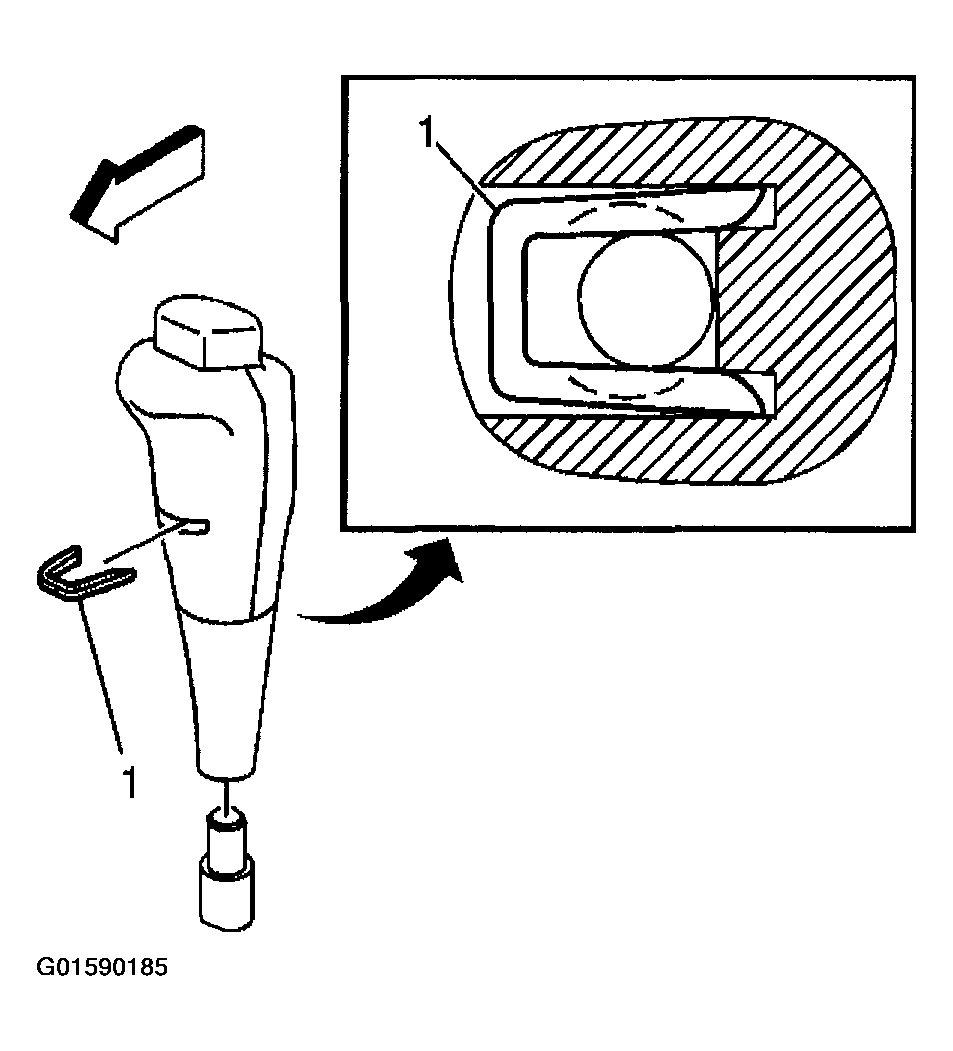

    Fig 1: Removing Gear Selector Knob Retainer
    G01590185Courtesy of GENERAL MOTORS CORP.
  4. Release the front floor console trim plate retainers, using a flat bladed tool.
  5. Remove the front floor console trim plate (1) from the front floor console (2).
  6. Disconnect the electrical connectors from the front floor console trim plate.

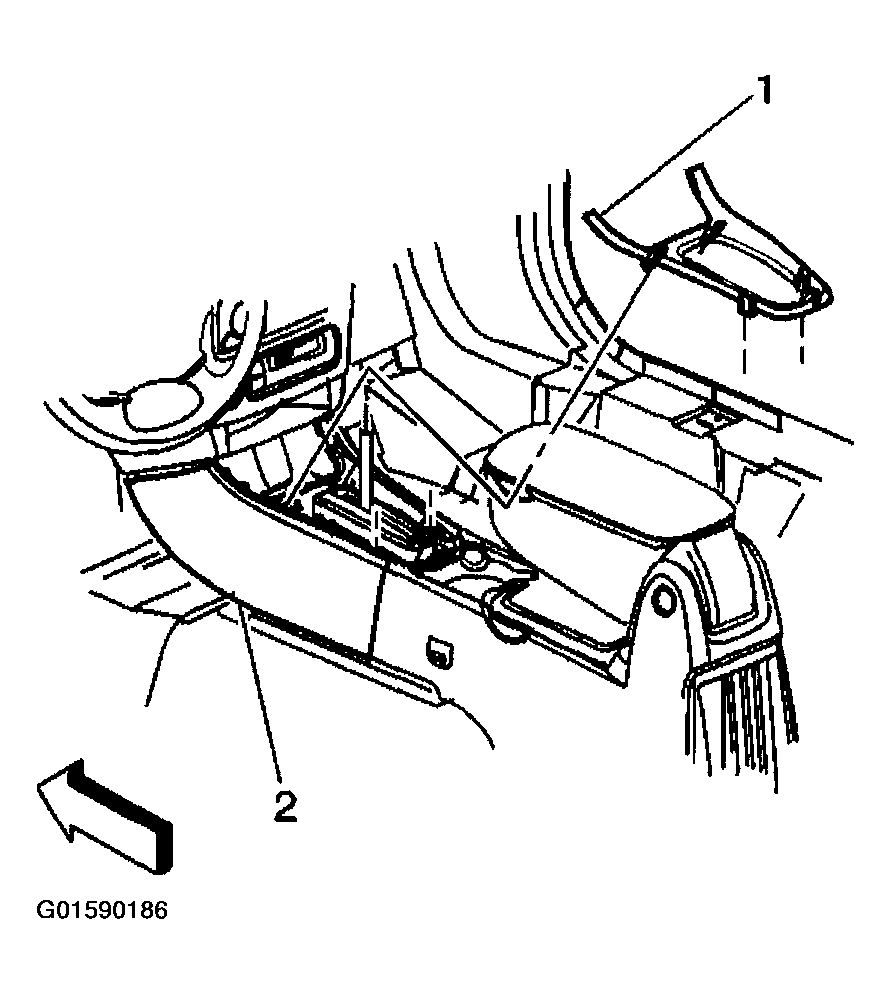

    Fig 2: Disconnecting Electrical Connectors From Front Floor Console Trim Plate
    G01590186Courtesy of GENERAL MOTORS CORP.
