Installation Procedure

  1. Connect the electrical connectors to the front floor console trim plate.
  2. Align the front floor console trim plate retainers to the slots in the front floor console.
  3. Install the front floor console trim plate (1), pressing into place until fully seated.

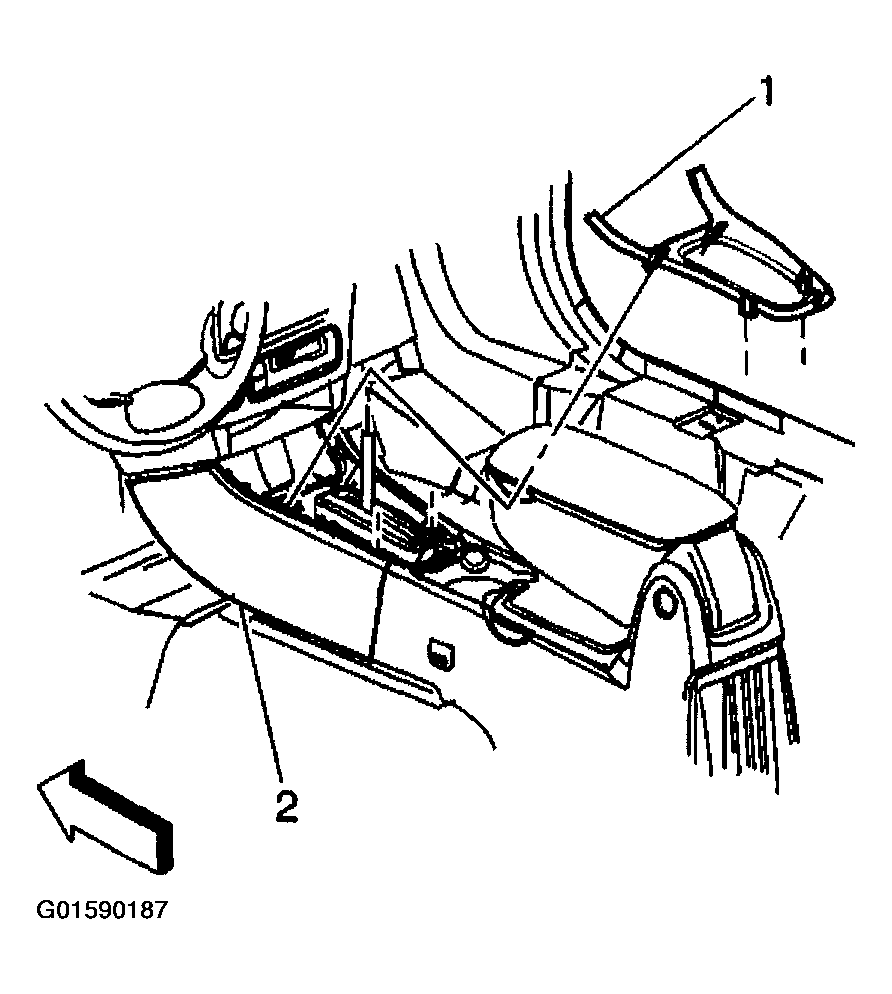

    Fig 1: Installing Electrical Connectors To Front Floor Console Trim Plate
    G01590187Courtesy of GENERAL MOTORS CORP.
  4. Position the gear selector knob to the shift lever.
  5. Install the gear selector knob retainer (1), pressing into place until fully seated.
  6. Reposition the gear selector to the Park position.

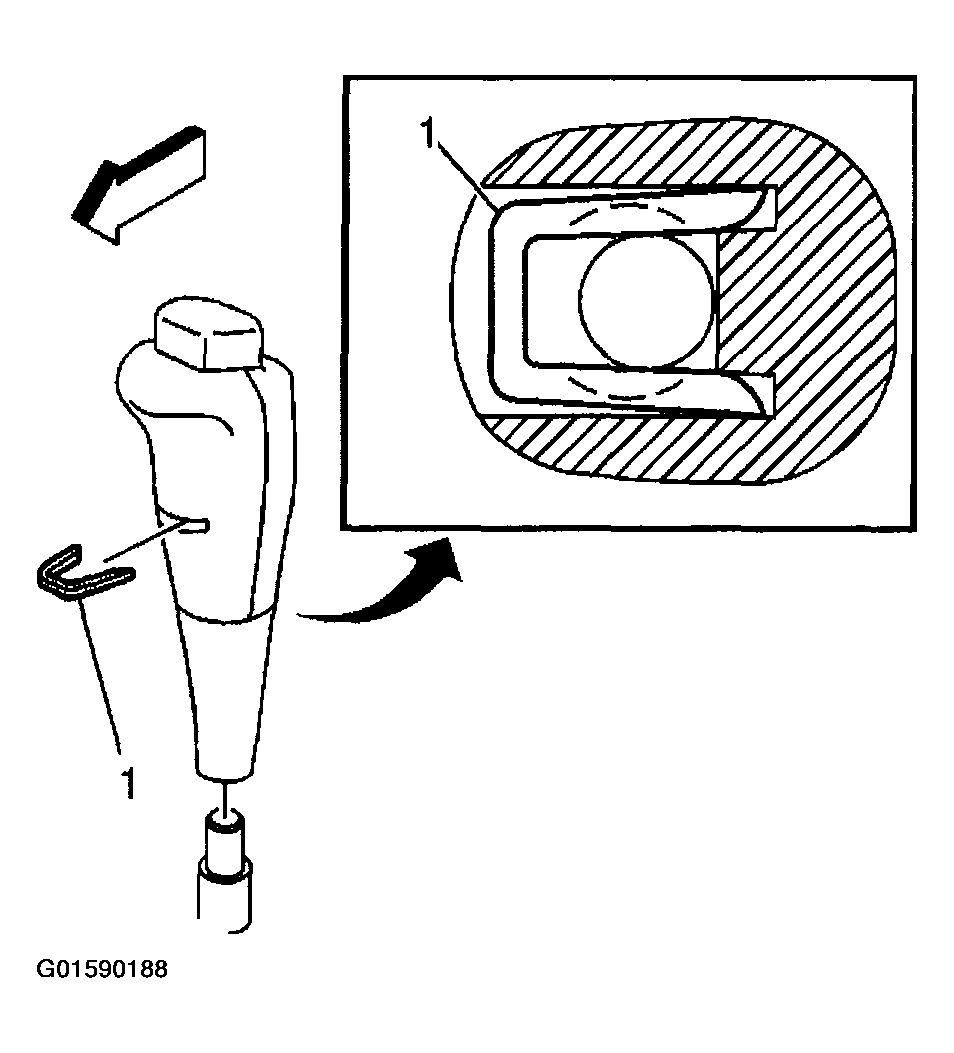

    Fig 2: Installing Gear Selector Knob Retainer
    G01590188Courtesy of GENERAL MOTORS CORP.
