Installation Procedure

  1. Connect the electrical connector to the hazard warning switch.
  2. Connect the electrical connector to the I/P dimmer switch.
  3. Align the cluster trim plate tabs to the retainers.
  4. Install the I/P cluster trim plate to the I/P carrier.

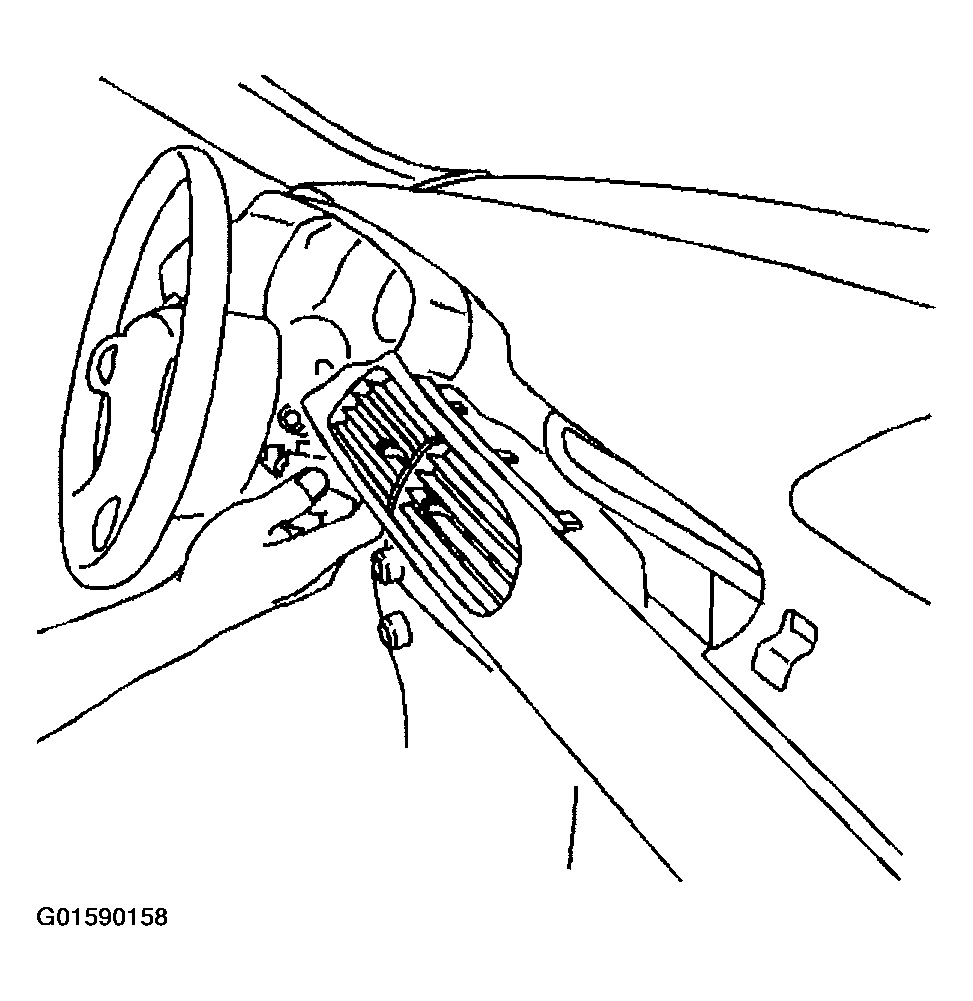

    Fig 1: Connecting Electrical Connector To Hazard Warning Switch
    G01590158Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws to the I/P cluster trim plate.

    Tighten

    Tighten the screws to 2.3 N.m (20 lb in).

    Fig 2: Installing Screws To I/P Cluster Trim Plate
    G01590159Courtesy of GENERAL MOTORS CORP.
  6. Install the upper trim cover to the steering column.
  7. Install the screws to the lower steering column trim cover.

    Tighten

    Tighten the screws to 2.3 N.m (20 lb in).

  8. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

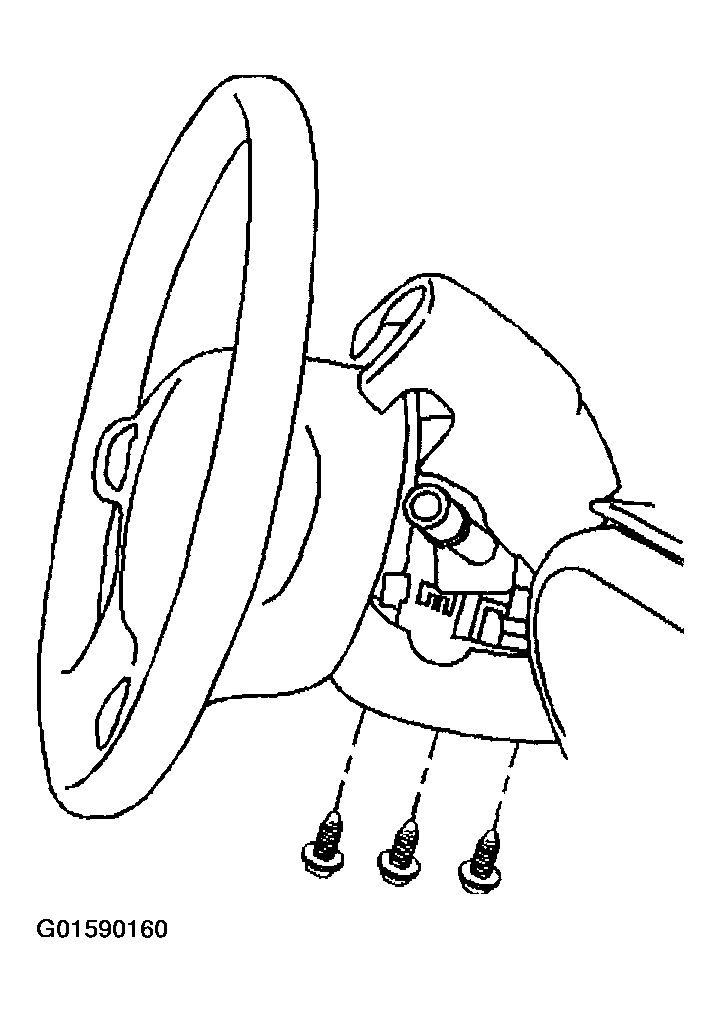

    Fig 3: Installing Upper Trim Cover & Screws To Steering Column
    G01590160Courtesy of GENERAL MOTORS CORP.
