Installation Procedure

  1. Install the striker (3) to the I/P compartment (1).
  2. Install the rivets (2) to the striker (3) through the opening in the I/P compartment (1).
  3. Secure the rivets (2) to the I/P compartment (1) using a rivet gun.
  4. Close the compartment door.
  5. Install the instrument panel (I/P) compartment.

    Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P)  .

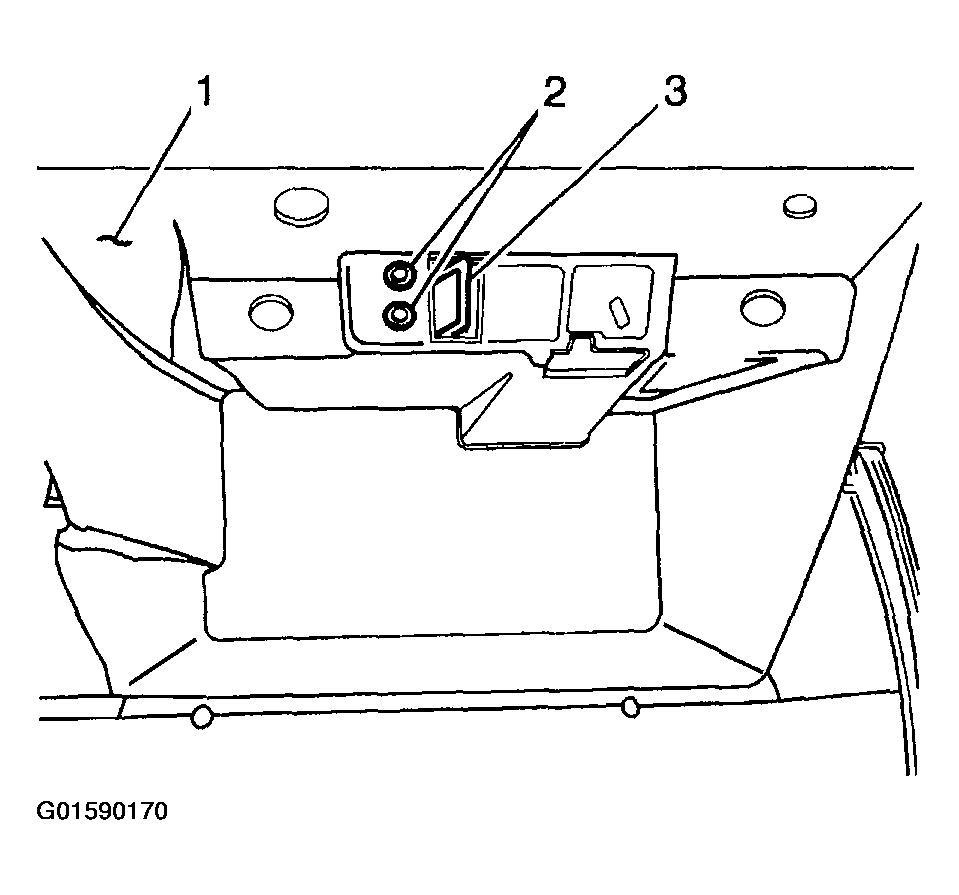

    Fig 1: Installing Striker To I/P Compartment
    G01590170Courtesy of GENERAL MOTORS CORP.
