Removal Procedure

  1. Open the instrument panel (I/P) compartment door (1).
  2. Remove the screws (2) from the reinforcement cover (3) on the I/P door (1).
  3. Separate the reinforcement cover (3) from the I/P door (1).

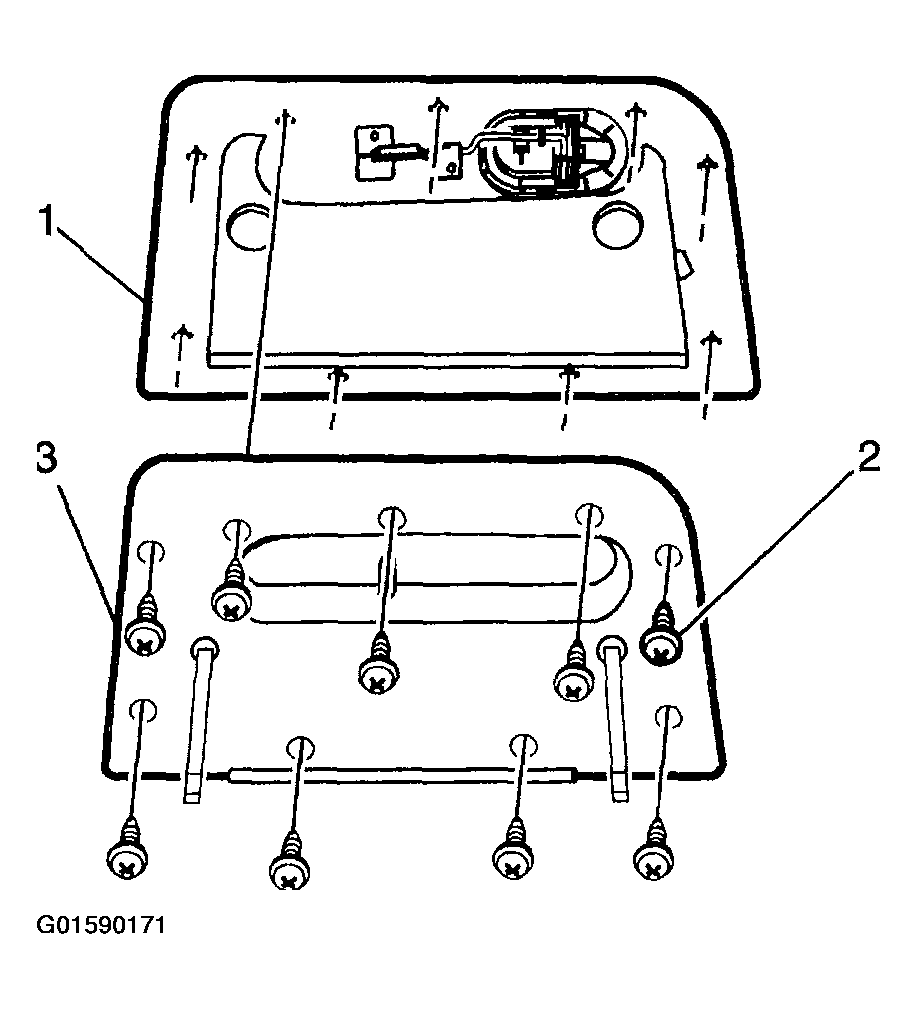

    Fig 1: Removing Reinforcement Cover From I/P Door
    G01590171Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws (2) from the door latch (5).
  5. Remove the door latch (5) from the I/P door (1).
  6. Remove the latch rod (3) from the door latch handle (4).

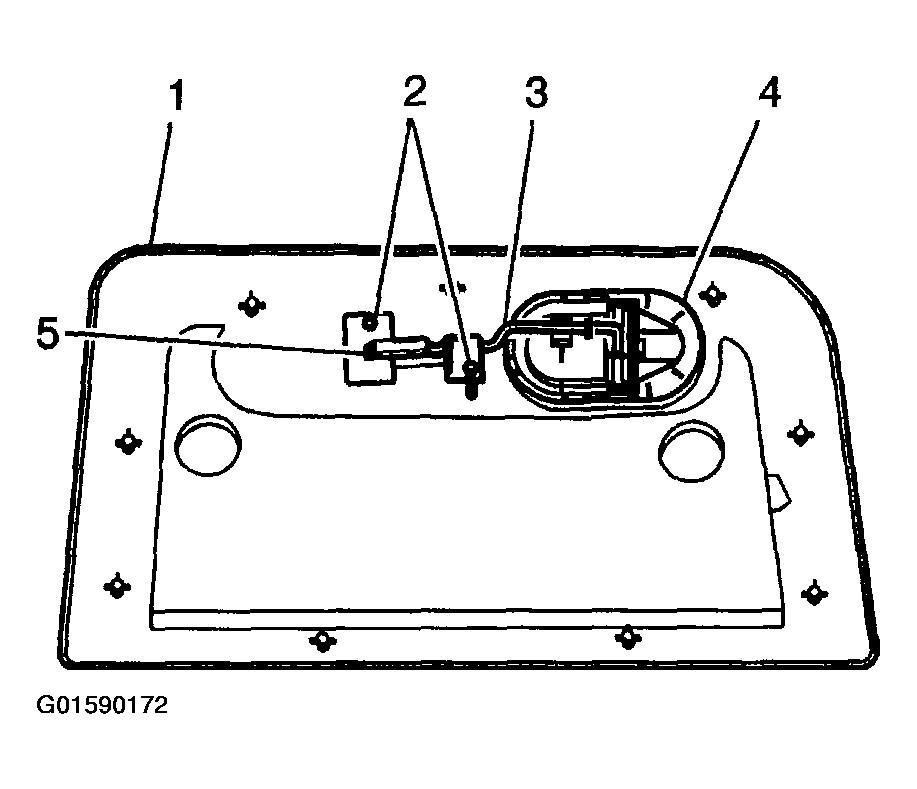

    Fig 2: Removing Latch Rod From Door Latch Handle
    G01590172Courtesy of GENERAL MOTORS CORP.
