Installation Procedure

Install the latch rod (3) to the door latch handle (4).
Install the door latch (5) to the I/P door (1).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws (2) to the door latch (5).
Tighten

Tighten the screws to 2.3 N.m (20 lb in).

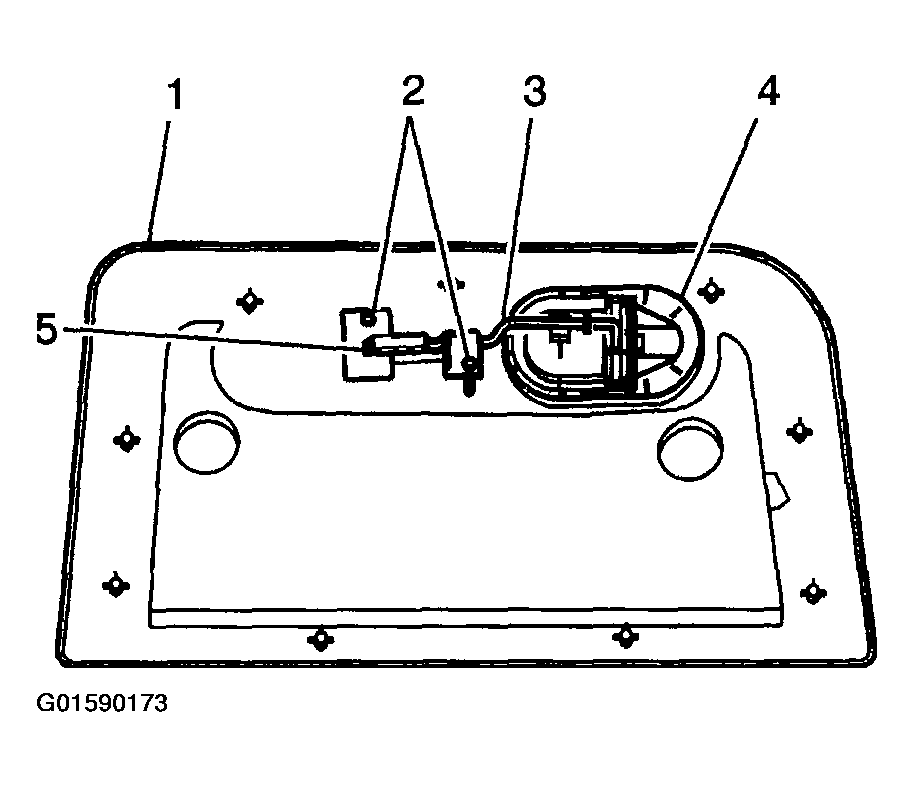

Fig 1: Installing Latch Rod To Door Latch Handle
Courtesy of GENERAL MOTORS CORP.
Install the reinforcement cover (3) to the I/P door (1).
Install the screws (2) to the reinforcement cover (3).
Tighten

Tighten the screws to 2.3 N.m (20 lb in).
Close the I/P compartment door (1).

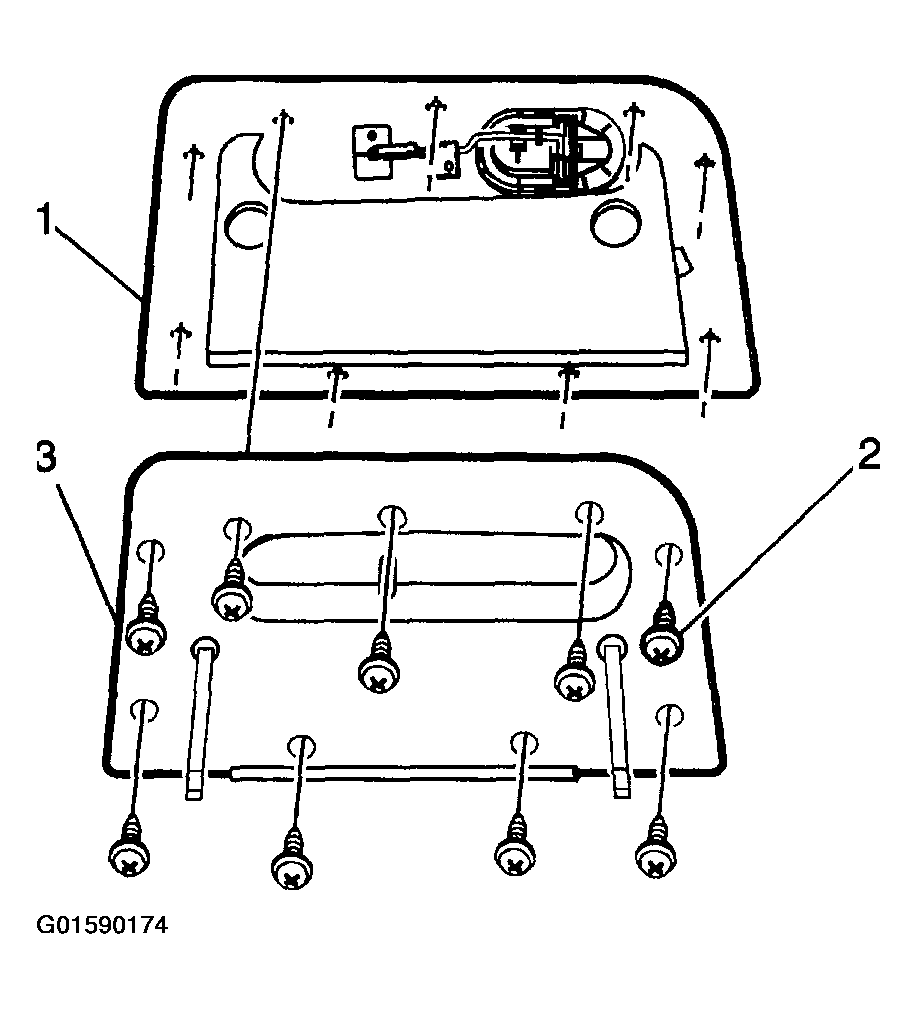

Fig 2: Installing Reinforcement Cover To I/P Door
Courtesy of GENERAL MOTORS CORP.
