Removal Procedure

  1. Remove the cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the screws attaching the I/P cluster (2) to the I/P carrier (1).
  3. Pull the I/P cluster (2) rearward in order to remove the cluster from I/P carrier.
  4. Disconnect the electrical connector.

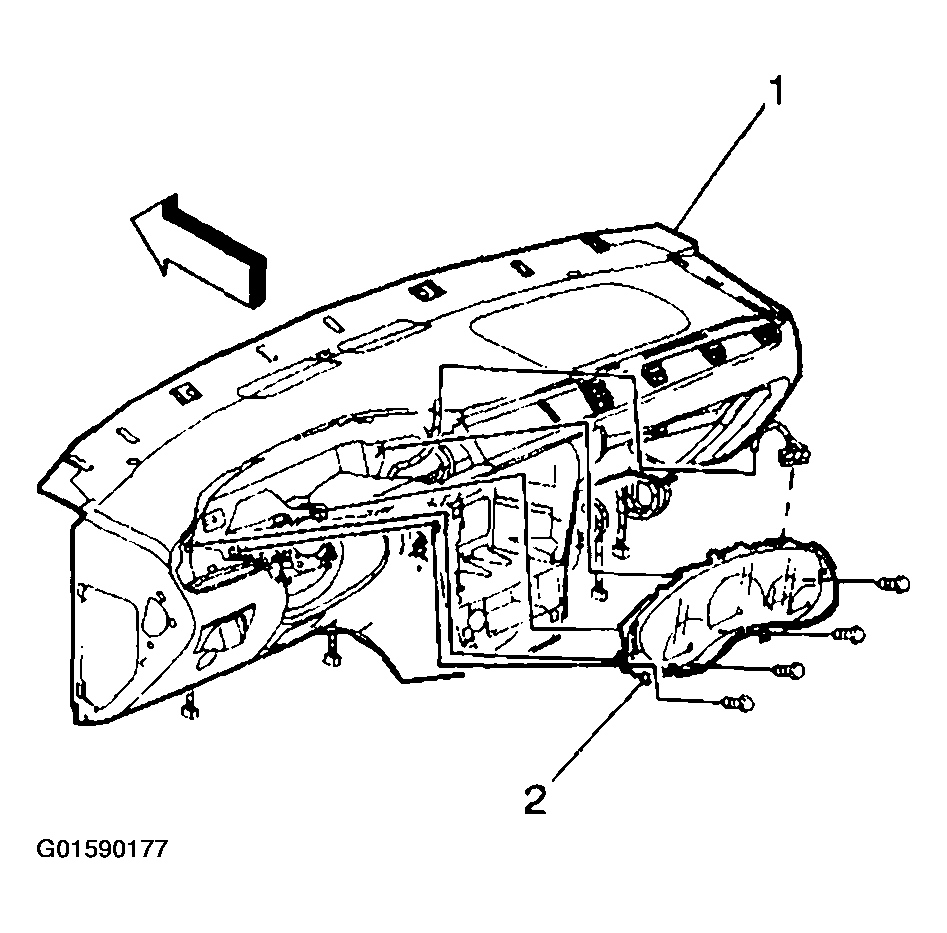

    Fig 1: Removing Instrument Panel Cluster (IPC)
    G01590177Courtesy of GENERAL MOTORS CORP.
