Installation Procedure

  1. Connect the electrical connector.
  2. Install the I/P cluster (2) to the I/P carrier (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the I/P cluster bolts.

    Tighten

    Tighten the bolts to 2.3 N.m (20 lb in).

  4. Install the cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

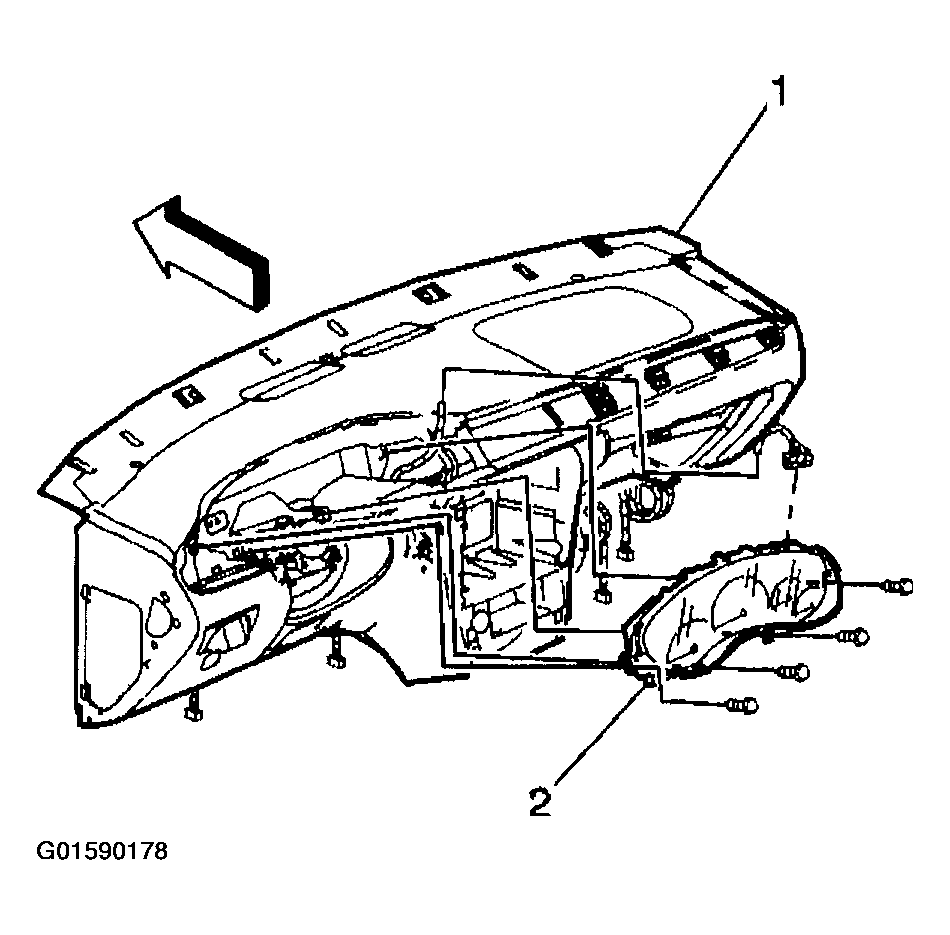

    Fig 1: Installing Instrument Panel Cluster (IPC)
    G01590178Courtesy of GENERAL MOTORS CORP.
