Removal Procedure

  1. Pull outward on the outer trim cover (1, 3) in the fingerpull area.
  2. Remove the outer trim cover (1, 3) from the IP carrier (2).

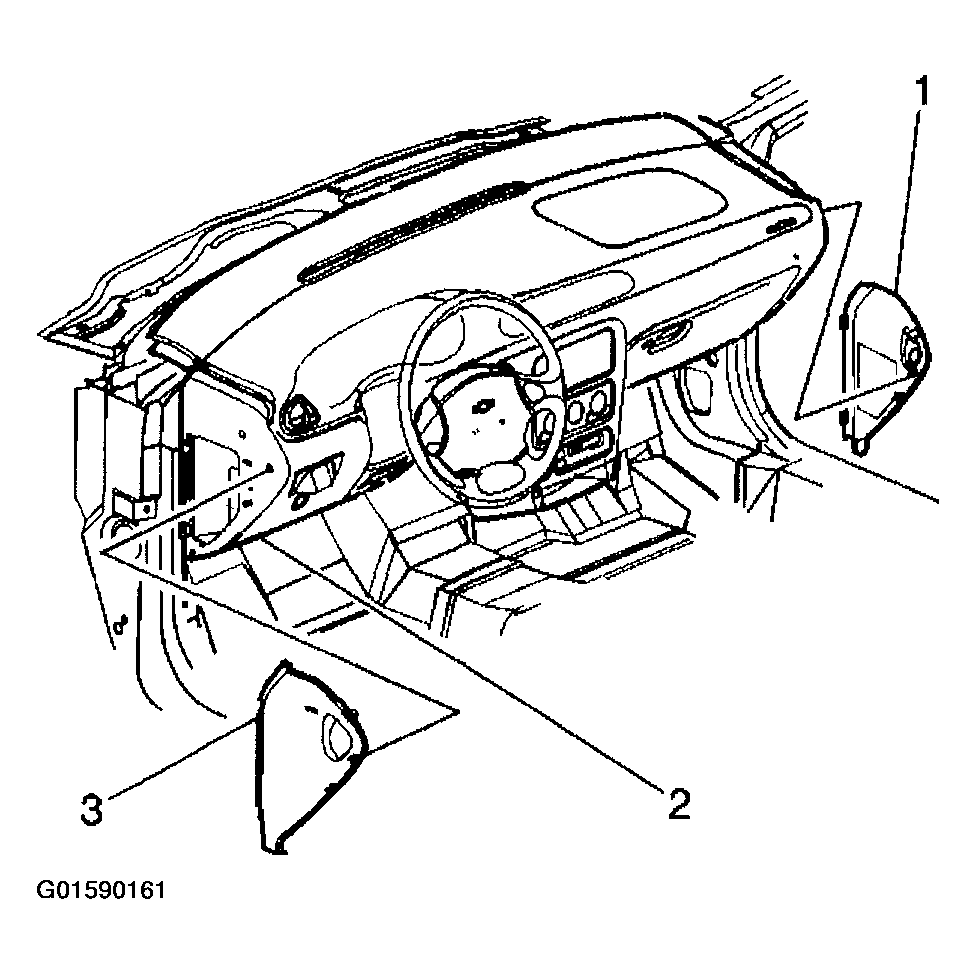

    Fig 1: Removing Outer Trim Cover From IP Carrier
    G01590161Courtesy of GENERAL MOTORS CORP.
