Installation Procedure

  1. Align the tabs on the outer trim cover (1, 3) to the retaining clips in the IP carrier.
  2. Gently press the outer trim cover (1, 3) into the IP carrier (2).

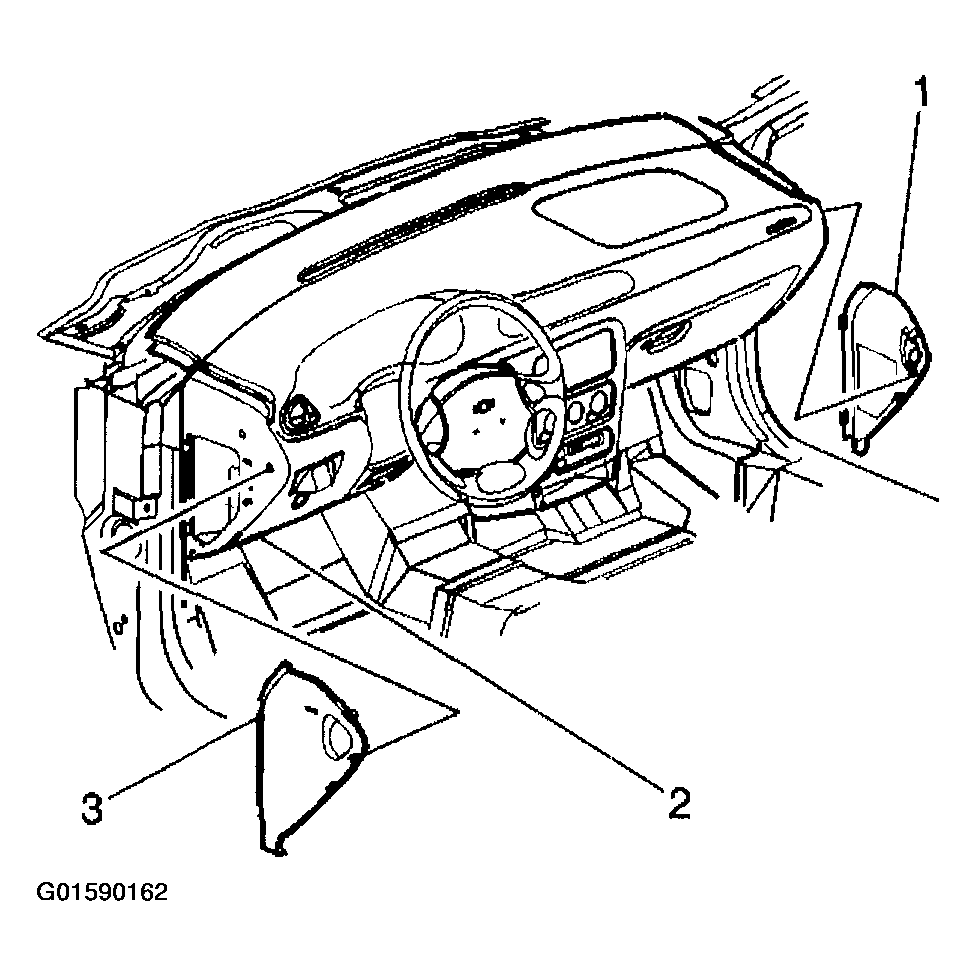

    Fig 1: Installing Outer Trim Cover From IP Carrier
    G01590162Courtesy of GENERAL MOTORS CORP.
