Removal Procedure

  1. Remove the upper windshield garnish moldings.

    Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR in Interior Trim.

  2. Gently, unsnap the grille (1) from the instrument panel (2) by lifting upward.

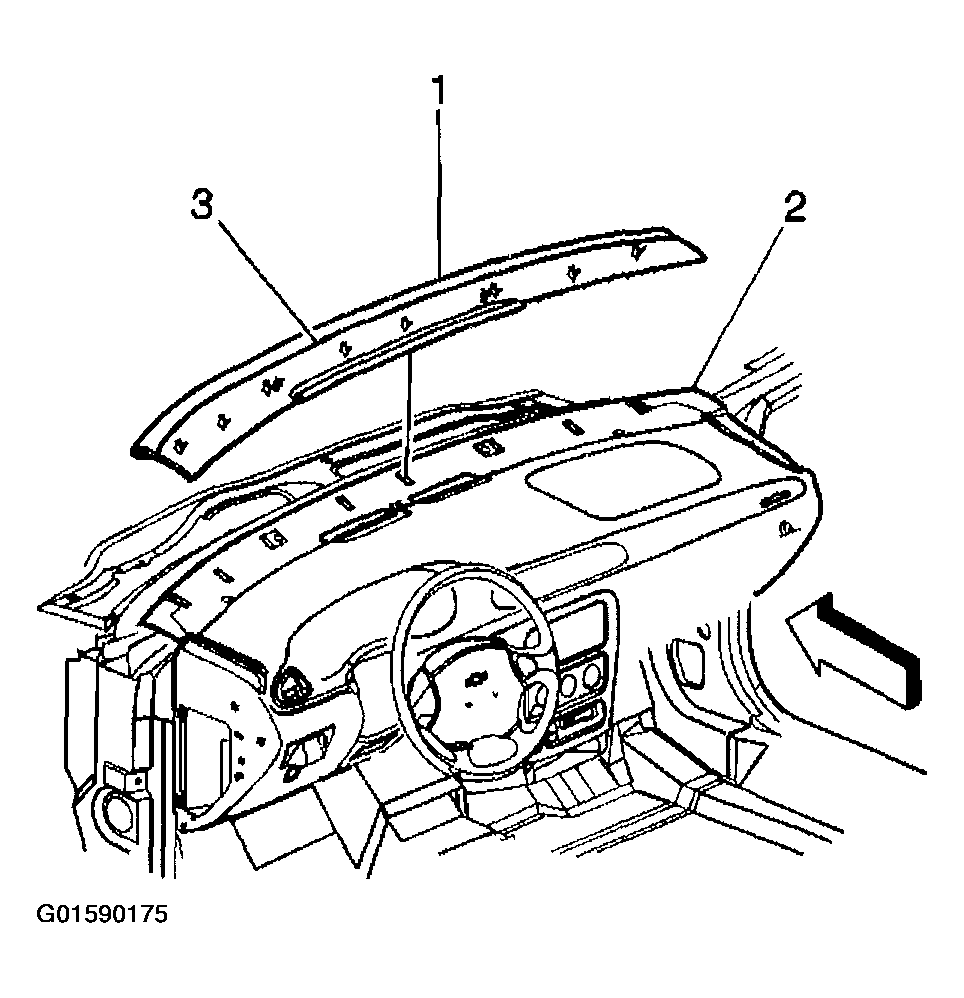

    Fig 1: Removing Defroster Grille From Instrument Panel
    G01590175Courtesy of GENERAL MOTORS CORP.
