Installation Procedure

  1. Install the grille (1) to the instrument panel (2) by pushing downward.
  2. Install the garnish moldings refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR in Interior Trim.

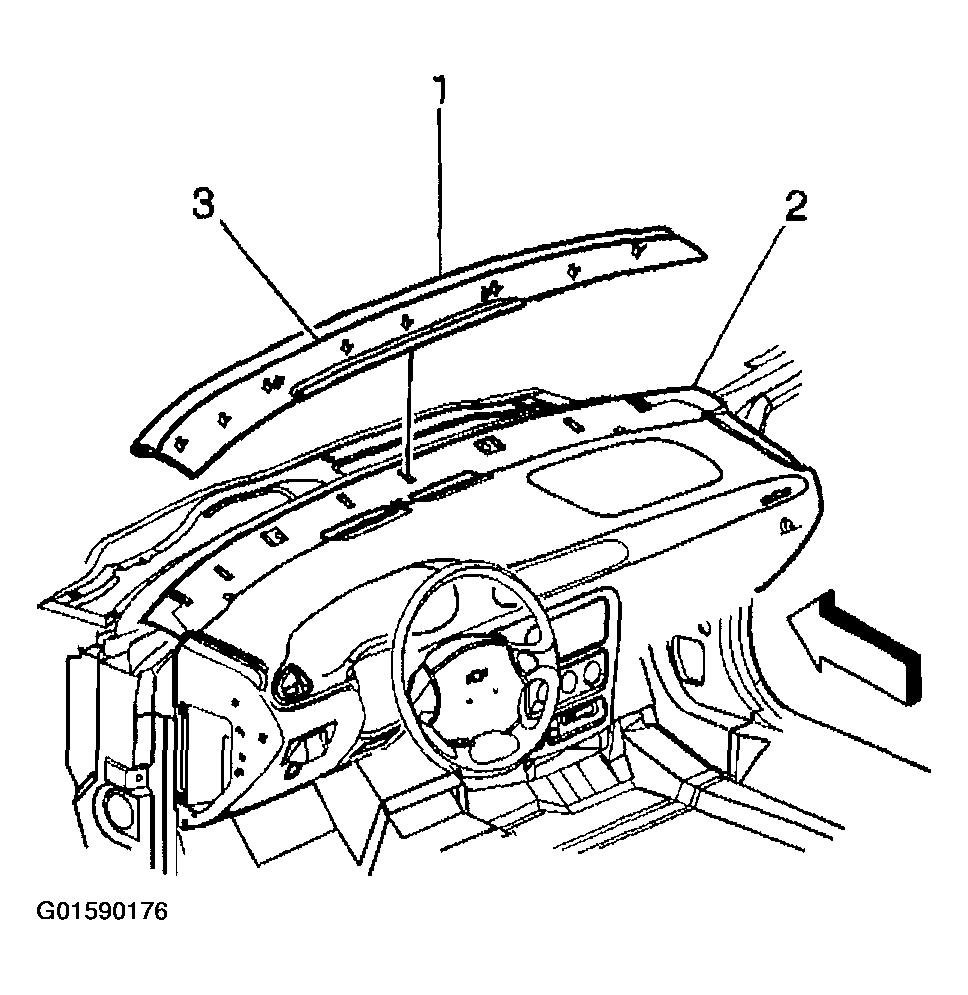

    Fig 1: Installing Defroster Grille To Instrument Panel
    G01590176Courtesy of GENERAL MOTORS CORP.
