Removal Procedure

  1. Fully extend the instrument panel cupholder.
  2. Remove the screws from the front of the I/P cup holder.
  3. Remove the driver side I/P outer trim cover.
  4. Remove the screw from the side of the I/P cup holder.
  5. Remove the I/P cupholder from the I/P carrier.

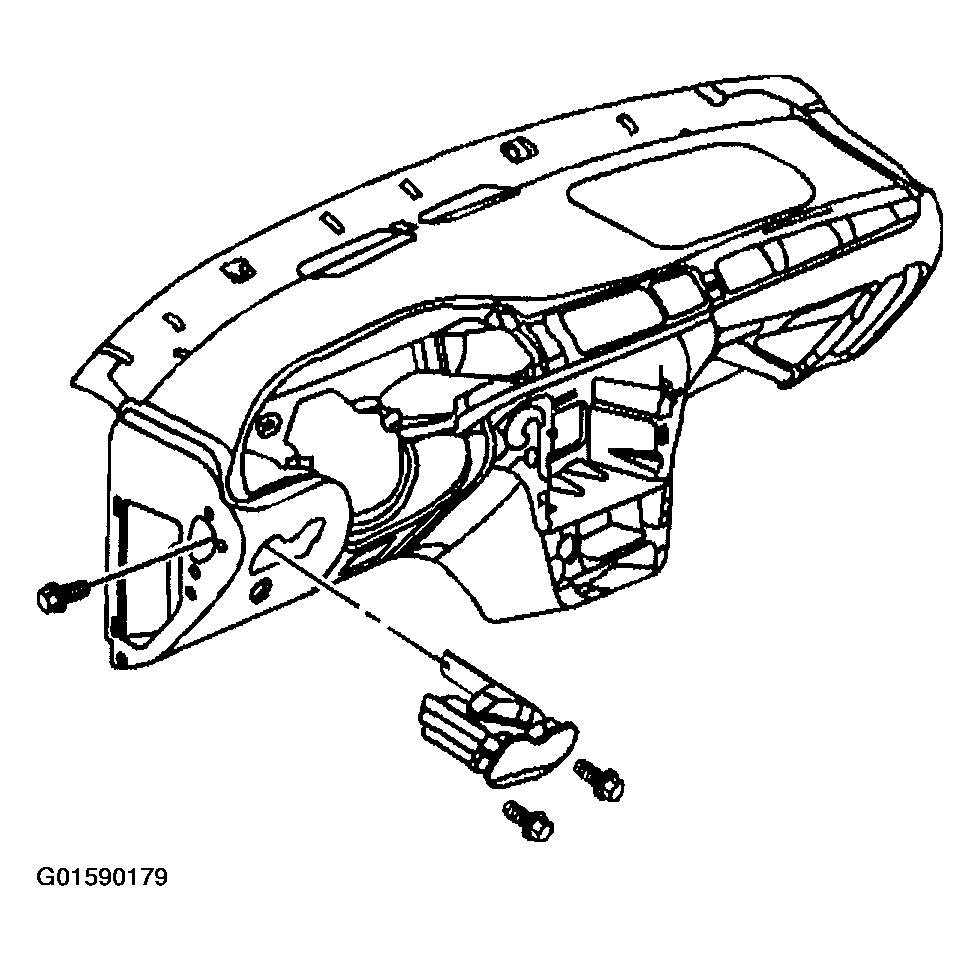

    Fig 1: Removing Cupholder
    G01590179Courtesy of GENERAL MOTORS CORP.
