Installation Procedure

  1. Install the I/P cupholder to the I/P carrier.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the I/P cup holder screws to the I/P cup holder.

    Tighten

    Tighten the screws to 2.3 N.m (20 lb in).

  3. Install the screw to the side of the I/P cupholder.

    Tighten

    Tighten the screw to 2.3 N.m (20 lb in).

  4. Install the driver side I/P outer trim cover.

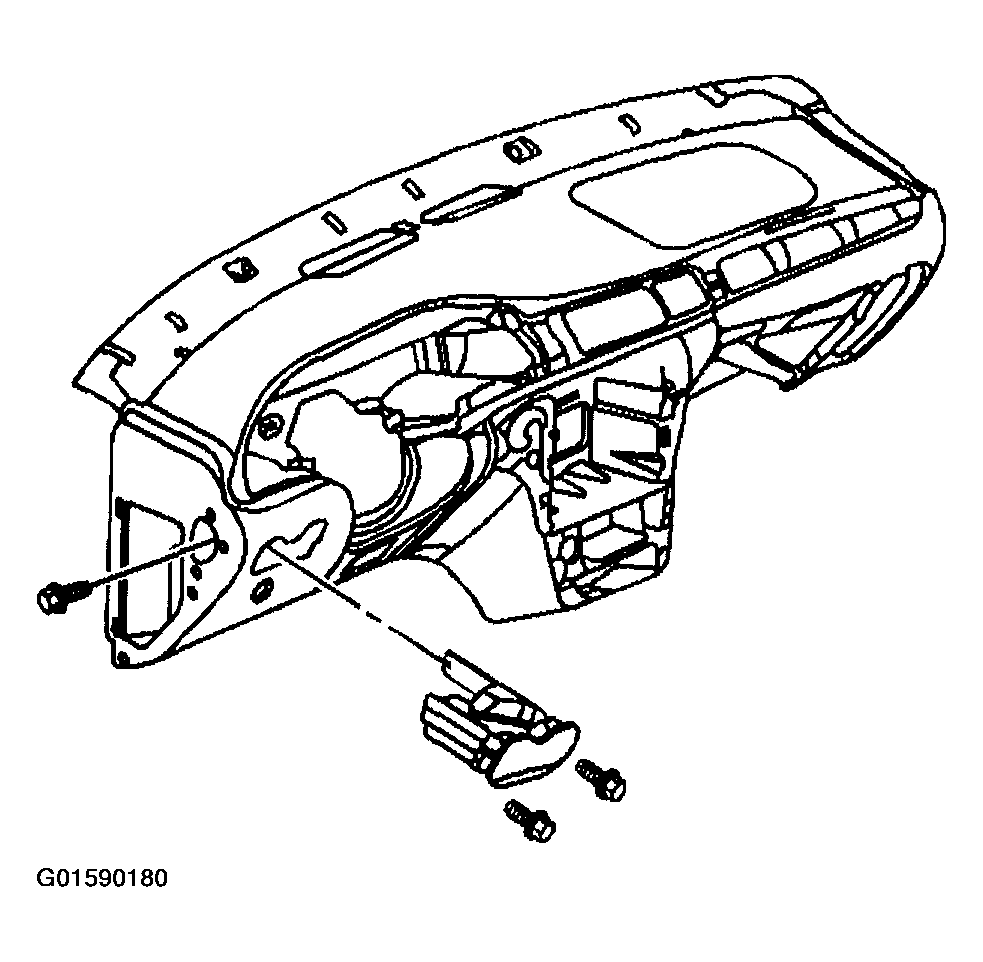

    Fig 1: Installing Cupholder
    G01590180Courtesy of GENERAL MOTORS CORP.
