Removal Procedure

  1. Remove the front seats from the vehicle. Refer to SEAT REPLACEMENT in Seats.
  2. Fold the console compartment up.
  3. Remove the rear cupholder from the center console.
  4. Remove the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE  .
  5. Remove the console screws from the center console.
  6. Remove the center console (2) from the vehicle.

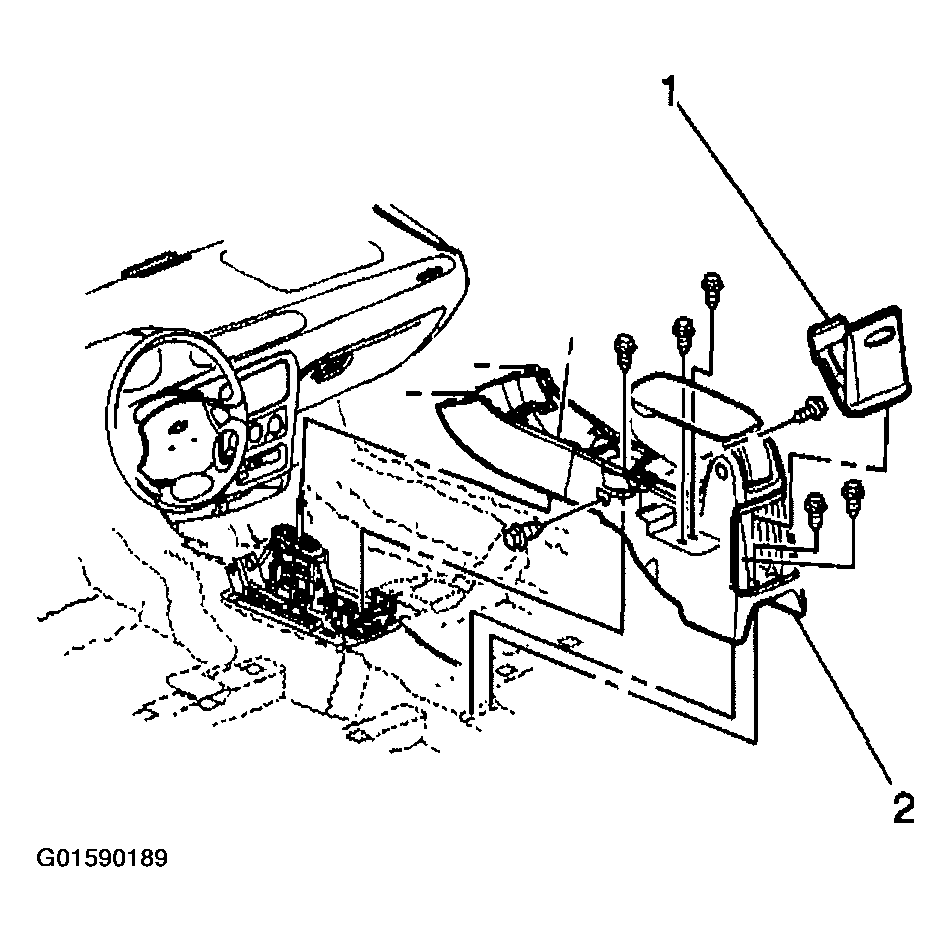

    Fig 1: Removing Center Console
    G01590189Courtesy of GENERAL MOTORS CORP.
