Installation Procedure

  1. Install the center console (2) into the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the console screws into the center console.

    Tighten

    Tighten the screws to 2.3 N.m (20 lb in).

  3. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE  .
  4. Install the rear cupholder to the center console.
  5. Install the front seats into the vehicle. Refer to SEAT REPLACEMENT in Seats.

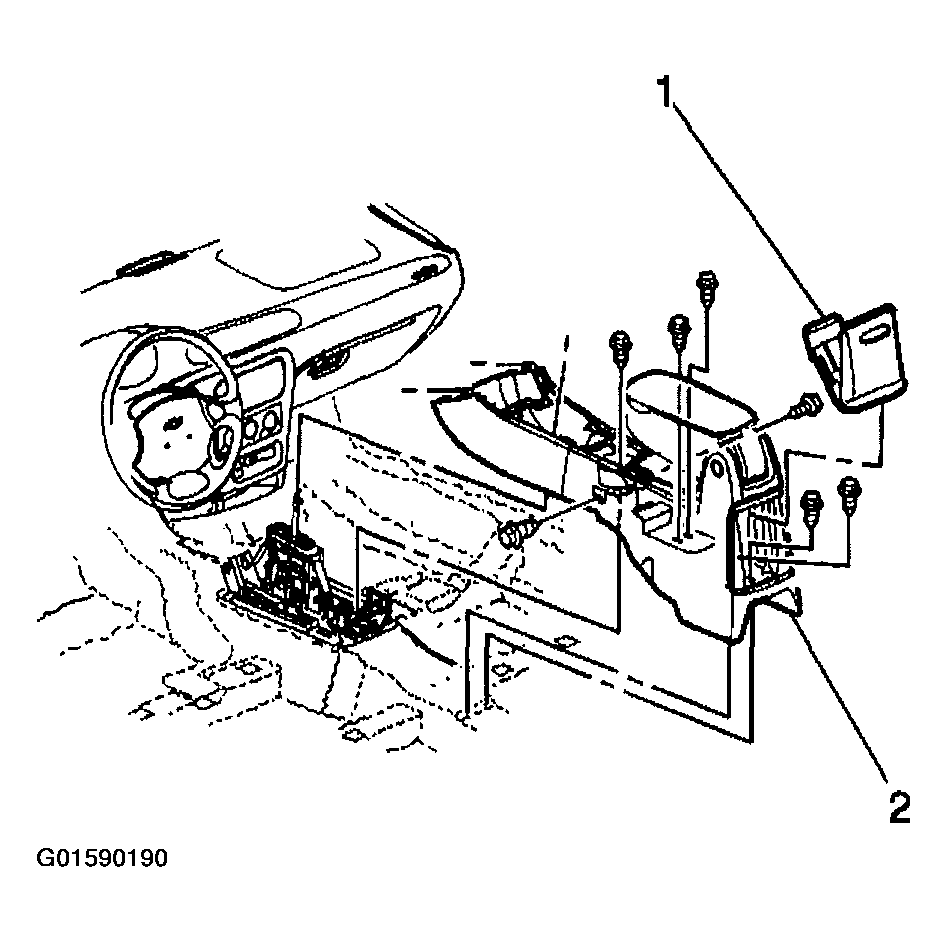

    Fig 1: Installing Center Console
    G01590190Courtesy of GENERAL MOTORS CORP.
