Removal Procedure

  1. Remove the push pin from right side of the sound insulator on the passenger side and remove from the I/P carrier.
  2. Remove the bolts from the left side of the sound insulator on the passenger side and remove from the I/P carrier.

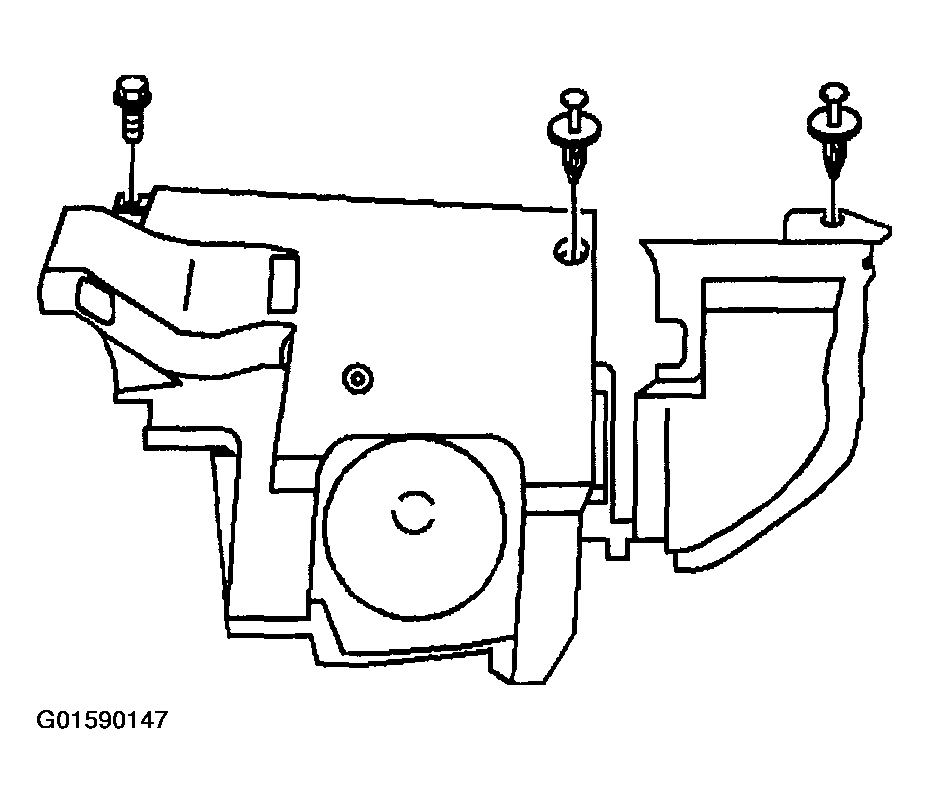

    Fig 1: Removing Left & Right Side Sound Insulators, Push Pin & Bolts
    G01590147Courtesy of GENERAL MOTORS CORP.
