Removal Procedure

  1. Remove the push pins from the left halve of the sound insulator on the drivers side and remove from the I/P carrier.
  2. Remove the bolts from the right halve of the sound insulator on the drivers side and remove from the I/P carrier

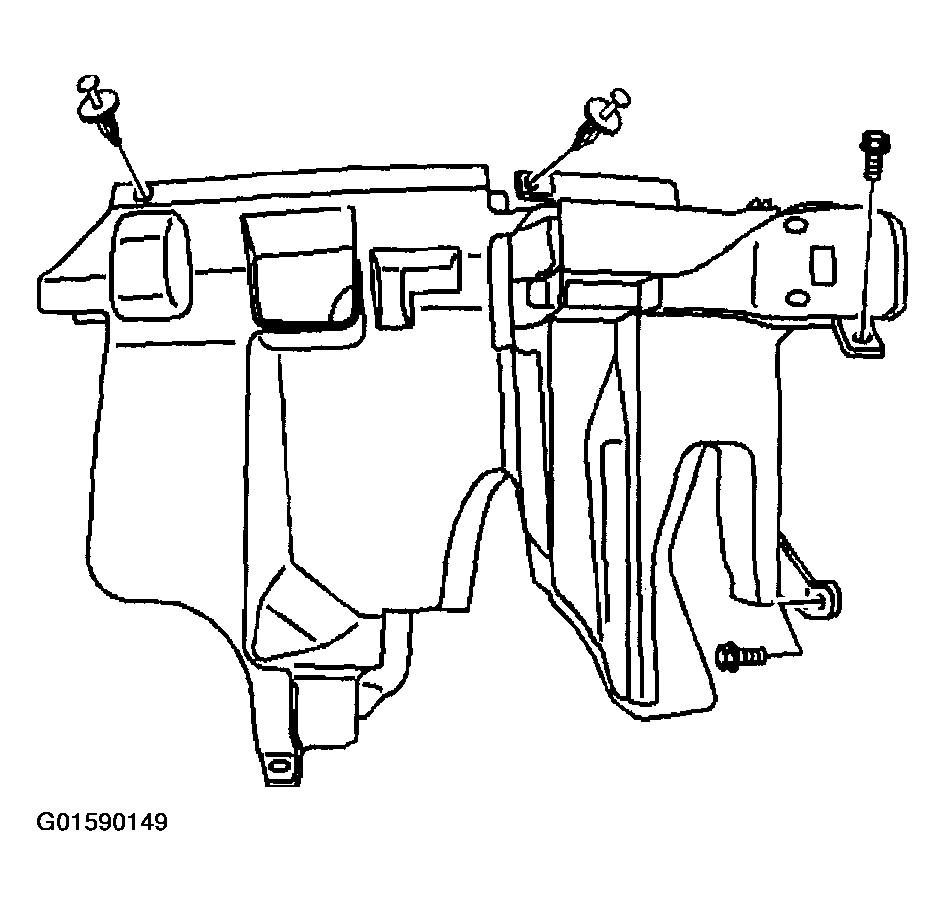

    Fig 1: Removing Left Closeout/Insulator Panel, Bolts & Push Pins
    G01590149Courtesy of GENERAL MOTORS CORP.
