Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the right halve of the sound insulator on the drivers side to the I/P carrier, and install the bolts to the sound insulator.

    Tighten

    Tighten the bolts to 2.3 N.m (20 lb in).

  2. Install the left halve of the sound insulator on the drivers side to the I/P carrier and install the push pin.

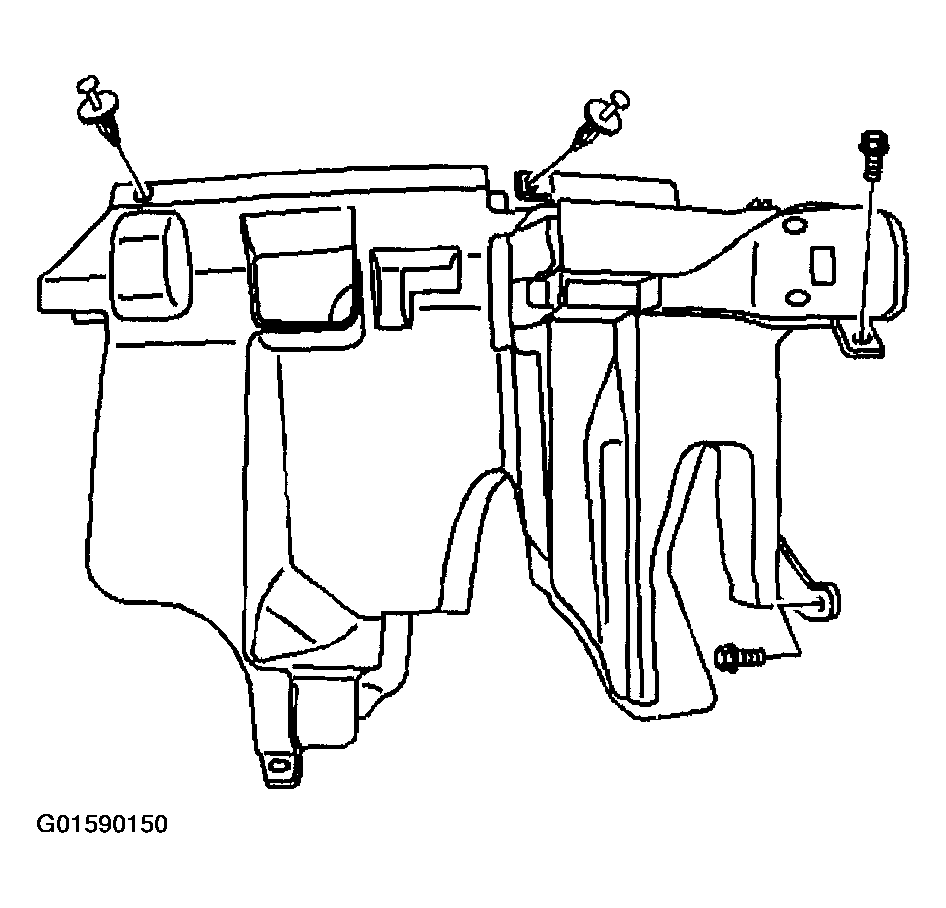

    Fig 1: Installing Left Closeout/Insulator Panel, Push Pins & Bolts
    G01590150Courtesy of GENERAL MOTORS CORP.
