Installation Procedure

  1. Position the lighter retainer (4) with the key to the slot into the IP accessory trim plate (1).
  2. Install the lighter retainer (4) pressing into place until fully seated.
  3. Connect the electrical connector to lighter housing (3).
  4. Align the lighter housing (3) to the splines on the lighter retainer (4) and press into place until fully seated.
  5. Install the lighter fuse.
  6. Install the lighter element (2).
  7. Inspect the lighter for proper operation.

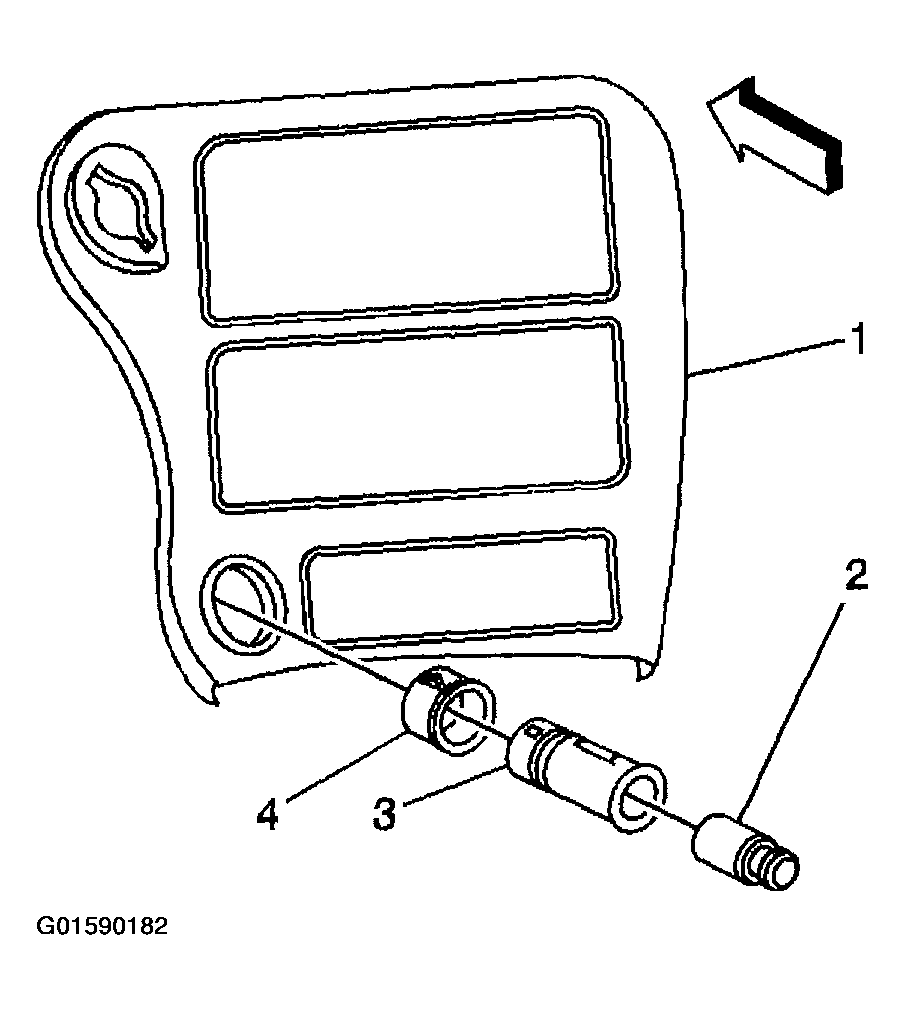

    Fig 1: Installing Cigar Lighter
    G01590182Courtesy of GENERAL MOTORS CORP.
