Tachometer Inaccurate Or Inoperative

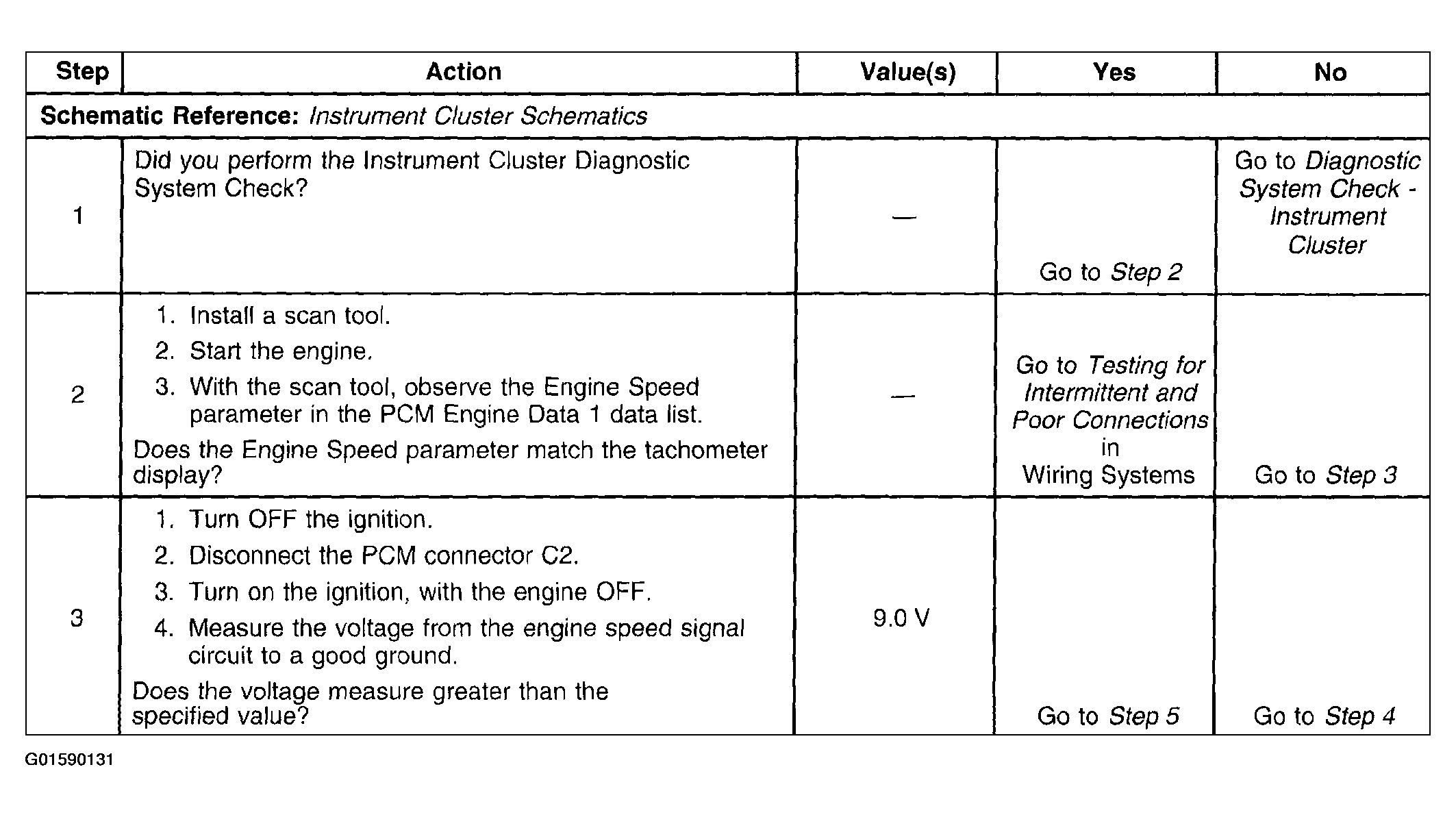

Fig 1: Tachometer Inaccurate Or Inoperative Diagnostic Procedure (1 Of 2)
G01590131Courtesy of GENERAL MOTORS CORP.

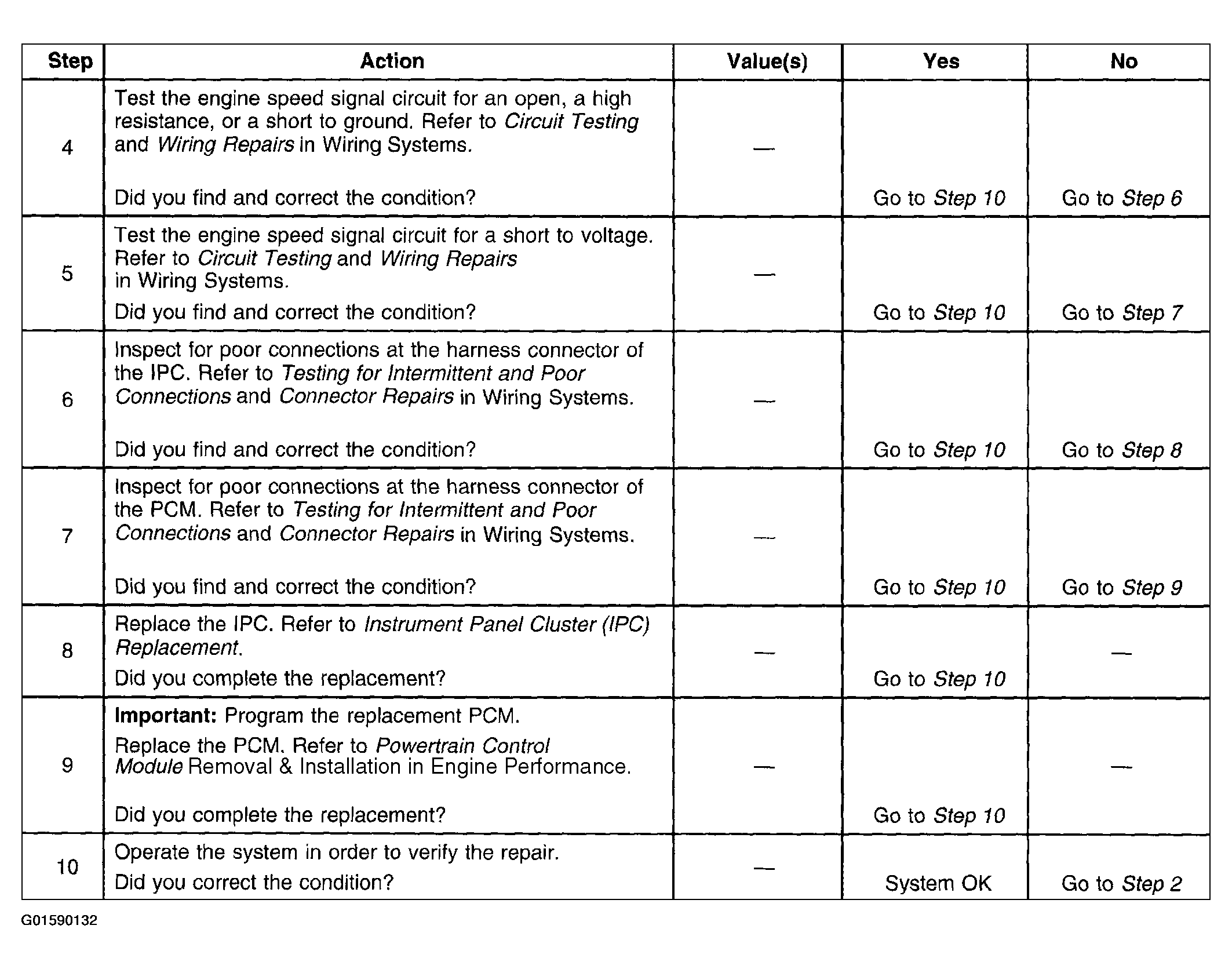

Fig 2: Tachometer Inaccurate Or Inoperative Diagnostic Procedure (2 Of 2)
G01590132Courtesy of GENERAL MOTORS CORP.
