Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. This step tests for a malfunctioning component that is interrupting the vehicle speed signal circuit.
  2. This step tests for the proper voltage from the IPC.

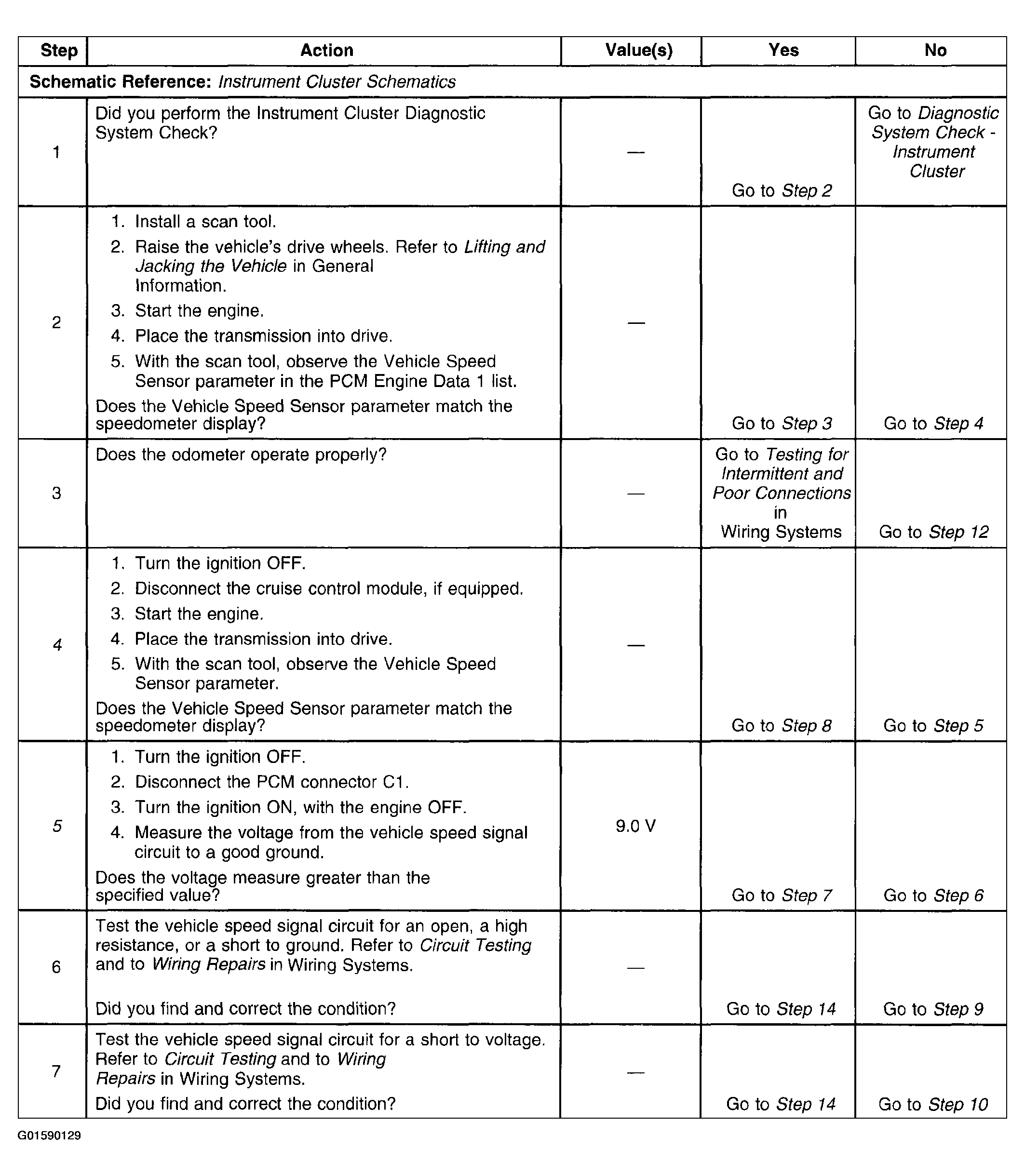

    Fig 1: Speedometer And/Or Odometer Inaccurate Or Inoperative Diagnostic Procedure (1 Of 2)
    G01590129Courtesy of GENERAL MOTORS CORP.

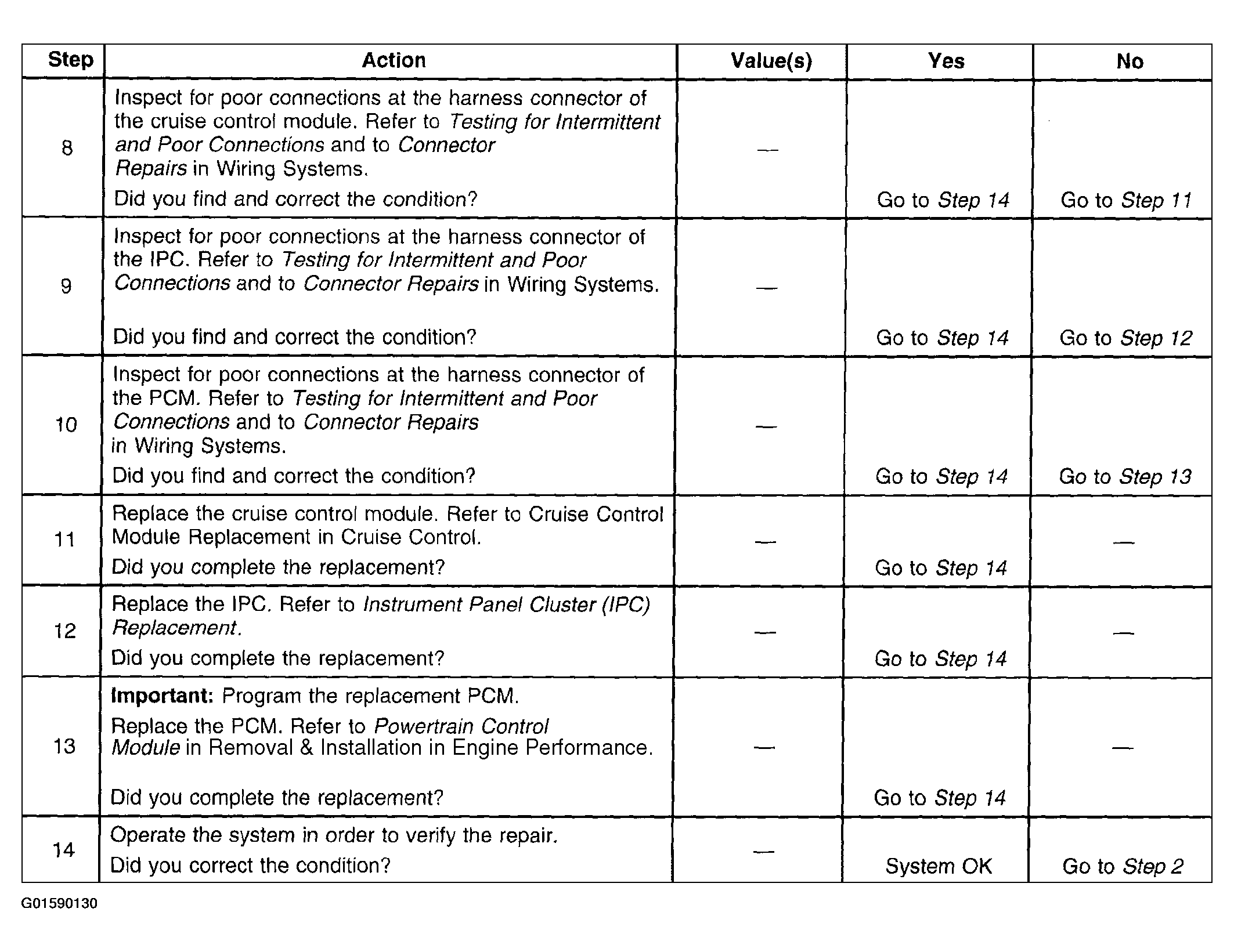

Fig 2: Speedometer And/Or Odometer Inaccurate Or Inoperative Diagnostic Procedure (2 Of 2)
G01590130Courtesy of GENERAL MOTORS CORP.
