Engine Oil Pressure Indicator Always On

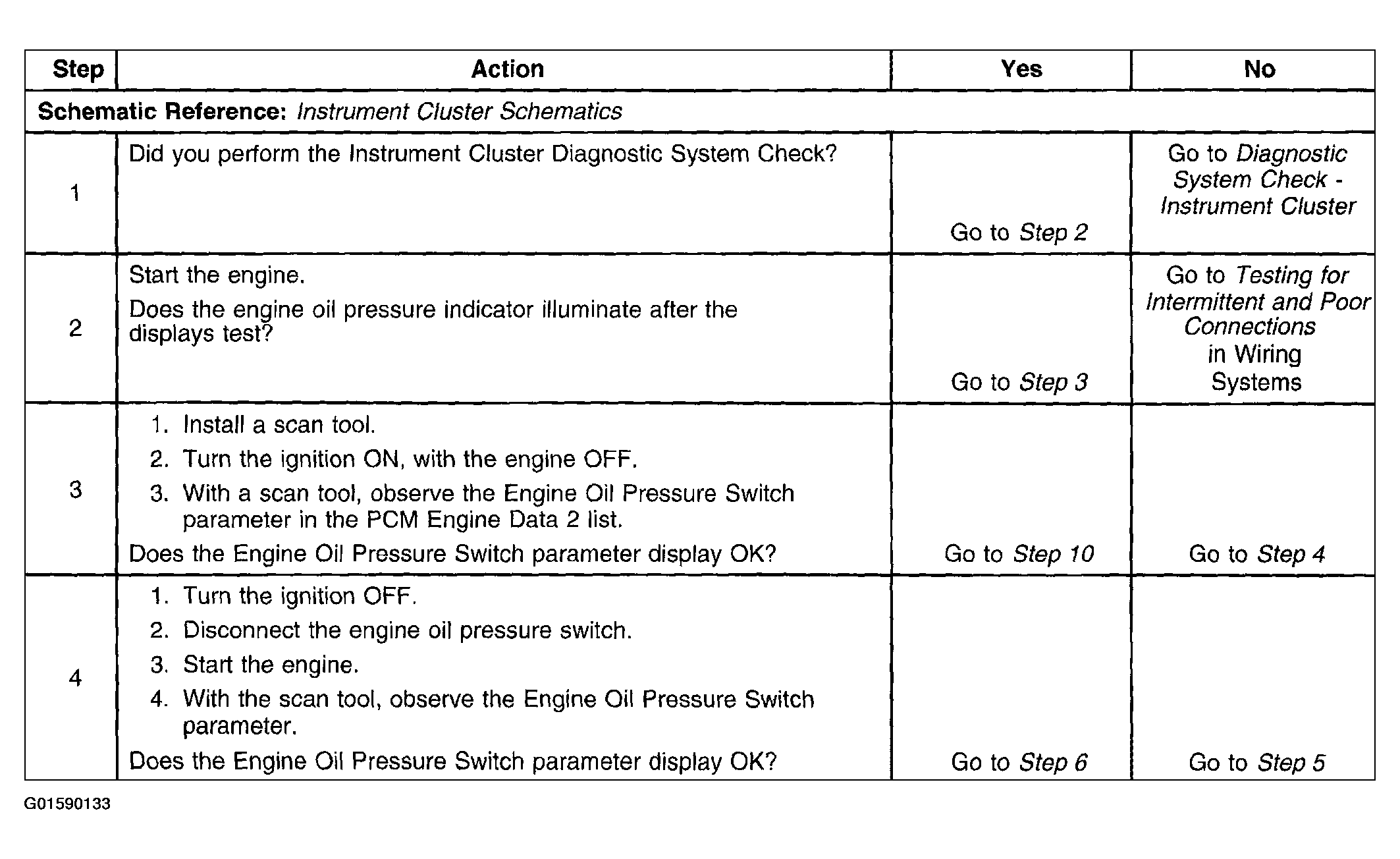

Fig 1: Engine Oil Pressure Indicator Always On Diagnostic Procedure (1 Of 2)
G01590133Courtesy of GENERAL MOTORS CORP.

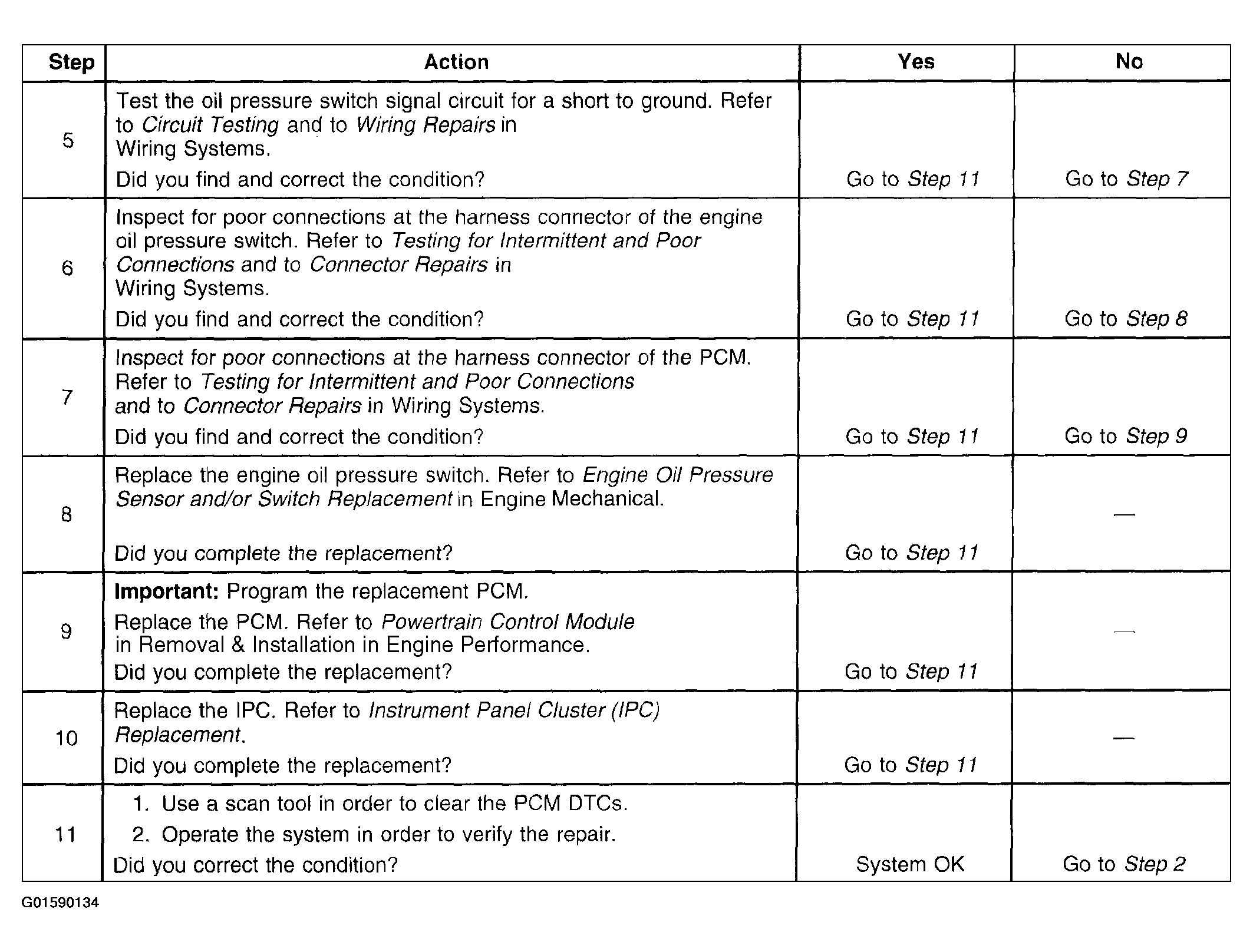

Fig 2: Engine Oil Pressure Indicator Always On Diagnostic Procedure (2 Of 2)
G01590134Courtesy of GENERAL MOTORS CORP.
