DTC U2000, U2001, U2002, U2003, U2004, U2005, U2006, U2007: IPC On The SPI Serial Data Circuit
>>
Conditions for Clearing the DTC
Conditions for Clearing the DTC
The current DTC clears on the next malfunction free ignition cycle.
The history DTC clears after 100 malfunction free ignition cycles.
The BCM receives a clear DTC request from the scan tool.

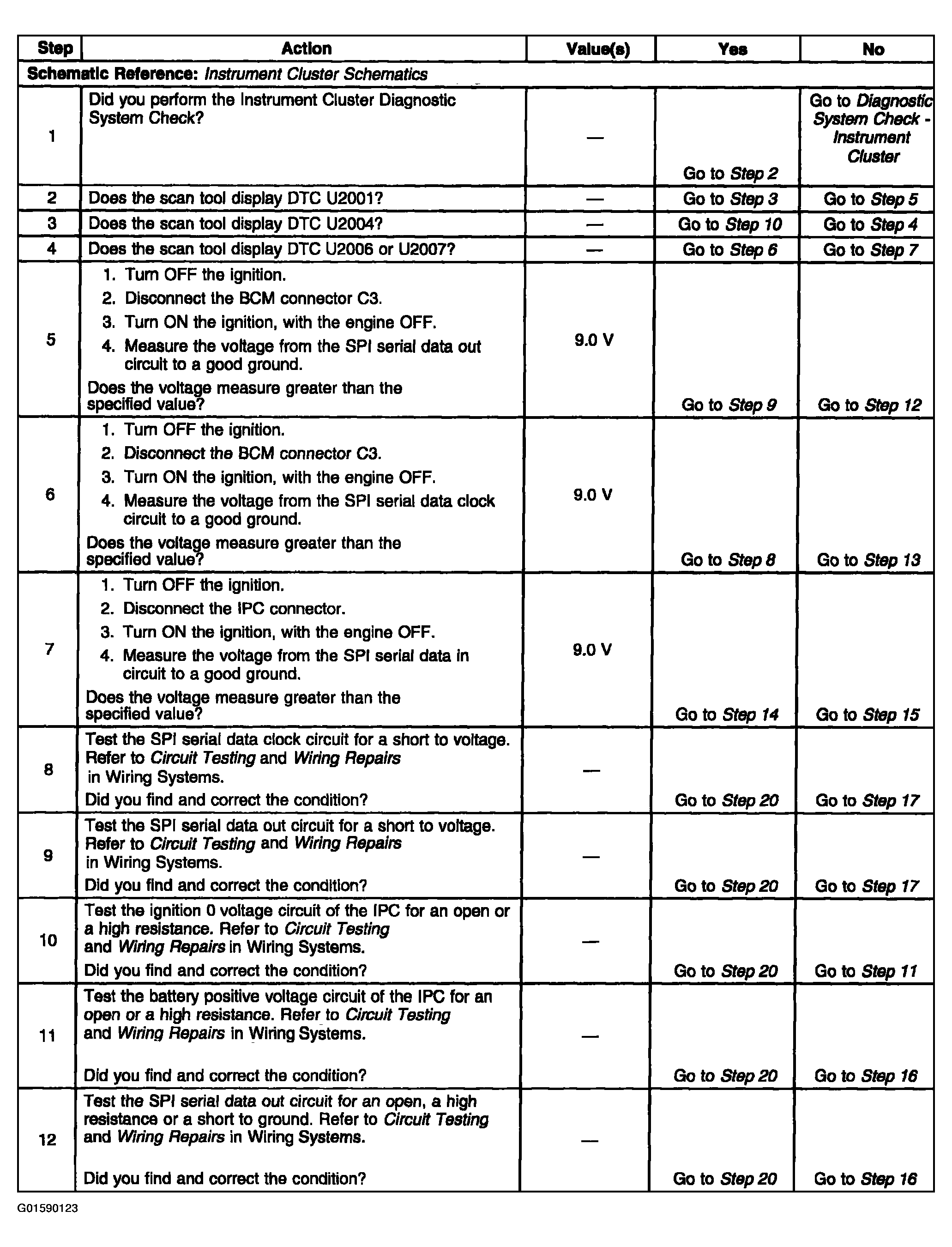

Fig 1: DTC U2000-U2007 Diagnostic Procedure (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

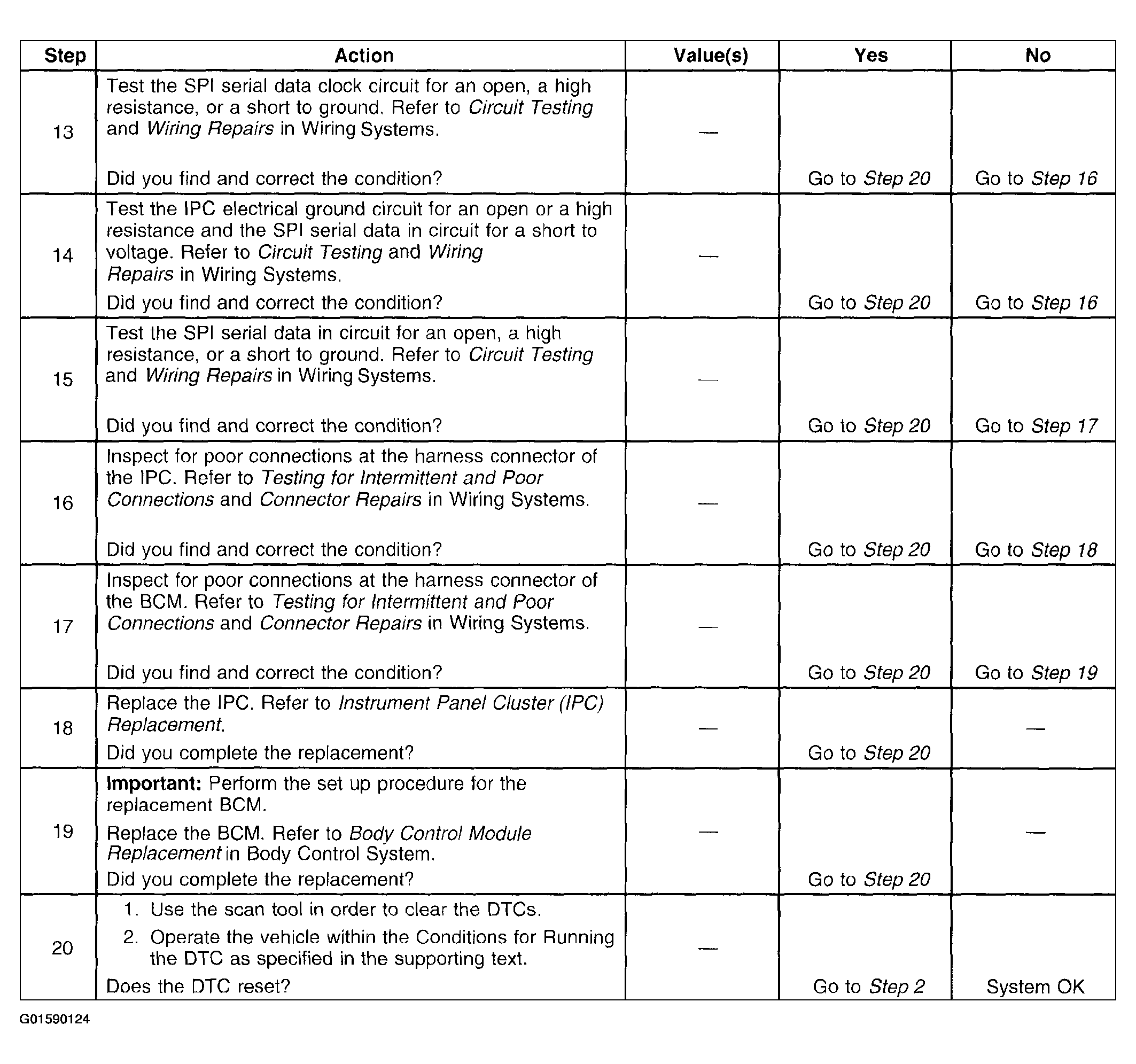

Fig 2: DTC U2000-U2007 Diagnostic Procedure (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
