Instrument Panel, Gages, and Console Connector End Views

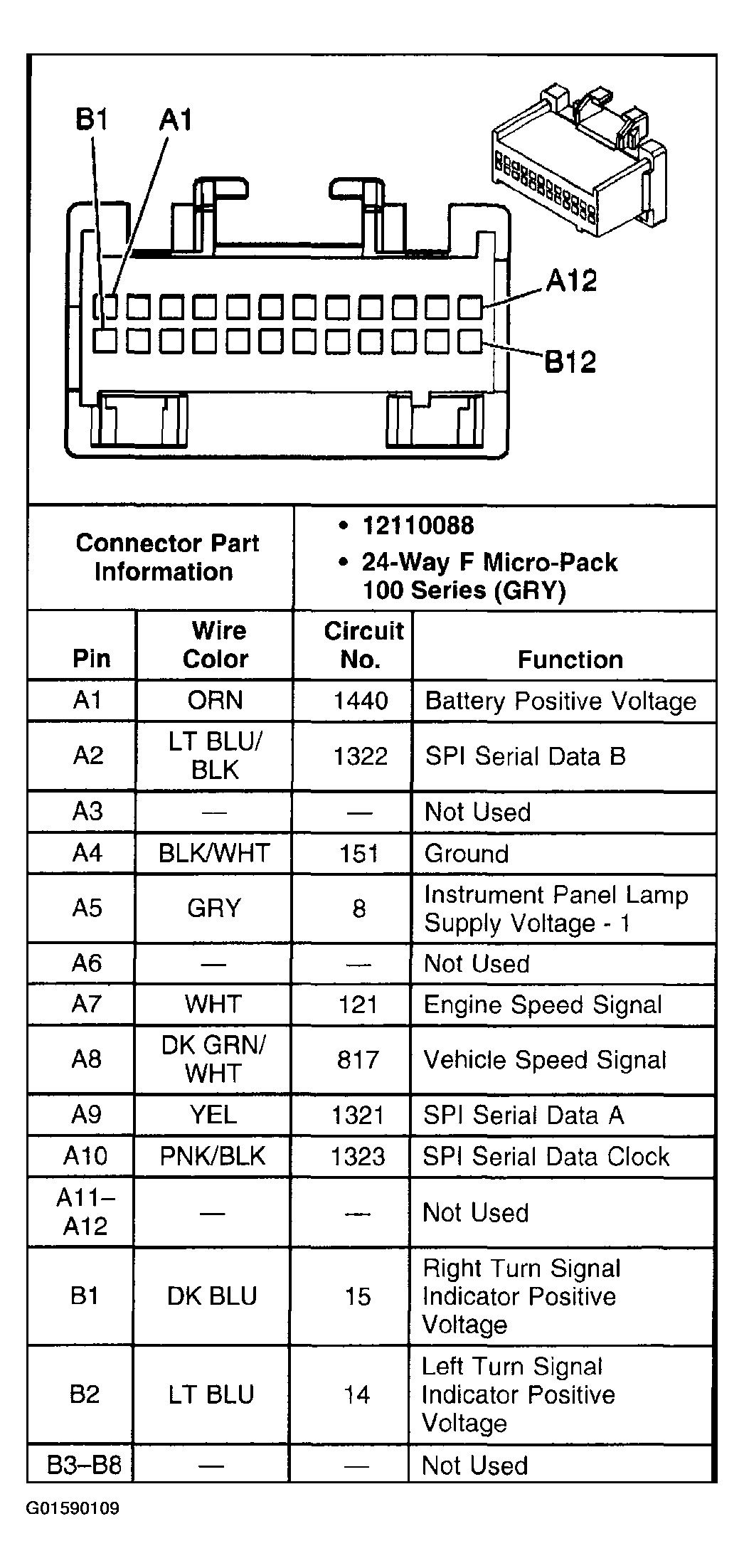

Fig 1: Instrument Panel Cluster (1 Of 2)
G01590109Courtesy of GENERAL MOTORS CORP.

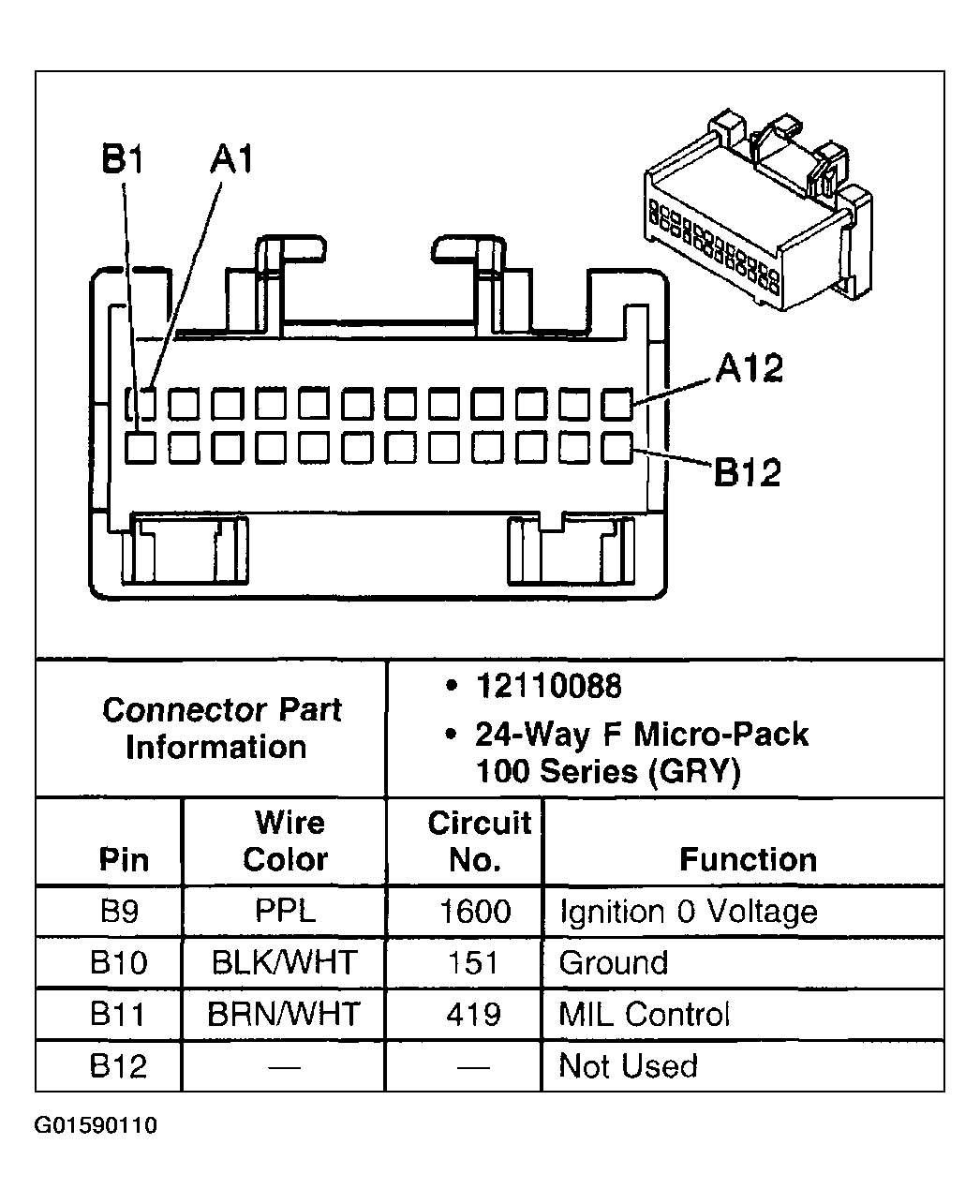

Fig 2: Instrument Panel Cluster (2 Of 2)
G01590110Courtesy of GENERAL MOTORS CORP.
