Instrument Cluster Schematics

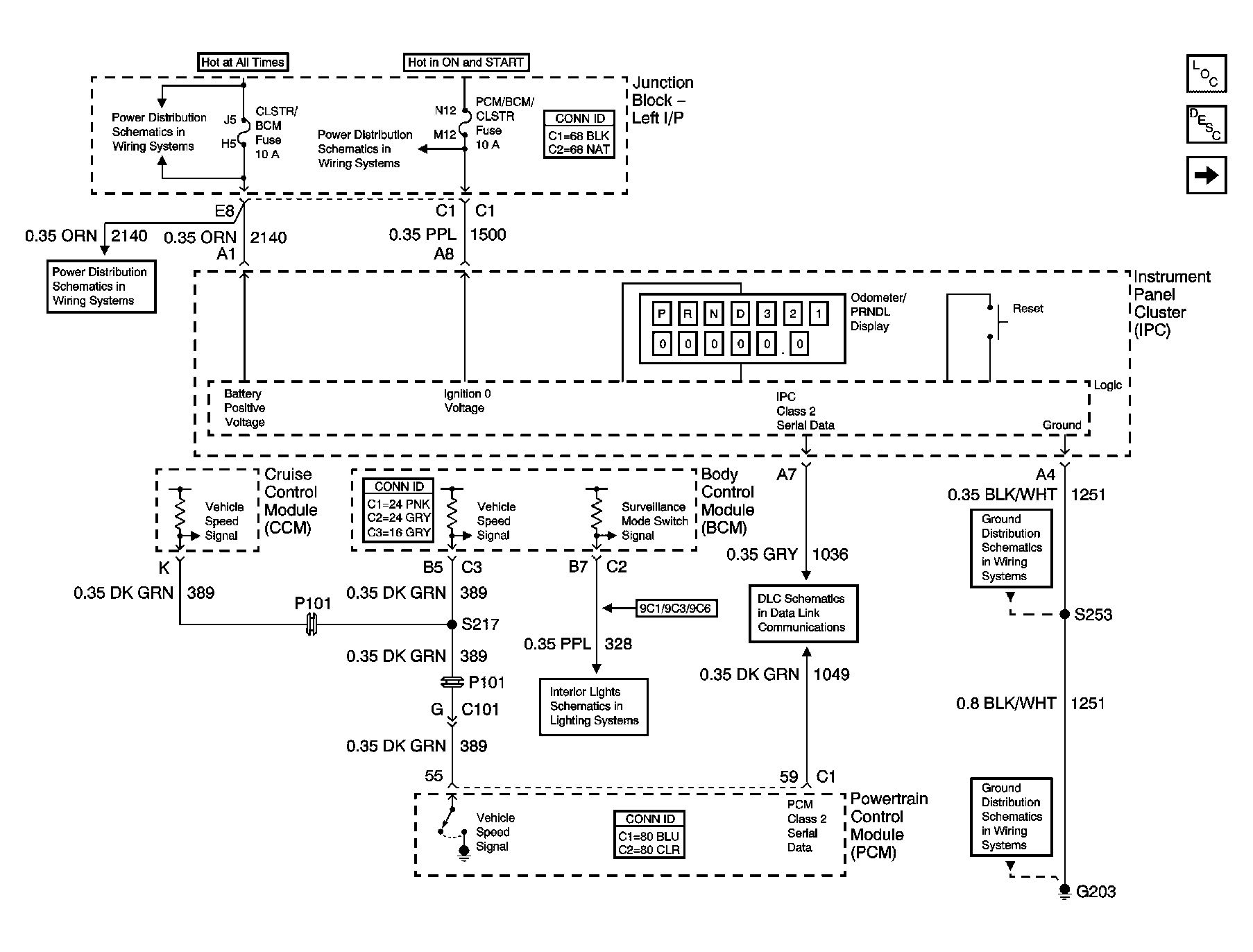

Fig 1: Ground, Odometer/PRNDL, Power & VSS Schematic
GM808820Courtesy of GENERAL MOTORS CORP.

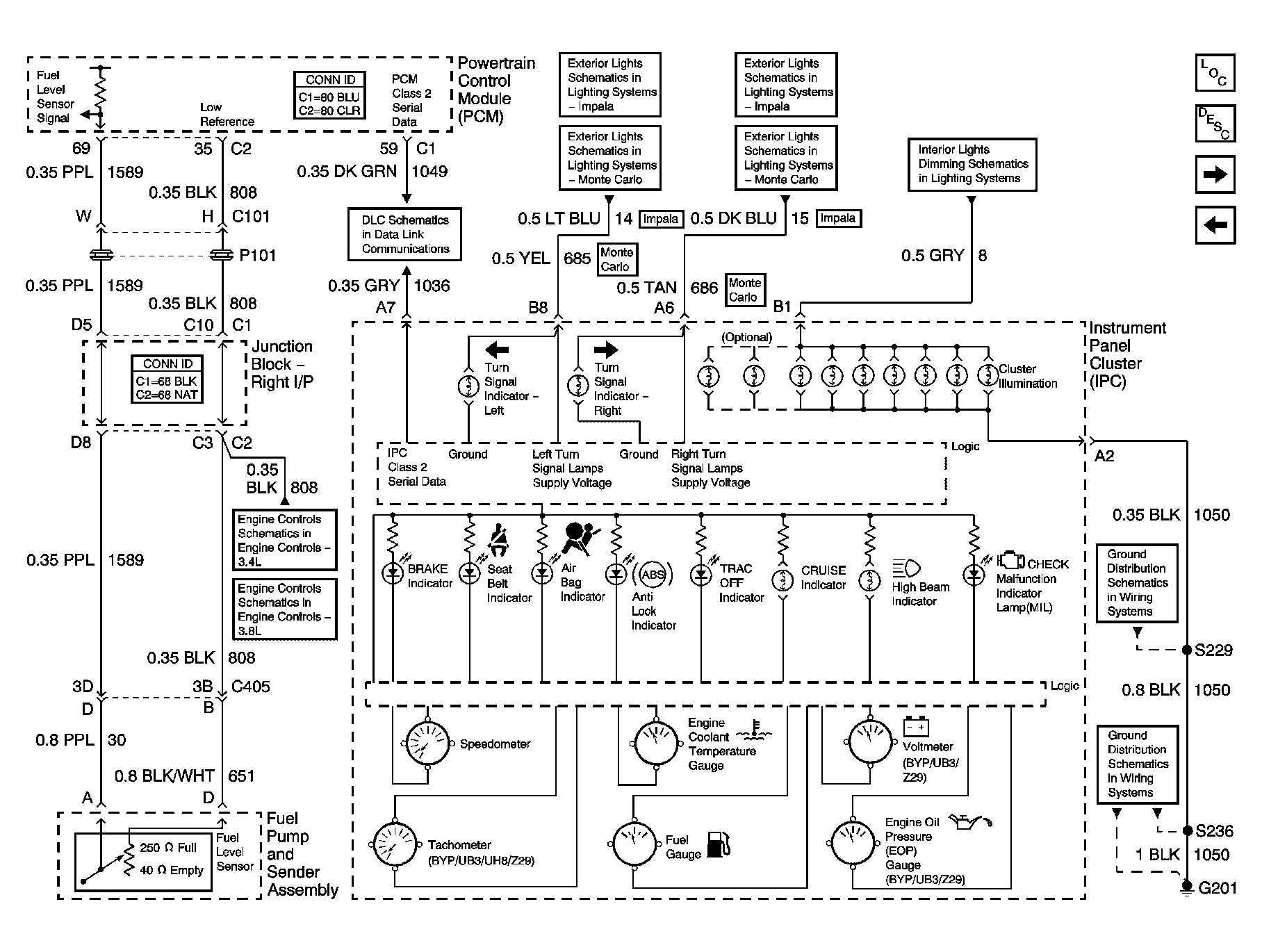

Fig 2: Gages, Illumination & Indicators Schematic
GM680780Courtesy of GENERAL MOTORS CORP.

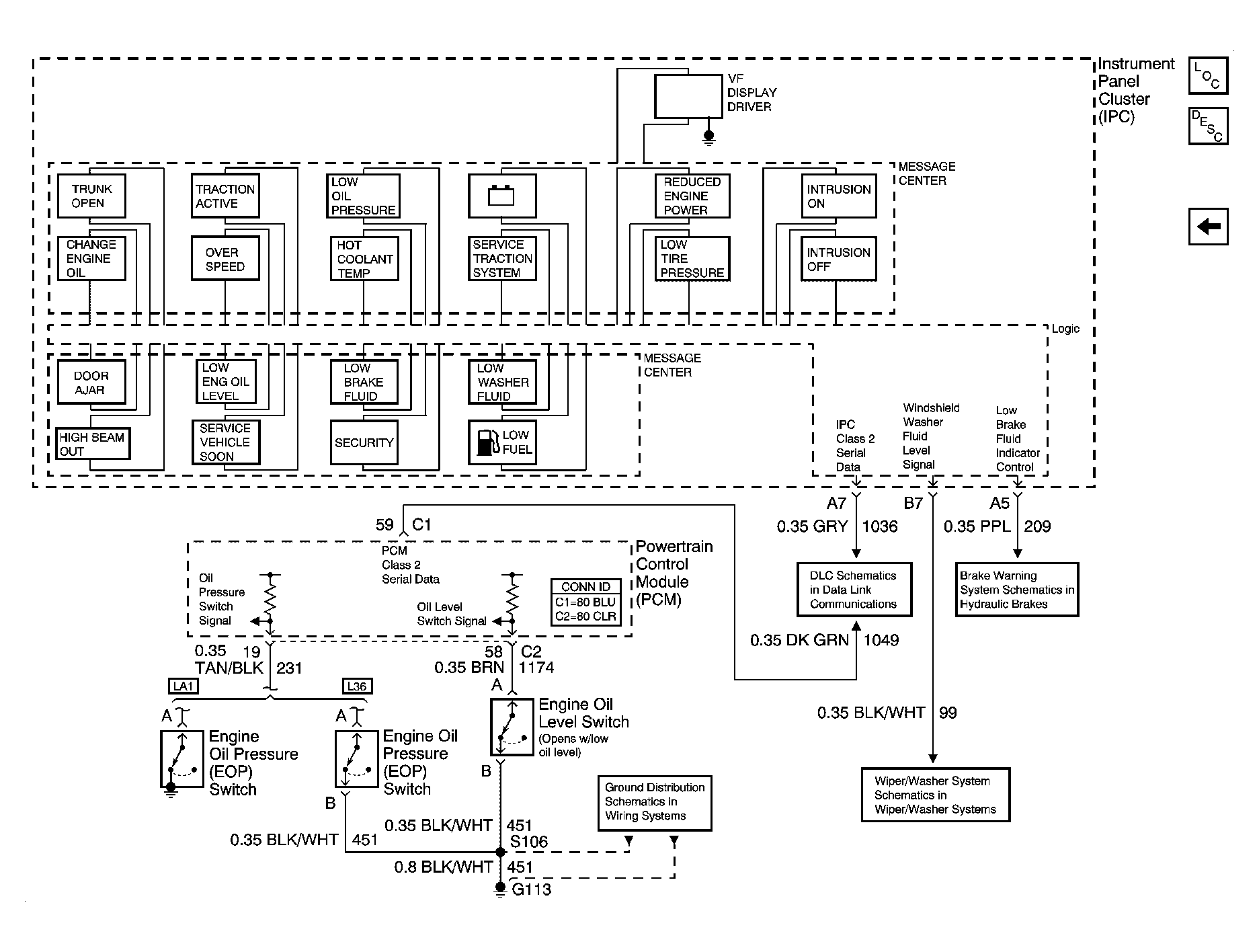

Fig 3: MESSAGE CENTER Schematic
GM885146Courtesy of GENERAL MOTORS CORP.
